Low-cost Dual-channel Input Digital Double Clamp Phase Voltammeter Calibrator

Wuhan GDZX Power Equipment Co., Ltd.
  • After-sales Service：Provide lifelong after-sales service
  • Warranty：1 Year
  • Ambient temperature：(23+,-5) centigrade
  • Ambient humidity：(45~75)% RH
  • Measured signal frequency：(50+,-0.2) Hz
  • Size：meter:192*95*55mm; clamp: 140*42*20mm

Base Info

  • Model NO.：SMG2000E
  • Weight：meter:280g; measuring clamps: 2*200g
  • Storage temperature：-10~50centigrade
  • Transport Package：Carton,Wooden Case
  • Specification：With the change of technical scheme
  • Trademark：GDZX
  • Origin：Hubei
  • Production Capacity：500 Pieces,Month

Description

Low-cost Dual-channel Input Digital Double Clamp Phase Voltammeter Calibrator    SMG2000E Double Clamp Digital Phase Meter is special designed for testing voltage, current and phase onsite, it is in high-precision, low price, portable hand-held, dual-channel input measuring product. It's easy to measure the phase between U-U, I-I and U-I, identify the inductive circuit ,capacitive circuit and the phase sequence of three-phase voltage, detect the wiring group of transformer, test the secondary circuit and bus differential protection system, read the phase relationship among the CT groups of a differential protection system, and check if the watthour meter was correctly wired.

Low-cost Dual-channel Input Digital Double Clamp Phase Voltammeter CalibratorLow-cost Dual-channel Input Digital Double Clamp Phase Voltammeter Calibrator

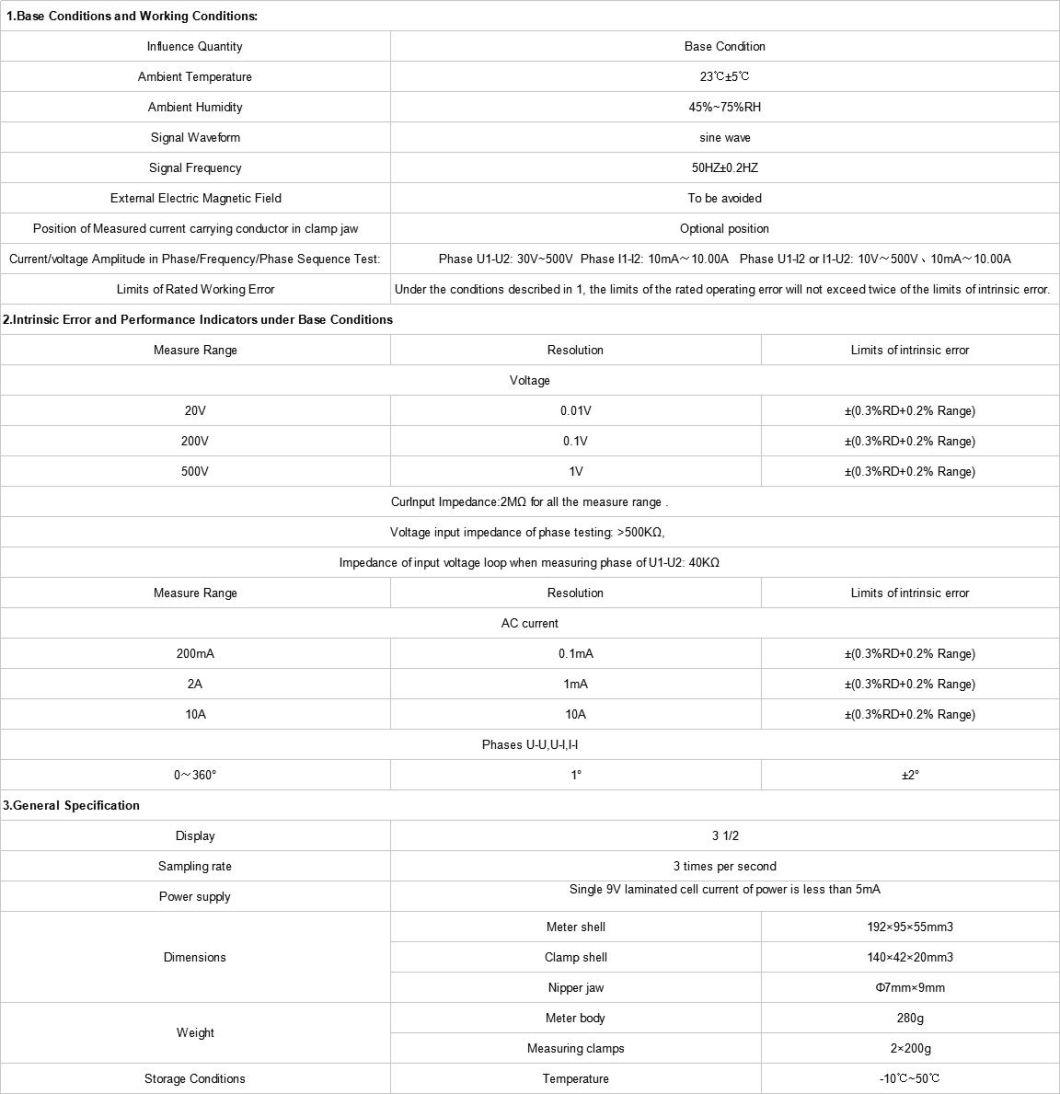

Technical Indicators
1. Reference working conditions
(a) Ambient temperature: (23 ± 5) ºC
(b) Ambient humidity: (75% - 75%)
(c) Waveform of measured signal: sine wave β= zero point zero two
(d) Measured signal frequency: (50 ± 0.2) Hz
(e) Position of the current carrying wire to be measured in the jaw: arbitrary
(f) Amplitude range of measured signal during phase measurement: 100 ~ 220V, 0.5A ~ 1.5A
(g) Electromagnetic field interference of external reference frequency: it should be avoided.
Low-cost Dual-channel Input Digital Double Clamp Phase Voltammeter Calibrator

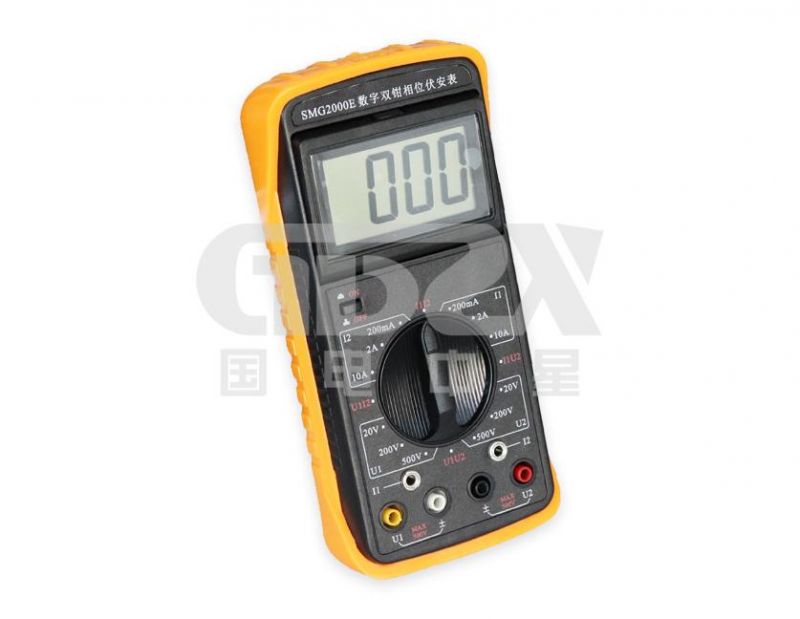

Product picture
Low-cost Dual-channel Input Digital Double Clamp Phase Voltammeter Calibrator

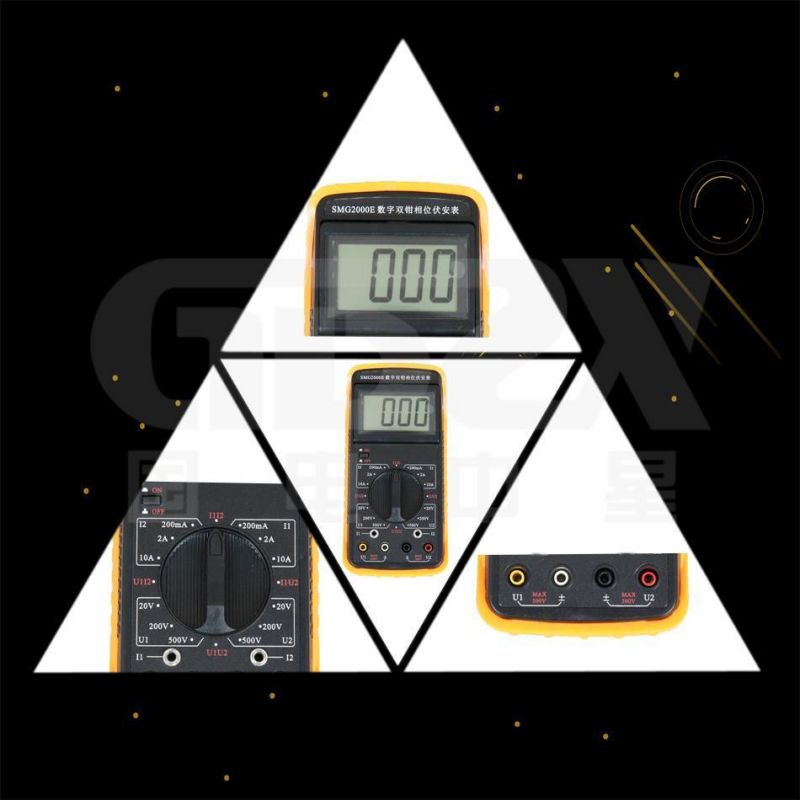

Device display

 Low-cost Dual-channel Input Digital Double Clamp Phase Voltammeter Calibrator Low-cost Dual-channel Input Digital Double Clamp Phase Voltammeter Calibrator
About GDZX
     Wuhan GDZX Power Equipment Co.,Ltd. is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.Low-cost Dual-channel Input Digital Double Clamp Phase Voltammeter CalibratorLow-cost Dual-channel Input Digital Double Clamp Phase Voltammeter CalibratorLow-cost Dual-channel Input Digital Double Clamp Phase Voltammeter CalibratorLow-cost Dual-channel Input Digital Double Clamp Phase Voltammeter Calibrator
Shipping and packaging Low-cost Dual-channel Input Digital Double Clamp Phase Voltammeter CalibratorFeatures

1. Ingenious structure, easy to operate, hand held structure

2. no need to disconnect circuit or change measurement range under 10mA-10A, 3V-500v when test phase

3. use high contrast LCD, characters can be 25mm, the screen angle can be 70°to obtain the best visual effects

4. the function and layout of the switch are reasonable, rotating can read the measuring voltage, current and phase.

5. High resolution, with new type patent current clamp, current resolution up to 0.1mA; voltage resolution up to 0.1V.

6. Low power consumption, with the function of testing the voltage of battery
