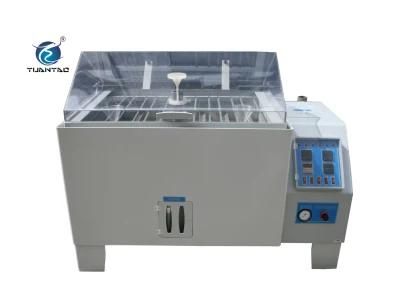

Laboratory Used Corrosion Salt Spray Test Chamber

Guangdong Yuanyao Test Equipment Co., Ltd.
  • Max Diameter of Workpiece：700mm
  • Mass Scope of Workpiece：<900kg
  • Type：Salt Spray Testing Machine
  • Maxcapacity：<1000KN
  • Accuracy Grade：0.5
  • Load Way：Electronic Load

Base Info

  • Model NO.：YSST-600
  • Loading Method：Dynamic Load
  • Display：Digital
  • Control：Controller
  • Weight：100-500Kg
  • Power Source：AC220V
  • Oil Cylinder Position：N,a
  • Inner Size(W*H*D)：1200*500*1000mm
  • External Size(W*H*D)：1700*950*1150mm
  • Volume：600 Liters
  • Inside Chamber Temp. Range：Rt--50c, +,-0.5 C
  • Air Saturated Barrel Temp. Range：Rt--63c, +,-0.5 C
  • Salt Water Tank Temp. Range：Rt.-- 50c, +,-0.5c
  • Exteriol/Inner Material：P.V.C&P.P
  • Color：Ivory or Other
  • Interior Chamber Material：SUS#304 Stainless Steel Plate
  • Exterior Chamber Material：Stainless Steel Plate + Powder Coated
  • Transport Package：Strong Wood Carton
  • Specification：CE, SGS, TUV certified.
  • Trademark：Yuanyao
  • Origin：Dongguan, China(Mainland)
  • HS Code：9024800000
  • Production Capacity：100 Sets,Month

Description

SpecificationModelYSST-108YSST-270Internal Dim.WHD(mm)600*400*450900*500*600 External Dim.WHD(mm)1250*1050*9101550*1210*1060Temp. Range ChamberRoom temp.-- 50ºC,±0.5ºCAirRoom temp.--63ºC,±0.5ºC SaltRoom temp.--50ºC,±0.5ºCSaturated Air Pressure(Kg/m)0.8--2.0Spray Volume(m/80cm/hr)0.5--3.0PHSalt6.5--7.2Cu(CH COOH)3.0--3.2Exter,/Inter.MaterialP.V.C & P.PSystemsSalt Spray VeicleAir+acid(base)liquid Heating SUS#304 & #316stainless steel heater+taflonControllerHydrometer,salinomerer,fog collector,glassbarOther ComponentsDigital electronic control+S.S.RSavety DevicesOverheating prevention circult-breaker,dehydration and
overheating prevention mechanism,breakdown indicator lightPower Source[K.W]AC 1Ψ 220V  60/50Hz1.11.53.5Comply with ASTM B-117, B-287,B-380,JIS D-0201, D-0205, H-8681, Z-2371, K-5400

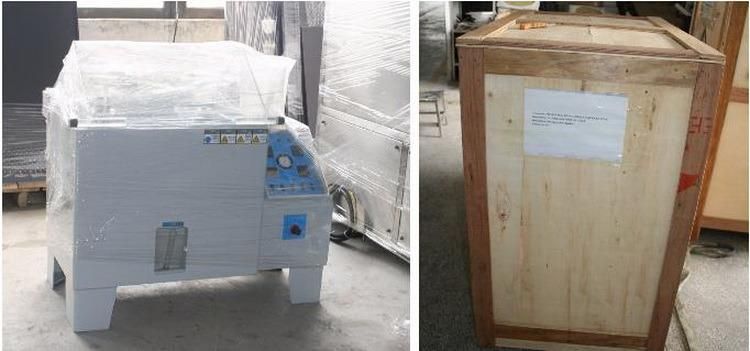

Package & Delivery

Package: Wooden cases, meet the international standard.
Delivery: In 15-20 working days.

Laboratory Used Corrosion Salt Spray Test Chamber



Guangdong Yuanyao Electronics Technology Co., Ltd also can supply:
Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal
Shock Tester, Liquid Thermal Shock Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration
Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust
Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.
