• Model NO.：PHLD-16
• Load Way：Electronic Load
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Item：Grinding Wheel Balancing Machine
• Length：1200 mm
• Width：1200 mm
• Height：1300 mm
• Gross Wieght：530 Kg
• Power：Electronic
• Output Power：1.5kw
• Power Supply：380V or Custom
• Number of Packing：1PC
• Delivery Time：Within 25 Days
• Transport Package：Fumigated Wood Box
• Specification：ISO. CE. SGS
• Trademark：JP jianping
• Origin：Shanghai China
• HS Code：90311000
• Production Capacity：1000 Set,Sets Per Month Negotiation

Basic Info.

Model NO. PHLD-16 Load Way Electronic Load Loading Method Dynamic Load Display Digital Control Computer Control Weight 100-500Kg Power Source AC220V Oil Cylinder Position Under Item Grinding Wheel Balancing Machine Length 1200 mm Width 1200 mm Height 1300 mm Gross Wieght 530 Kg Power Electronic Output Power 1.5kw Power Supply 380V or Custom Number of Packing 1PC Delivery Time Within 25 Days Transport Package Fumigated Wood Box Specification ISO. CE. SGS Trademark JP jianping Origin Shanghai China HS Code 90311000 Production Capacity 1000 Set/Sets Per Month Negotiation

Product Description

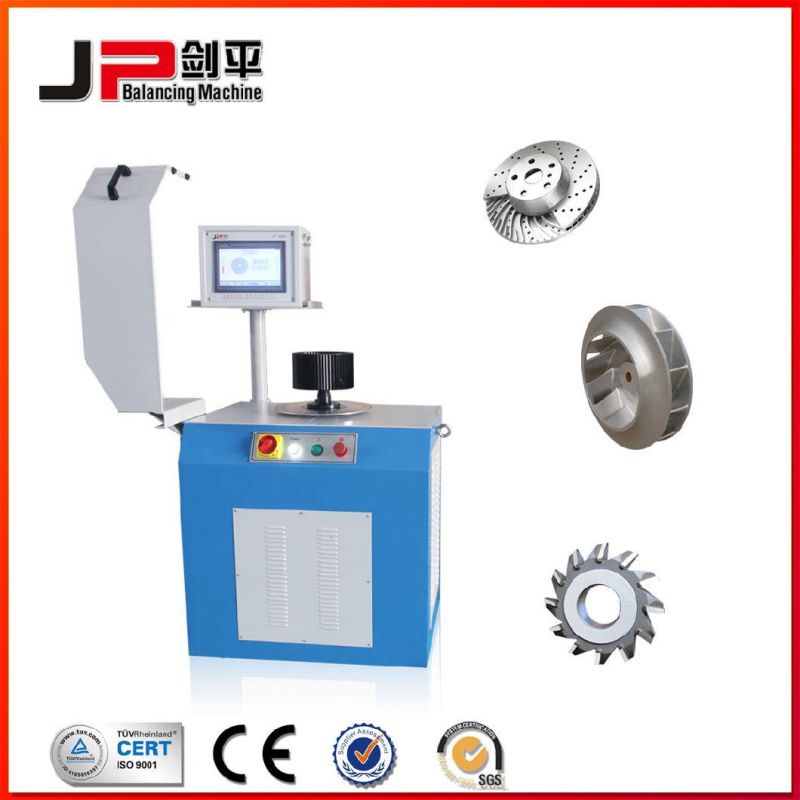

 Brake Disc, Flywheel, Clutch Balancing Machine

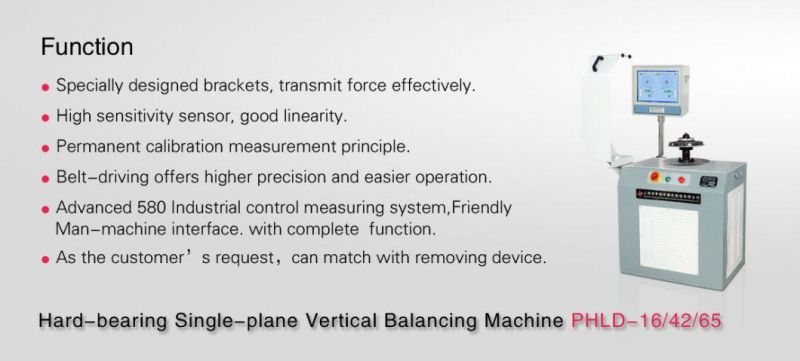

Production Description:

? Specially designed,solid brackets can effectively transmit mechanical force
? Durable and reliable sensor possesses high sensitivity and good linearity
? Permanent calibration brings high accuracy
? Special clamp offers higher accuracy and easier operation
? .Advanced electrical measuring system and friendly man-machine interface
? As the customer's request,the de-weighting system can be equiped

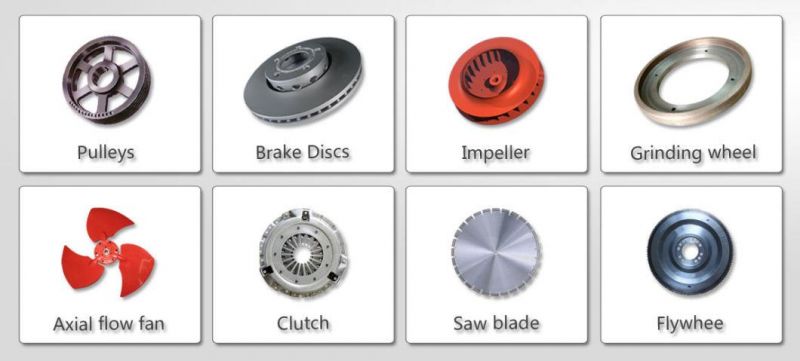

Range of Application:

The balancing machine is a new and widely-used device which has been available and developed in recent years. It is mainly applied to balance all kinds of discoid parts, such as fan blade, brake disk,brake drum.saw blade.clutch,belt pulley,chuck,pump impeller,flywheel,grinding wheel,range hood fan,brake, torque converter,tool etc .High speed and precision are advanages of this balancing machine.

According to user's requirement,The machine can install de-weight device

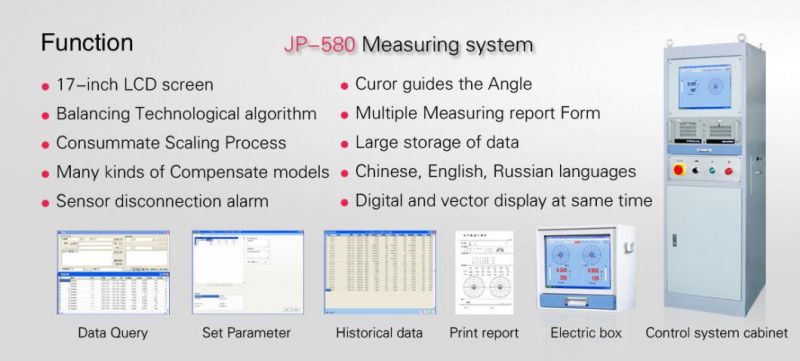

Electrical Measuring System (Option):

Technical data at a glance	PHLD-16	PHLD-42	PHLD-65
Max Mass of  Workpiece (with clump)  (kg)	16	42	65
Max Diameter of Workpiece (mm)	510  With hood   800 Without hood	510  With hood 800 Without hood	510  With hood 800 Without hood
Height of Workpiecemm	160	160	160
Rotation Speed of Main Axis (r/min)	900	800	700
Motor Power  (kw)	1.5	1.5	2.2
Min Achievable Residue Unbalace Amount (emar)	5g. mm/kg	5g. mm/kg	5g. mm/kg
