Walk-in Temperature Humidity Cycling Stability Test Room
Ai Si Li (China) Test Equipment Co., Limited- Certification：CE, TUV, ISO
- Warranty：1 Year
- Humidity Range(Optional)：20%~98%R.H.
- Temperature Range：-70~+150 Degree
- Temp. Rising Speed：0.1~3.0degree C,Min
- Analytic Accuracy：0.1degree C
Base Info
- Model NO.：THR-Volume
- Cooling System：Water Cooling
- Temperature Rising：3.0 C,Min
- Transport Package：Plywood Case
- Specification：CE Certified
- Trademark：ASLi
- Origin：Guangdong, China
- HS Code：85141090
- Production Capacity：30 Sets,Month
Description
Walk-in Test Room Technical Parameters Model THR-volume (low-temperature options : A ~ F) Inner Dimensions(cm) Customers designated space size and design Temperature Range Low Temperature(A:25degree C B:0degree C C:-20degree C D:-40degree C
E:-60degree C F:-70degree C ) High Temperature 80degree C
(80degree C ~150degree C is optional) Humidity Range 20%~98%R.H.
(10%-98% R.H. / 5%-98% R.H ,is a special optional condition, need dehumidifier) Indication Resolution/
Distribution Uniformity of
Temperature & Humidity 0.1degree C ; 0.1% R.H/±2.5degree C ; ±3.5% R.H. Control Accuracy of
Temperature and Humidity ±0.5degree C ; ±2.5% R.H. Temperature Rising/
Falling Velocity Temperature rising approx. 0.1~3.0°C/min;
temperature falling approx. 0.1~1.0°C/min;
( The Falling Velocity Min.1.0°C /min is a optional) Cooling System Water cooled Protection Devices Fuse-free switch, overloading protection switch for compressor,high and
low voltage coolant protection switch, over-humidity & over-temperature protection
switch, fuses, fault warning system, water short storage warning protection Optional Accessories Slope for cart , Recorder, Water Purifier, Dehumidifier Compressor French Tecumseh Brand, Germany Bizer Brand Power AC 380 V(±10%),50/60HZ ,3 phase 5 Lines
Walk-in Temperature Humidity Cycling Stability Test Room Features :
1. Graceful appearance, circularly shaped body, surface treated with mist strips and plan handle with no reaction. Easy to operate, safe and reliable.
2. Rectangular double- paned viewing window for the observation of sample under test with interior lights
3. Double-layer- insulated airtight doors, able to insulate the interna temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5. French Tecumseh brand is used as compressor, with environment friendly refrigeration R23,R404A
6.LCD display screen, capable of displaying the set point and actual value at the same time
7. The control unit has the functions of multiples segment program editing, with ramp rates control of temperature and humidity.
8. Casters are provided for ease of mobility, with strong positioning screws
Warranty: one year free warranty for whole set machine,lifelong time maintainance.
After-sale service: feedback within 8 hours after get the call or email.
Service:OEM service,Design service,Buyer lable service.

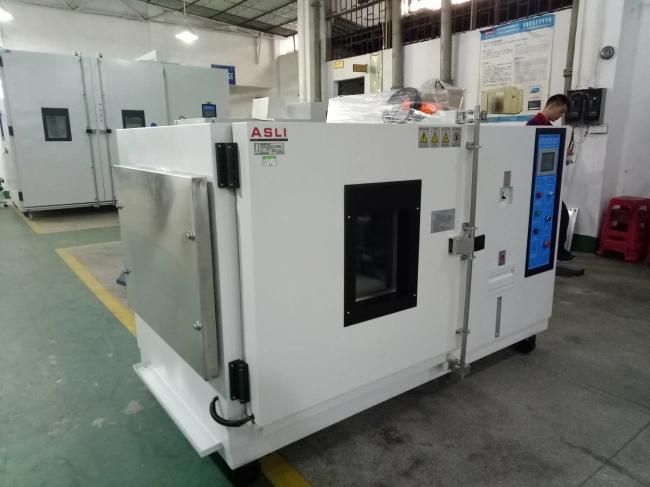

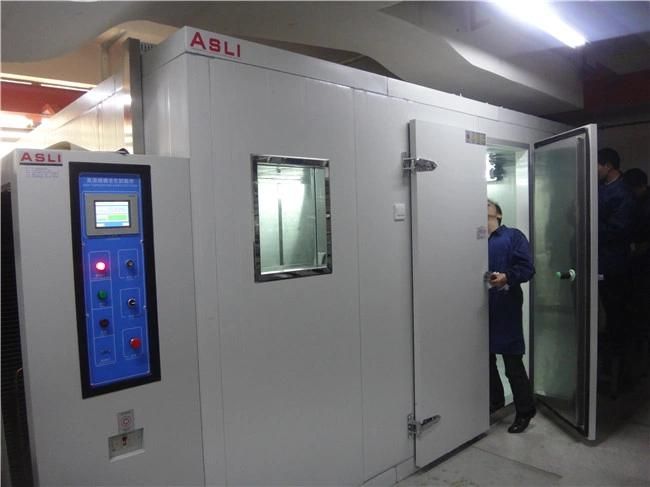

Walk-in Temperature Humidity Cycling Stability Test Room Pictures:

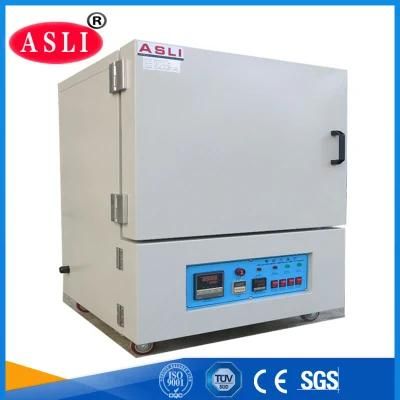

ASLi main test equipments:
Environmental chambers, temperature (humidity) chamber,Thermal shock chamber, PCT /Hast chamber (Highly accelerated stress test chamber),ESS chamber,Walk-in Temperature Humidity Cycling Stability Test Room,Vacuum oven,electrodynamic vibration shaker,mechanical shock tester,environmental combined vibration chamber,etc

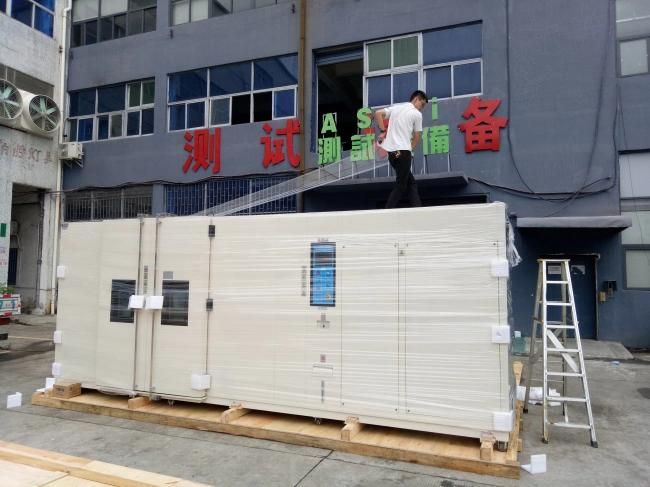

Customers Visit ASLI Company:
If you have any needed about Walk-in Temperature Humidity Cycling Stability Test Room, please don't hesitate to send your enquiry.
