• Model NO.：MS-50 , MS-100 , MS-800
• Power Source：AC380V
• Load Capacity (Kg)：50~800
• Pulse Width (Ms)：20~3
• Frequency (Times /Min)：10~80
• Max. Dropped Height (mm)：60
• Weight (Kg)：1100~3500
• Power：AC380V
• Control Measure System：Shock Daq Computer Control Measuring System
• Transport Package：Standard Export Plywood Case
• Specification：CE, ISO
• Trademark：ASLi
• Origin：China
• HS Code：85141090
• Production Capacity：50 Sets,Month

MS-500MS-800Load capacity (kg)50100200500800pulse  acceleration( m/s2)50~120050~100050~100050~50050~500Pulse Width (ms)20~320~320~320~320~3Frequency  (times /min)10~8010~8010~8010~8010~80Table Size (mm)500X700700X700700X700800X8001000x1000Max. Dropped Height  (mm)6060606060Pulse TypeHalf Sine wave, (trapezoidal wave, and the sawtooth wave, square wave optional)External Dimension
WXHXD (mm)800X1300X
1000800X1300X
1000850X1350X
11001000X1300X
19001000X1300X
1900Weight (Kg)11001250200030003500Protection DeviceDoor protection, over-load protection, zero signal protectionPowerAC 220V(±10%), 1∮3 Lines ,50/60HZ;
AC 380 V(±10%) ,3∮ 5 Lines,50/60HZEnvironmental Conditions Temperature: 25ºC±5.0ºC humidity: <85%(25ºC)

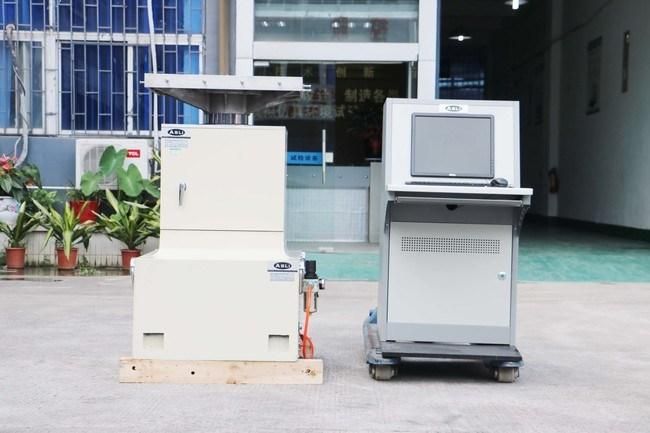

Mechanical Shock and Impact Testing Machine features:
1. Working bench with perfect structure, good uniformity of bench's acceleration.
2. High reliable of system, safety device.
3. The saw-tooth wave and trapezoidal wave, etc. extensible.
4. Capacity of crash and impact test function.
5. Optoelectronic feedback.


Warranty: one year free warranty for whole set machine,lifelong time maintainance.

After-sale service: feedback within 8 hours after get the call or email.

Service:OEM service,Design service,Buyer lable service.

If you want to learn more Mechanical Shock and Impact Testing Machine knowledge, welcome to contact us at any time.

Certificate of these the machine:
China official 3rd party calibration report
CE certiification
