• Model NO.：TH-80(A~F) , TH-100 (A~F)
• Indication Relolution of Humidity：0.1% R.H.
• Distribution Uniformity of Humidity：+,- 3.0% R.H
• Transport Package：Standard Export Plywood Case
• Specification：CE
• Trademark：ASLi
• Origin：China
• HS Code：85141090
• Production Capacity：50 Sets, Month

ModelTH-80(A~F)TH-150(A~F)TH-225(A~F)TH-408(A~F)TH-800(A~F)TH-1000(A~F)Internal Dimension
WxHxD (mm)400x500x400500x600x500600x750x500600x850x8001000x1000x8001000x1000x1000External Dimension WxHxD (cm)950x1650x9501050x1750x10501200x1900x11501200x1950x13501600x2000x14501600x2100x1450Temperature RangeLow Temperature(A:25ºC B:0ºC C:-20ºC D:-40ºC E:-60ºC F:-70ºC)
High Temperature 150ºCHumidity Range20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is optiona , need Dehumidifier)Indication relolution / Distribution uniformity of temperature and humidity0.1ºC; 0.1% R.H/±2.0ºC; ±3.0% R.H.Control Accuracy of Temperature and Humidity±0.5ºC; ±2.5% R.H.Temperature Rising / Falling VelocityTemperature rising approx. 0.1~3.0ºC/min,
temperature falling approx. 0.1~1.5ºC/min;
( Falling Min.1.5ºC/min is optional)Inner and Outer MaterialInterior material is SUS 304# stainless steel, exterior is stainless steel or see cold-rolled steel with paint coated.Insulation MaterialResistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materialsCooling SystemWind cooling or water cooling, (single segment compressor-40ºC, double segment compressor -70ºC)Protection DevicesFuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protectionOptional AccessoriesInner door with operation hole , Recorder, Water Purifier, DehumidifierCompressorFrench Tecumseh Brand, Germany Bizer BrandPowerAC220V , 50/60HZ , AC380V , 50/60HZApprox. Weight (Kg)150180250320400450

humidity and temperature testing machine Features:
1. Graceful appearance, circularly shaped body, surface treated with mist strips . Easy to operate, safe and reliable.
2. Rectangular double-paned viewing window for viewing sample under test, with interior light
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5.French Tecumseh is used as compressor, with environment friendly refrigeration R23 or R404A
6. LCD display screen, capable of displaying the measured value as well as the set value and time.
7. The control unit has the functions of multiples segment program editing, with quick or ramp rates control of temperature and humidity.
8. Casters are provided for ease of mobility, with strong positioning screws.

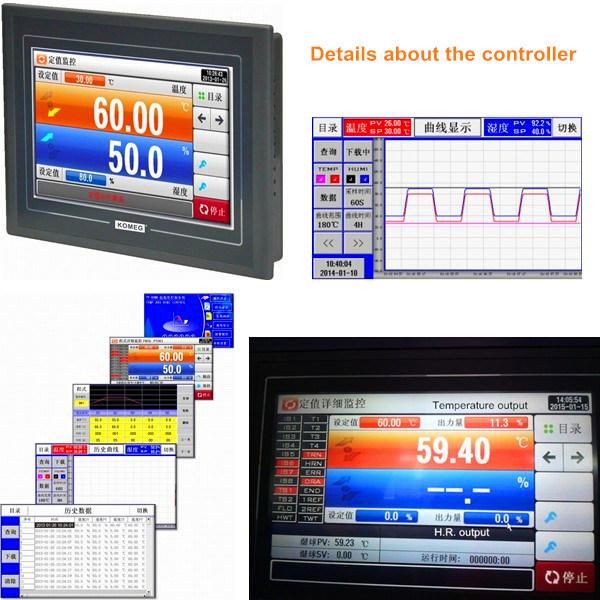

Temperature Humidity Machine's Controller is very easy to operate:


Package: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.

Warranty: one year free warranty for whole set machine,lifelong time maintainance.

After-sale service: feedback within 8 hours after get the call or email.

Service:OEM service,Design service,Buyer lable service.

If you want to learn more humidity and temperature testing machine knowledge, welcome to contact us at any time.
