Thermal Impact Temperature and Humidity Cycle Test Chamber for Laboratory
Ai Si Li (China) Test Equipment Co., Limited- Certification:CE, TUV, ISO
- Warranty:1 Year
- Temperature Range:-70~+150 Degree C
- Humidity Range:20%~98%R.H.
- Control Accuracy:+,-0.5degree C
- Indication Resolution:0.1degree C; 0.1% R.H
Base Info
- Model NO.:HL-225(A~F) , HL-408(A~)
- Uniformity:+,-2.0degree C
- Temp. Rising Speed:0.1~3.0degree C,Min
- Temp.Falling Speed:0.1~1.5degree C,Min
- Compressor:French Tecumseh Brand
- Transport Package:Wooden Case
- Specification:CE Certified
- Trademark:ASLi
- Origin:Guangdong, China
- HS Code:8514109000
- Production Capacity:100 Sets,Month
Description
HL -225(A~F)HL -408(A~F) Internal Dimensions
W*H*D (mm) 600*750*500 600*850*800 External Dimensions
W*H*D (mm) 1200*1900*1150 1200*1950*1350 Temperature Range Low Temperature(A:25degree C B:0degree C C:-20degree C D:-40degree C
E:-60degree C F:-70degree C )
High Temperature 150degree C Analytic Accuracy/
Distribution Uniformity
of Temperature 0.1degree C /±2.0degree C Control Accuracy of
Temperature ±0.5degree C Temperature Rising/
Falling Velocity Temperature rising approx. 0.1~3.0degree C /min ; temperature falling approx.
0.1~1.5degree C /min; ( The Falling Speed Rate Min.1.5degree C per minute
is a special optional condition) Internal and
External Material Material of the inner box is SUS 304# stainless steel,of the outer bo* is
stainless steel or SEE cold-rolled steel with paint coated. Insulation Material Resistant to high temperature, high density, formate chlorine, ethyl acetum
foam insulation materials Cooling System Wind cooled or water cooled,single segment compressor for -40degree C ,
double segment compressor for -70degree C Protection Devices Fuse-free switch, overloading protection switch for compressor, high and
low voltage coolant protection switch, Over-humidity and over-temperature
protection switch, fuses, fault warning system Optional Accessories Inner door with operation hole(Optional), Recorder(optional),Dehumidifier Compressor French Tecumseh Brand,Germany Bizer Brand Power AC 220V, 1Phase 3 Lines,50/60HZ ; AC 380V ,3 Phase 5 Lines,50/60HZ Approx. Weight (Kg) 180 250 320



temperature and humidity cycle test chamber Features:
1. Graceful appearance, circularly shaped body, surface treated with mist strips, and plane handle with no reaction. Easy to operate, safe and reliable.
2. Rectangular double-paned viewing window for observation of sample under test, with interior lights
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.

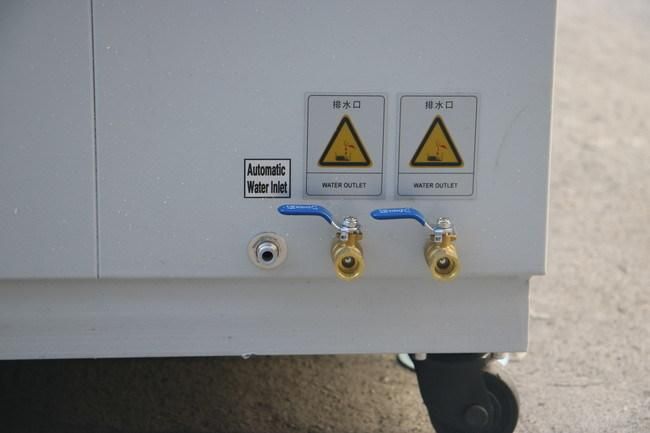

4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5. French Tecumseh brand is used as compressor, with environment friendly refrigeration R23 or R404A
6. LCD display screen is used for the control unit, capable of displaying set point and actual value at the same time
7. The control unit has the functions of multiples segment program editing function
8. Quick or ramp rates control of temperature and humidity.
9. Casters are provided for ease of mobility, with strong positioning screws.
Warranty: one year free warranty for whole set machine,lifelong time maintainance.
After-sale service: feedback within 8 hours after get the call or email.
Service:OEM service,Design service,Buyer lable service.
Exhibition
If you want to learn more Thermal Impact Temperature and Humidity Cycle Test Chamber for Laboratory knowledge, welcome to contact us at any time.
