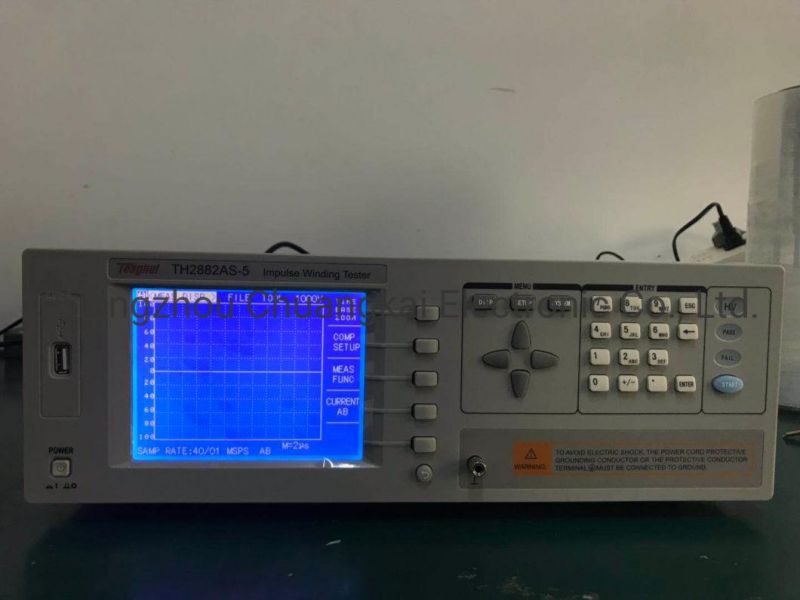

Th2882as-5 Three Phase Impulse Winding Tester Can Measure 20mh Inductance
Changzhou Chuangkai Electronic Co., Ltd.- Warranty：1 Year
- Product Name：Th2882as-5 Three Phase Impulse Winding Tester
Base Info
- Model NO.：TH2882AS-5
- Detection Output：Pass,Fail Display , Alarm

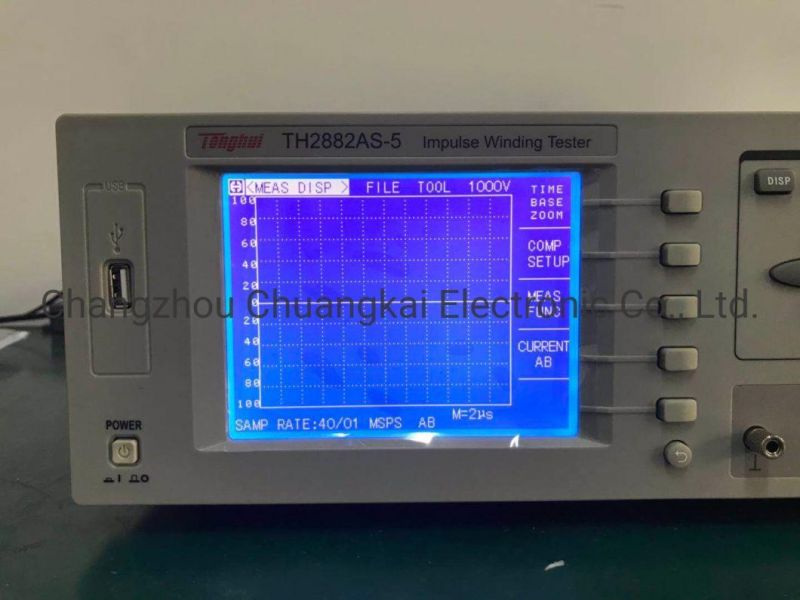

- Display：320X240 Dots LCD
- Input Impedance：10mohm (Resistive Voltage Divider)
- Measuring Speed：5.5 Times,Sec (Waveform Display off, Pass,Fail on
- Trigger Mode：Internal,Manual (Foot), External, Bus
- Interface：Handler (Start, Stop, Pass Ng, Busy,Eoc,etc.), RS2
- Waveform Measurement：Voltage, Time, Frequency
- Type of Coil：Three-Phase Three-Wire System. Three-Phase Four-Wi
- Average Rate：1 to 99 ,Programmable
- Transport Package：Carton
- Specification：55x55x33cm
- Trademark：CKT
- Origin：China
- HS Code：9030332000
- Production Capacity：3000 Sets Per Month
- Package size per unit product：55.00cm * 55.00cm * 33.00cm
- Gross weight per unit product：19.000kg
- Lead Time：15 days (1 - 5 set)
Description

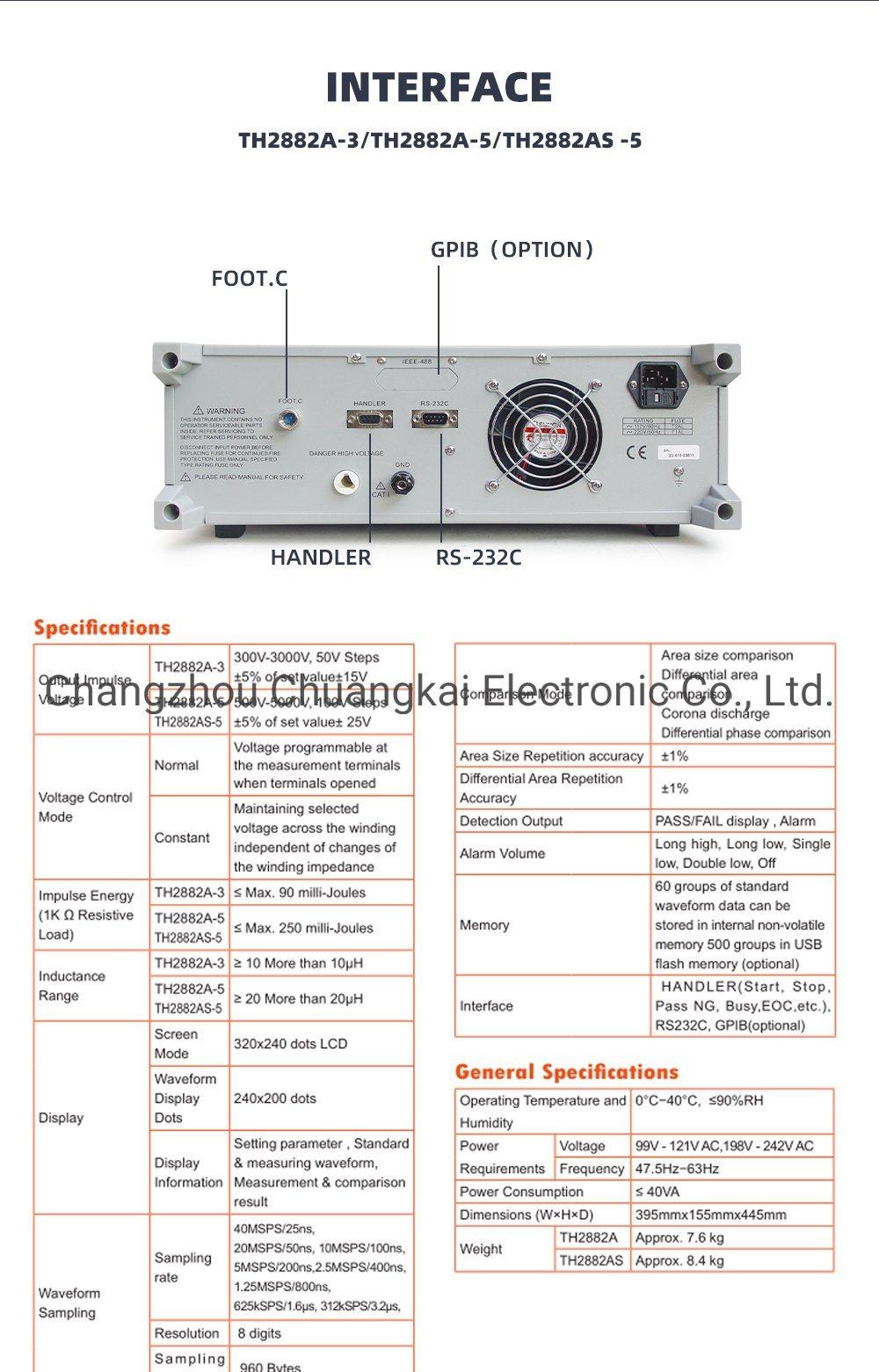

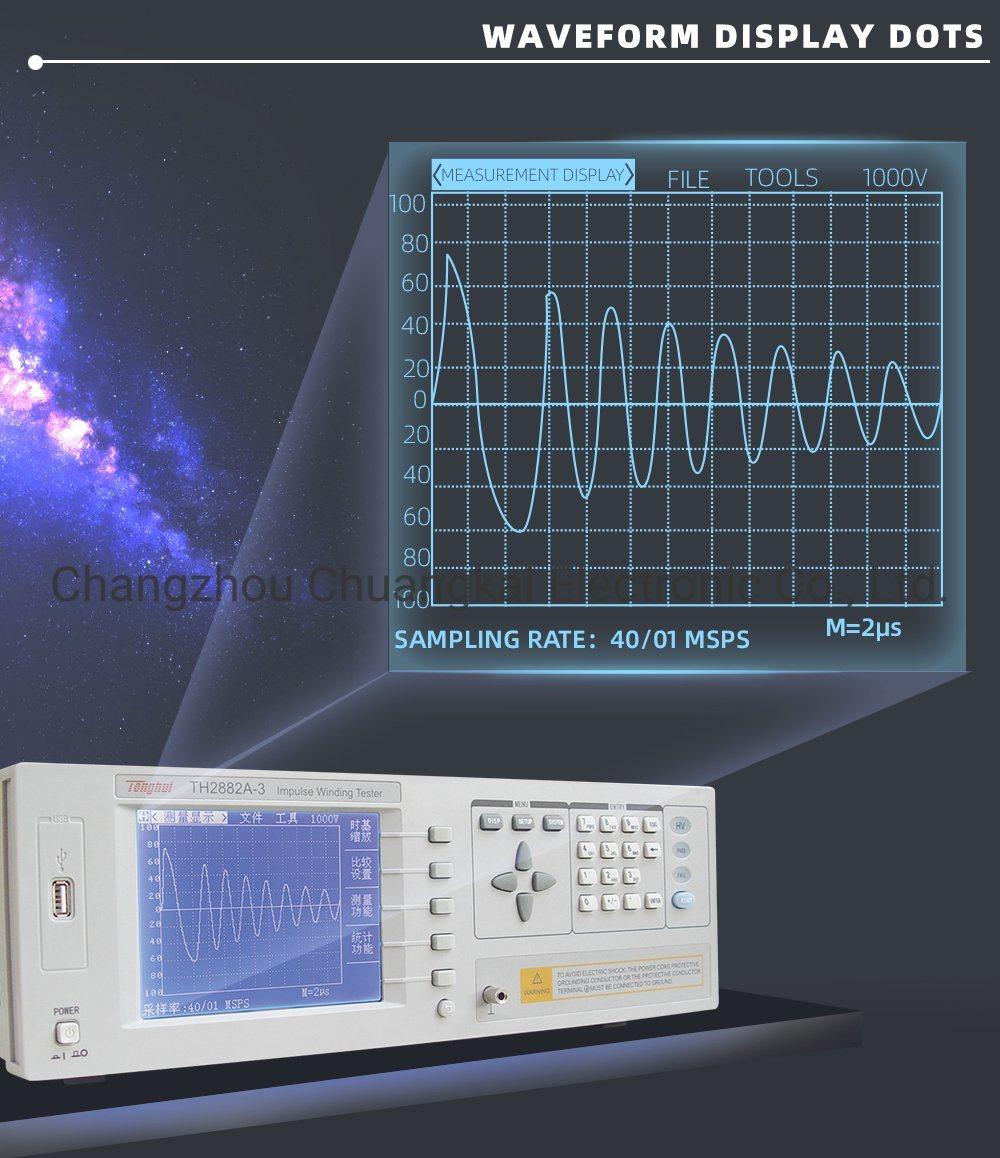

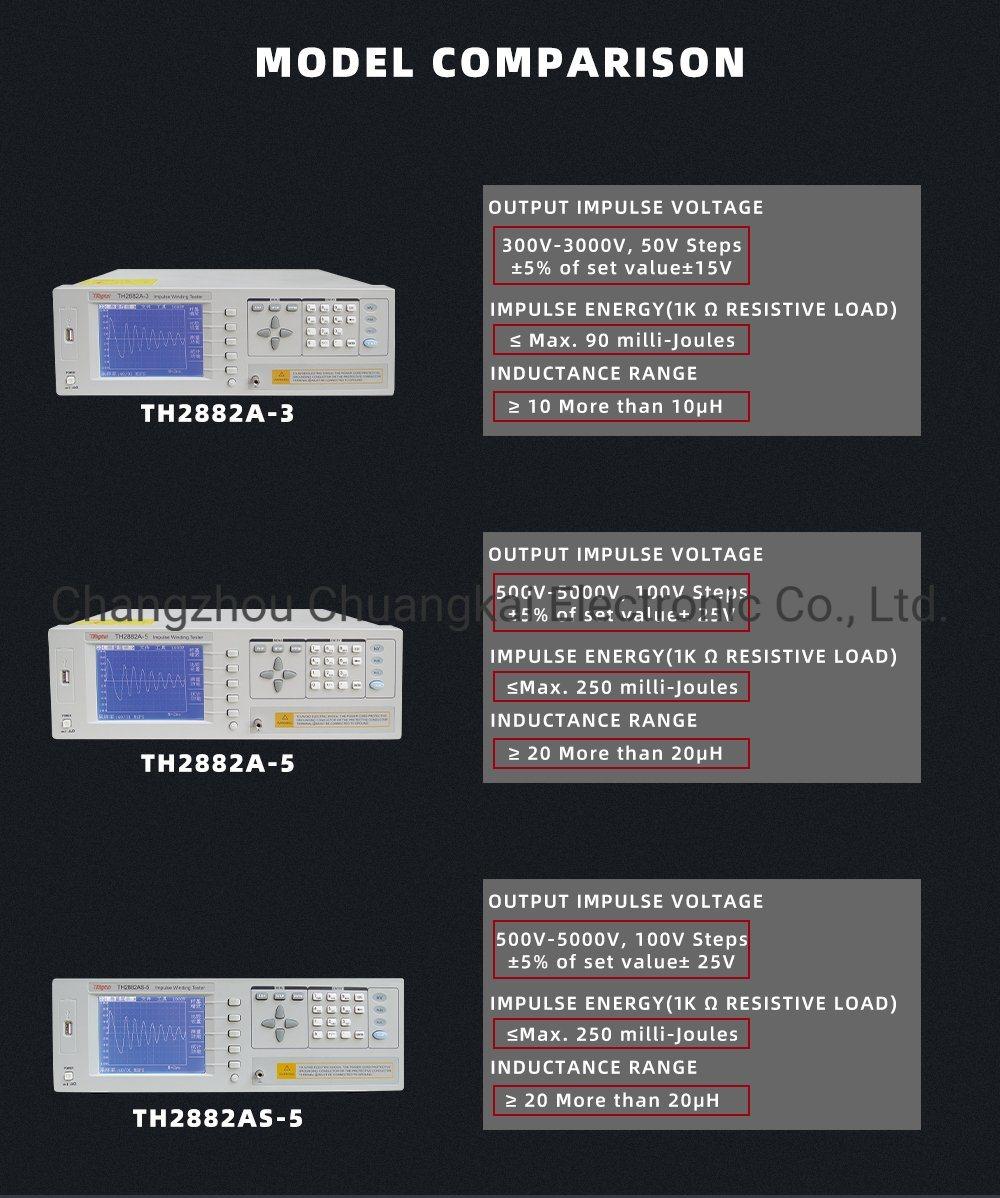

Output Impulse Voltage 300V-3000V, 50V Steps ± 5% of set value ± 15V 500V-5000V, 100V Steps ± 5% of set value± 25V Voltage Control Mode Normal Voltage programmable at the measurement terminals when terminals opened Constant Maintaining selected voltage across the winding independent of changes of the winding impedance Impulse Energy (1K ohm Resistive Load) ≤ Max. 90 milli-Joules ≤ Max. 250 milli-Joules Type of Coil Single-phase Three-phase three-wire system Three-phase four-wire system Inductance Range ≥ 10μH ≥ 20μH ≥ 200μH Display Screen Mode 320x240 dots LCD Waveform Display Dots 240x200 dots Display Information Setting parameter, Standard & measuring waveform, Measurement & comparison result Waveform Sampling Sampling Rate 40MSPS/25ns, 20MSPS/50ns, 10MSPS/100ns, 5MSPS/200ns, 2.5MSPS/400ns, 1.25MSPS/800ns, 625kSPS/1.6μs, 312kSPS/3.2μs Resolution digits Sampling Length Bytes Input Impedance 10MΩ (Resistive voltage divider) Measuring Speed 5.5 times/sec (Waveform display OFF, PASS/FAIL ON) 3.3 times/sec (Waveform display ON, PASS/FAIL ON) Average Rate 1-99, Programmable Waveform Measurement Voltage, Time, Frequency Trigger Mode Internal/Manual (Foot)/External/ BUS Comparison Mode Area size comparison, Differential area comparison, Corona discharge differential phase comparison Area Size Repetition Accuracy ±1% Differential Area Repetition Accuracy ±1% Detection Output PASS/FAIL display, Alarm Alarm Volume Long high, Long low, Single low, Double low, Off Memory groups of standard waveform data can be stored in internal non-volatile memory 500 groups in USB flash memory (optional) Interface HANDLER (Start, Stop, Pass NG, Busy, EOC, etc.), RS232C, GPIB(optional) Company Profile https://ckt2017.en.made-in-china.com/product-list-1.html
