• Model NO.：SH Series
• Saline Concentration：5% Concentration of Nacl
• Spray Volume：1.0~2.0ml ,80cm2 ,H
• Compressed Air Pressure：1.0~6.0 (Kgf)
• Leading Time：15 Days
• Spray Method：Continuous Spraying
• Transport Package：Wooden Case
• Specification：SH-90
• Trademark：ASLi
• Origin：Guangdong, China
• HS Code：85141090
• Production Capacity：100 Sets,Month

Salt Spray Environmental Corrosion Resistance Test Instruments Technical Parameters ModelSH-60SH-90SH-120SH-160SH-200Internal Dimension
W*H*D (mm)600*450*400900*600*5001200*800*5001600*800*5002000*1000*500External Dimension
 W*H*D (mm)1100*600*12001400*950*12001900*1300*14002300*1300*14002700*1500*1500Lab TemperatureSaline test (NSS ACSS)   35±1 degree C  ;Corrosion Test (CASS)50±1 degreePressure Bucket
TemperatureSaline test method (NSS ACSS) 47±1 degree C / Corrosion Test (CASS)63±1 degreeLab Capacity(L)110 2705008001500Saline Capacity(L)1525404040Saline Concentration5% concentration of NaCl, or every Liter 5%  NaCl add 0.26g CuCl2H2OCompressed Air
Pressure(Kgf)1.0~6.0Spray Volume1.0~2.0ml /80cm2 /h(working at least 16 hours, and take the average value)Spray Form Continuous Spraying or Programmable SprayingPowerAC220V 1phase  3 lines15A Weight(Kg)6580120160200


Salt Spray Test Chamber Features:

1. Adopt automatically or manually adding water system, can watered by itself while lack of water.

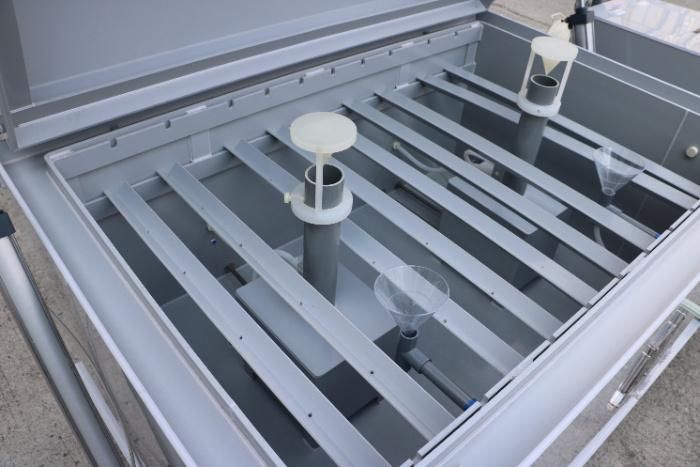

2. Precise glass spray nozzle, good uniformity, mist dropping naturally, no NaCl crystallized salt
3. Double over-heat protection devise and alarm when water short storage to ensure use safety.
4. Digitally temperature controller, PID controlled, precision of ±0.1ºC
5. Laboratory direct steam-heated, even heating speed, reducing the standby time.
6. Tapered Spray tower, even mist dropping
7. Saturated bucket is SUS #304, convenient for heating and humidifying, offer humidity for testing
8. Concentration of NaCl: 5%; PH of the water: 6.5-7.2

For the package:

1. PP film first
2. Vacuum package
3. PP film again
4. 10mm thickness PU foam to avoid collision
5. stronged plywood case
6. Standard ASLI CASE MARK

Salt Spray Environmental Test Instruments Saftey device:

1. With no-fuse protection switch
2. Control system with phase sequence protection and low voltage electrical protection.
3. With over-heat protection switch.
4. Over load protection device for refrigeration compressor.
5. Refrigeration compressor high and low voltage protection switch.
6. Refrigeration compressor over oil pressure protection.

Certificate of these the machine:

China official 3rd party calibration report
CE certiification

Please feel free to contact us if any doubt or needs about Automatic Salt Spray Environmental Corrosion Resistance Test Instruments.
