0-80Kv Transformer Insulating Oil Dielectric Strength Tester

Wuhan GDZX Power Equipment Co., Ltd.
  • After-sales Service：Provided
  • Warranty：1 Year
  • step-up transformer capacity：1.5 kVA
  • output voltage：0~80 kV
  • boundary dimension：409 mm*393 mm*388 mm
  • Instrument weight：29 kg

Base Info

  • Model NO.：ZXJYD-IV
  • Working power supply：AC 220V+,-10%
  • Power consumptio：Less than 200W
  • Display mode：Big LCD display Chinese characters
  • Transport Package：Carton,Wooden Case
  • Specification：Customized
  • Trademark：GDZX
  • Origin：Hubei
  • Production Capacity：500 Pieces,Month

Description

     ZXJYD-IV Insulating Oil Breakdown Voltage Tester is a high-precision and fully digital automatic oil breakdown voltage tester carefully developed by all scientific and technological personnel of GDZX company according to international standards IEC156, American Standards ASTM D877 and ASTM D1816, through a large number of field tests and long-term unremitting efforts, giving full play to our advantages. The tester has the advantages of simple operation and beautiful appearance. Automatic digital computer control, high measurement accuracy, strong anti-interference ability, safe and reliable.
 0-80Kv Transformer Insulating Oil Dielectric Strength Tester0-80Kv Transformer Insulating Oil Dielectric Strength Tester



0-80Kv Transformer Insulating Oil Dielectric Strength Tester


Technical Indicators

service condition1. Environment temperature 0~40ºC2. Relative humidity≤85%3.Working power supply AC 220V ± 10%4. Supply frequency50/60± 5 Hz5.Power consumption<200 W

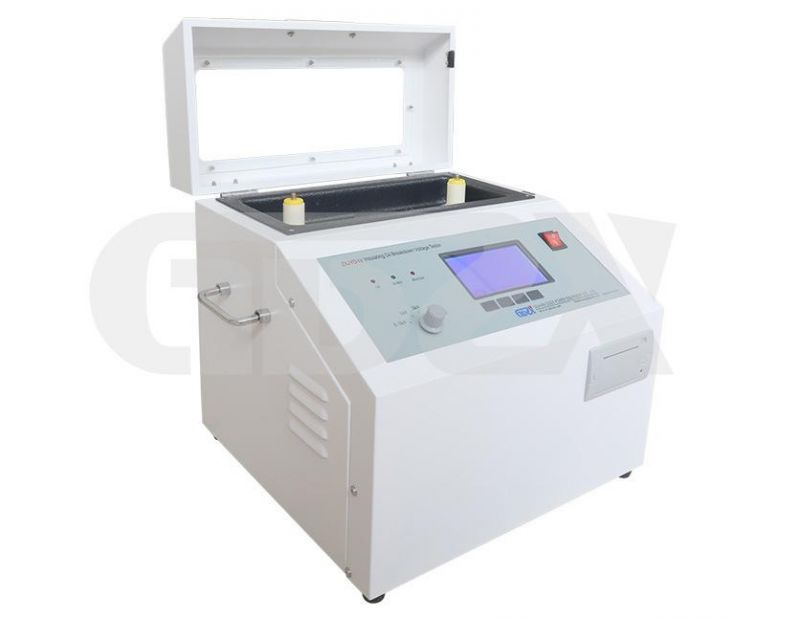

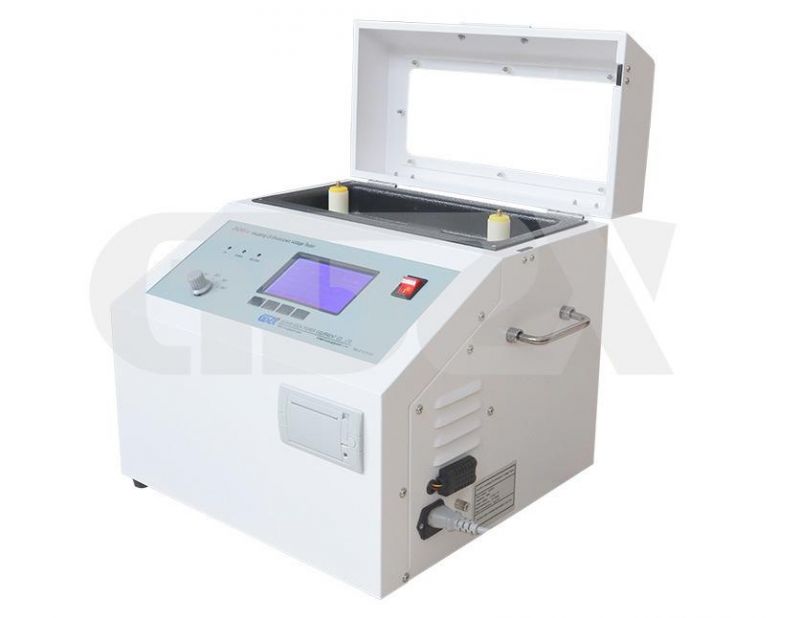

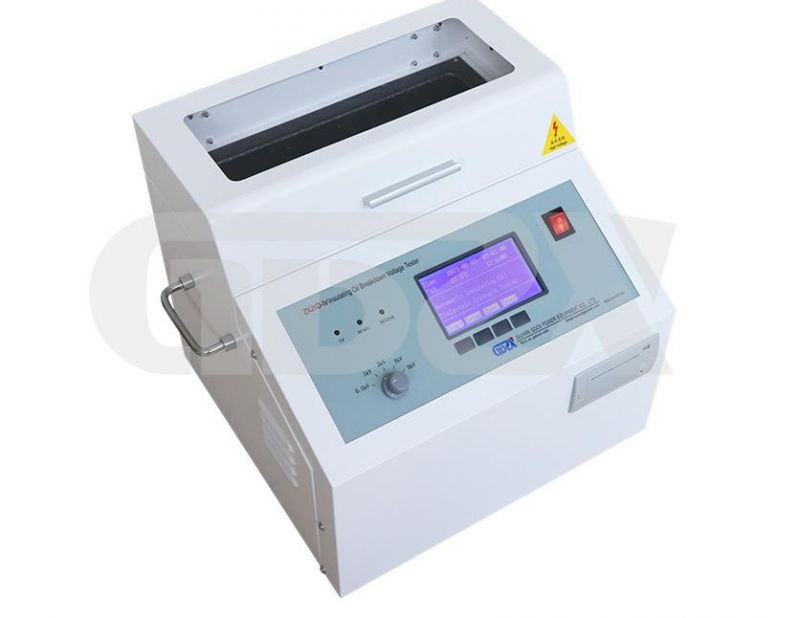

Product pictures
0-80Kv Transformer Insulating Oil Dielectric Strength Tester0-80Kv Transformer Insulating Oil Dielectric Strength Tester

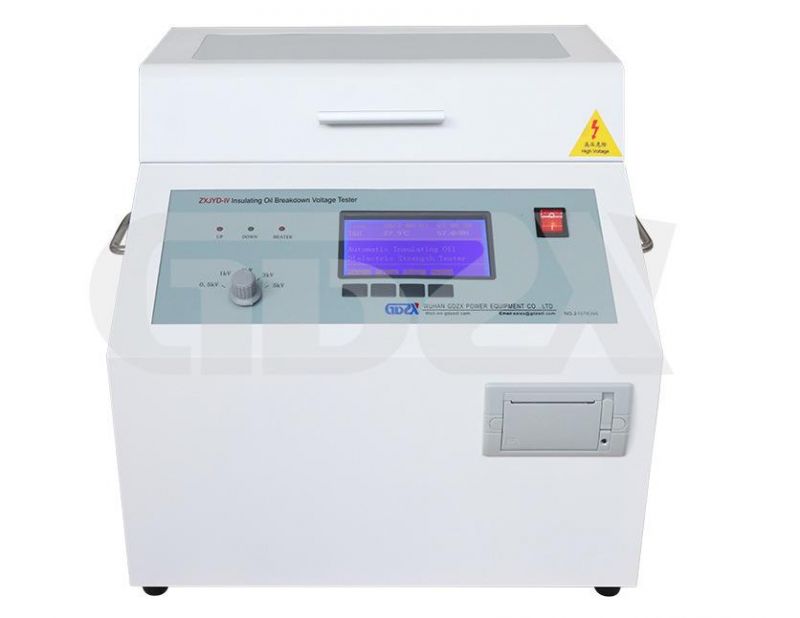

Device display
0-80Kv Transformer Insulating Oil Dielectric Strength Tester0-80Kv Transformer Insulating Oil Dielectric Strength Tester
About GDZX
     Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.
0-80Kv Transformer Insulating Oil Dielectric Strength Tester0-80Kv Transformer Insulating Oil Dielectric Strength Tester0-80Kv Transformer Insulating Oil Dielectric Strength Tester0-80Kv Transformer Insulating Oil Dielectric Strength Tester
Shipping and packaging
0-80Kv Transformer Insulating Oil Dielectric Strength TesterFeatures


1. The instrument adopts the large capacity single-chip microcomputer control,works stably and reliably.

2. Instrument can eliminate the phenomenon of crash with wide range of watchdog circuit

3. A variety of operation to choose, Instrument program with IEC156, ASTM D877 and ASTM D1816 three methods of national standard and custom  operations for different users' multiple choice

4. Instrument test cell is made of a special glass casting form once to eliminate the phenomenon of oil leaking and other interference

5. instrument can take articularly high voltage terminal sampling design for test values to analogue-digital converter, to avoid the error caused in the analog circuit, to make more accurate measurement results.

6. Instrument internal functions of overflowing, overvoltage, short circuit be protected,and are good for antijamming capability and electromagnetic compatibility

7. Instruments are portable structure , easy to move, used inside and outside rooms.
