100KV portable transformer dielectric oil bdv tester dielectric strength tester
Wuhan GDZX Power Equipment Co., Ltd.- After-sales Service：Provided
- Warranty：1 Year
- Step-up transformer capacity：1.5 kVA
- Rate of voltage rise：0.5 kV,s, 1kV,s, 2.0kV,s, 3.0kV,s,5.0kV,s
- Output voltage：0-100 kV
- Display mode：Big LCD display Chinese characters
Base Info
- Model NO.：ZXJYD-II
- Electrode gap：standard 2.5 mm
- Boundary dimension：409*393*388mm
- Instrument weight：29kg
- Environment temperature：0-40centigrade
- Relative humidity：Less than or equal to 85%
- Working power supply：AC 220V+,-10%
- Supply frequency：50+,-5Hz
- Power consumption：less than 200W
- Transport Package：Wooden Case or Carton
- Specification：Universal Testing Machine
- Trademark：GDZX
- Origin：China
- Production Capacity：1200sets,Year
Description

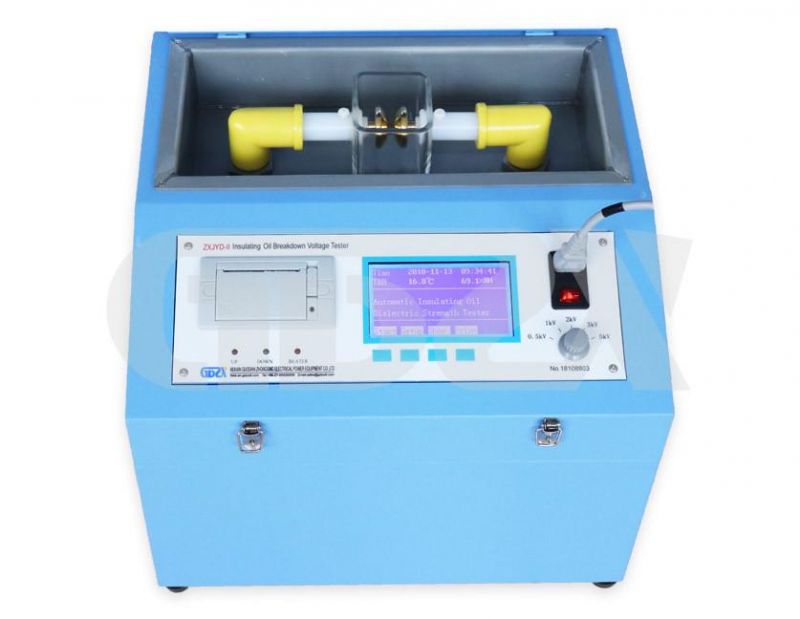

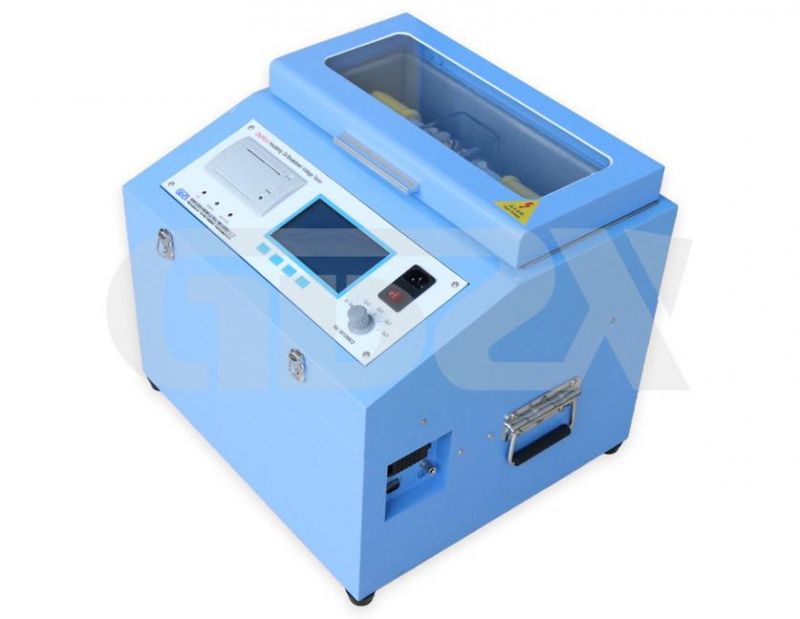

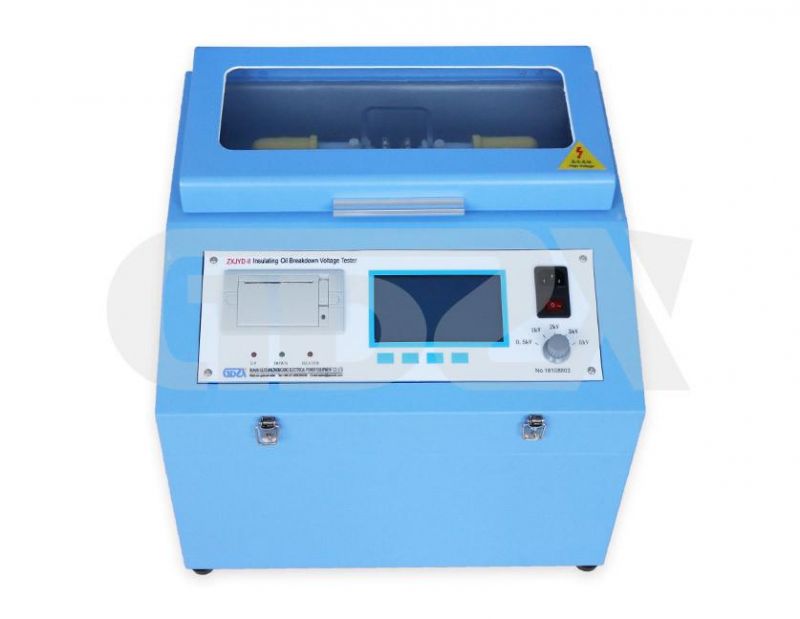

ZXJYD-II Insulating Oil Breakdown Voltage Tester. Our company all the scientific and technical personnel, according to national standard GB507-86 and line standard, the relevant provisions of DL/T596-1996/DL-474-4-92, give full play to our advantages with a lot of field test and long-term unremitting efforts, carefully researching and development of high accuracy, full digitalization to the Automatic Insulating Oil Dielectric Strength Tester.
| 1.Step-up transformer capacity | 1.5 kVA |
| 2. Rate of voltage rise | 0.5 kV/s,1kV/s ,2.0kV/s,3.0kV/s , 5.0kV/s five gears |
| 3.Output voltage | 0~100 kV |
| 4.Aberration rate of power supply | <1% |
| 5.Display mode | Big LCD display Chinese characters |
| 6.Electrode gap | standard 2.5 mm |
| 7.Boundary dimension | 409×393×388mm |
| 8.Instrument weight | 29kg |
| 9. Environment temperature | 0~40ºC |
| 10. Relative humidity | ≤85% |
| 11. Working power supply | AC 220V ± 10% |
| 12. Supply frequency | 50 ± 5Hz |
| 13. Power consumption | <200W |
Test site
Company introduction
Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.
Features
1. The instrument is controlled by a large capacity single chip microcomputer, which is stable and reliable;
2. The instrument is equipped with temperature, humidity and clock display functions, and can be customized for infrared oil temperature measurement;
3. The wide range watchdog circuit is set in the instrument to prevent the crash;
4. A variety of standard options. The instrument program is equipped with GB / t507-1986, GB / t507-2002, dl429.9, iec156 and self programming operation, which can adapt to a variety of choices of different users;
5. The oil cup of the instrument is made of special glass and high polymer materials, which are processed finely to prevent oil leakage and corrosion;
6. The unique high-voltage sampling design of the instrument allows the test value to enter the A / D converter directly, avoids the error caused in the analog circuit, and makes the measurement result more accurate;
7. The instrument has over-current, over-voltage, short-circuit and other protection functions, and has strong anti-interference ability and good electromagnetic compatibility;
8. Can switch between Chinese and English at will to meet the needs of any customer;
9. The instrument itself has data analysis function to assist the staff to determine the oil quality;
10. USB or RS232 data transmission(Selective configuration);
