100kv 0.5% High Accuracy AC DC Voltage Divider
Wuhan NANR Electric Co., Ltd.- After-sales Service:Yes
- Warranty:1 Year Warranty
- Mass Scope of Workpiece:Around 7.8kg
- Type:Universal Testing Machine
- Accuracy Grade:0.1%
- Control:Manual Control
Base Info
- Model NO.:FRC-100kV
- Weight:0-100Kg
- Power Source:DC
- Rated Voltage:AC: 100kv, DC: 100kv
- Accuracy:AC: 0.5%, DC: 0.5%
- DC Frequency:< 2Hz
- AC Frequency:30 ~300Hz
- Voltage Ratio:1000:1
- Impedance:1200 Megaohm
- Voltage Capacitance:180PF
- Measuring Range:Low Range :0~20kv, High Range: 20~100kv
- Relative Humidity:< 85%
- Operating Temperature:0 ~ 45 Centigrade
- Transport Package:Plywood Case
- Specification:220*220*110
- Trademark:NANR
- Origin:Wuhan China
- HS Code:9030331000
- Production Capacity:1000 Sets Per Year
Description
Basic Info.
Model NO. FRC-100kV Weight 0-100Kg Power Source DC Rated Voltage AC: 100kv, DC: 100kv Accuracy AC: 0.5%, DC: 0.5% DC Frequency < 2Hz AC Frequency 30 ~300Hz Voltage Ratio 1000:1 Impedance 1200 Megaohm Voltage Capacitance 180PF Measuring Range Low Range :0~20kv, High Range: 20~100kv Relative Humidity < 85% Operating Temperature 0 ~ 45 Centigrade Transport Package Plywood Case Specification 220*220*110 Trademark NANR Origin Wuhan China HS Code 9030331000 Production Capacity 1000 Sets Per YearProduct Description
1. Product IntroductionFRC Series High Voltage Divider also known as resistance-capacitance voltage divider, user can select different accuracy according to the requirement of measuring voltage accuracy. The highest accuracy in this series is: AC: 0.5% / DC: 0.5%. FRC high voltage divider is adopted with potential screening high-voltage measuring device, is the latest research and develop product of the fourth generation of patent (Patent Number: ZL 2012 2 0355014.1) in our company, compared to similar products from other companies, we are adopting the filling media which imported from U.S., the internal part of the divider has used several patented shielding technologies, so that the product has a longer life and greater stability.
2. Technical parameters
Voltage grade (kV) | AC: 100 DC: 100 |
DC frequency (Hz) | < 2 |
AC frequency (Hz) | 30 ~300 |
Accuracy (%) | A type: AC: 1.5% / DC: 1.0% B type: AC: 1.0% / DC: 0.5% C type: AC: 0.5% / DC: 0.5% |
Resistance (MΩ) | 1200 |
Voltage capacity (pF) | 180 |
Voltage division ratio | 1000:1 |
Measuring range | 1, Divided into two ranges, high range and low range 2, Low range :0~20kV 3, High Range: 20kV ~ nominal rated voltage |
Insulation medium | Imported dry polymer materials |
Operating temperature range | 0ºC ~ 45ºC |
Relative humidity | < 85%RH, without condensation |
Altitude | < 1500m, higher altitude area can be customized |
Operation area restriction | For indoor usage or outdoor usage which under the fine weather conditions |
Dimension (mm) | 180*180*780 |
Weight (kg) | 7.5 |
3. Product characteristics
(1) With interface to connect with high precision multimeter such as Agilent and Fluke etc, do not need to consider the input impedance;
(2) Light weight, good stability.
(3) High measurement accuracy up to 0.1%.
(1) With high input impedance and good linearity.
(2) Special shield technology is adopted to reduce the influence of high voltage on indicated value, realize high stability and high linearity.
(3) Filling with imported dry polymer materials as insulation material, which makes the product have smaller structure, lighter weight, higher reliability, and the internal partial discharge is reduced to the lowest value.
(4) AC/ DC automatically changed, with functions of over-voltage protection and high voltage flashover protection.
(5) Using low temperature coefficient of resistance and capacity components, there is no adjustable device on the low voltage arm, then there is no vibration to affect the precision.
(6) The product has small volume and light weight, which is easy to carry and brings great convenience for on-site test work.
(7) The measurement system and the high voltage part is completely separated absolutely, measurement is safe and reliable.
4. Calibration certificate

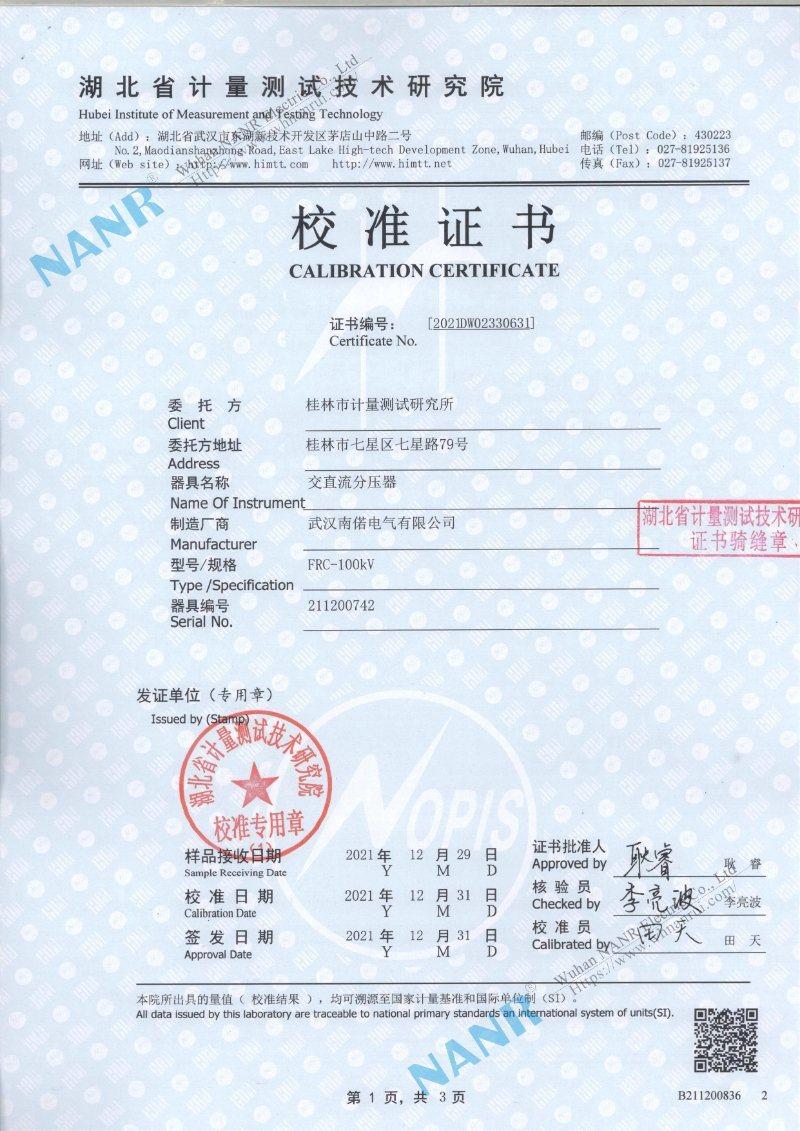

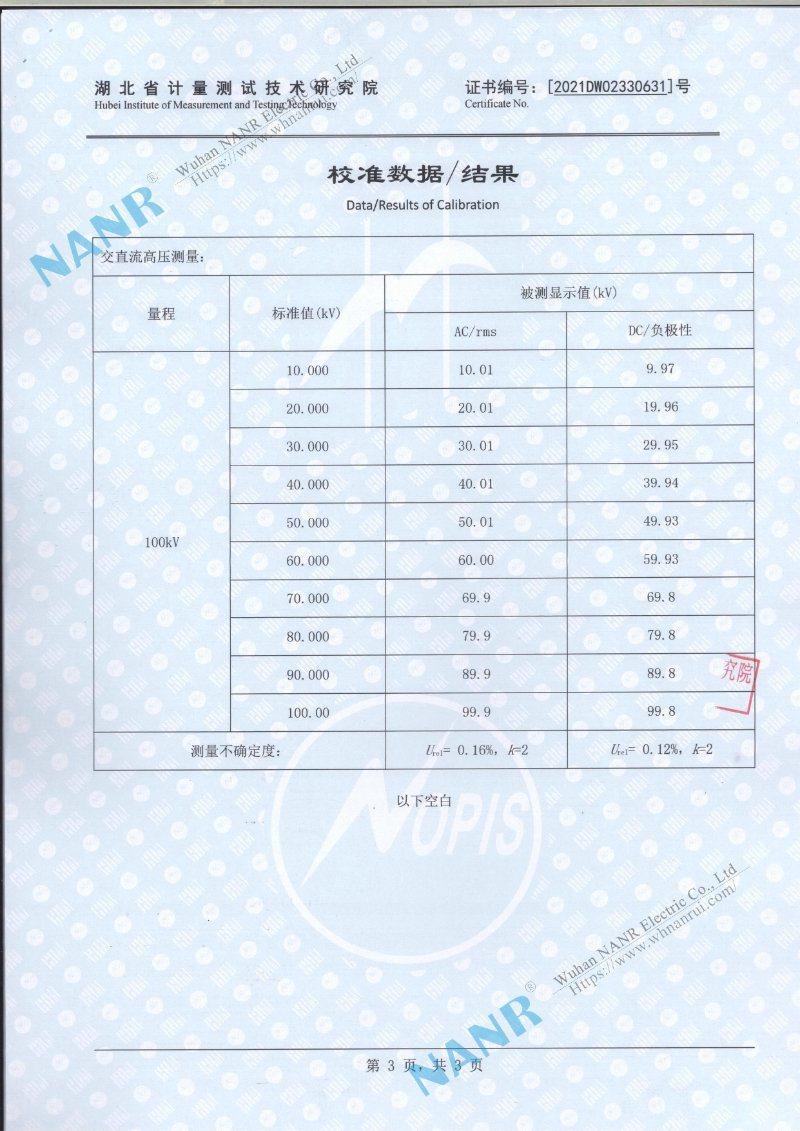

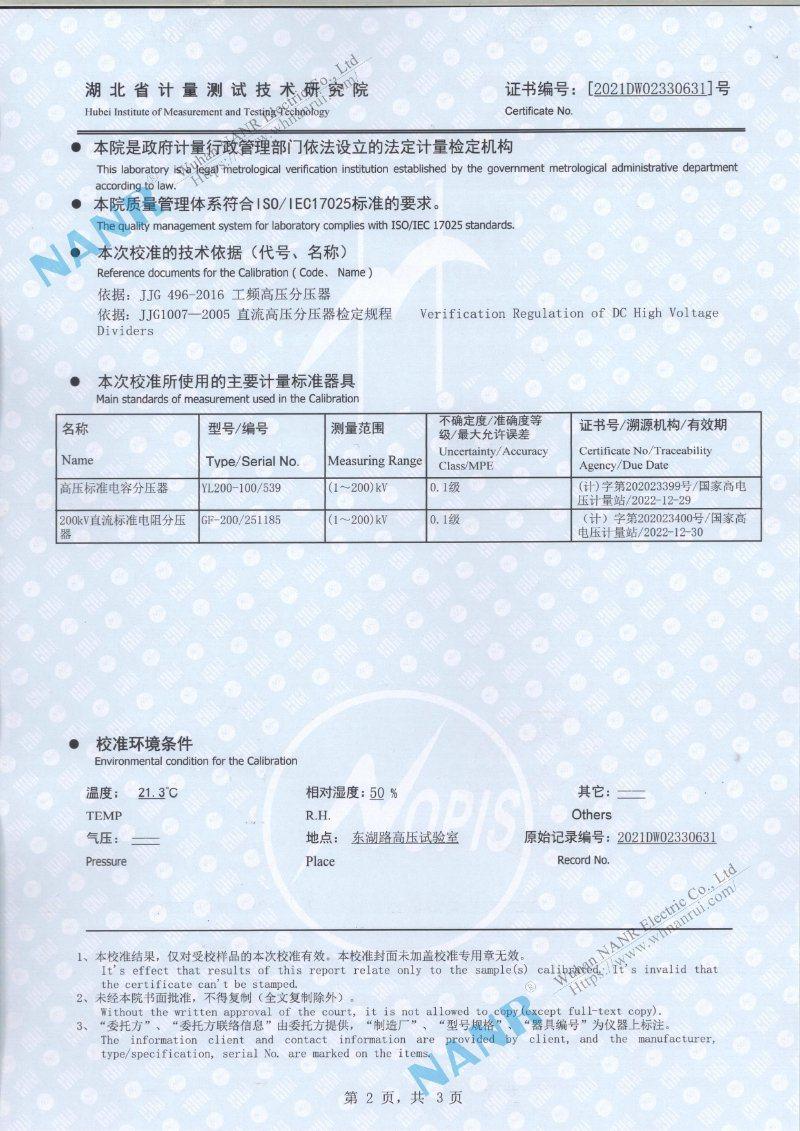

The product had passed the test in Hubei Insititute of Measurement and Testing Technology (National Center for High Voltage Measurement) in 2016 and awarded the calibration certificate.
Remarks:
1. We can send the instruments to the third calibration agency to calibrate according to your requirement;
2. Calibration date: usually around 20 working days.
3. We guarantee our equipment can be passed the calibration, the calibration fee is paid by the customer.
