Factory Direct Sale Portable High Precision Intelligent SF6 Density Relay Calibrator
Wuhan GDZX Power Equipment Co., Ltd.- After-sales Service：Provide lifelong after-sales service
- Warranty：1 Year
- Instrument power：30W
- Instrument accuracy：0.2
- Pressure display resolution：0.001MPa
- Pressure calibration range：0 ~ 1.0 Mpa
Base Info
- Model NO.：ZXMD-2000
- Transport Package：Carton,Wooden Case
- Specification：With the change of technical scheme
- Trademark：GDZX
- Origin：Hubei
- Production Capacity：500 Pieces,Month
Description
Working voltage
AC 220V ± 10% (type A) or built-in working power supply (type B)
Instrument power
30W
Instrument accuracy
0.2
Pressure display resolution
0.001MPa
Pressure calibration range
0 ~ 1.0MPa
Ambient temperature display resolution
0.1 ºC
Ambient temperature measurement range
-40 ºC ~ 80 ºC
Working humidity
≤90% RH
Verification object
Single alarm, single block, single alarm single block, single alarm double block
Display mode
320 × 240 graphic dot matrix monochrome LCD screen
Operation mode
Soft keyboard key input
Printer type
High-speed thermal printer
Printing method
English report printing
Storage capacity
Can store 32 test results at the same time
Dimensions
320 × 240 × 180mm
SF6 gas density display mode
Pressure under the tested environment, equivalent pressure at 20 ºC.
Instrument weight
(Host) 3.5kg

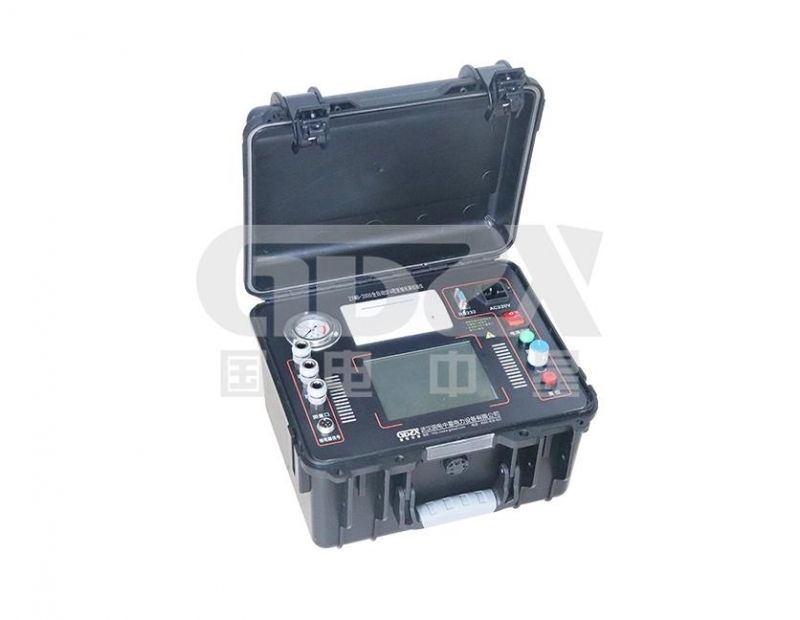

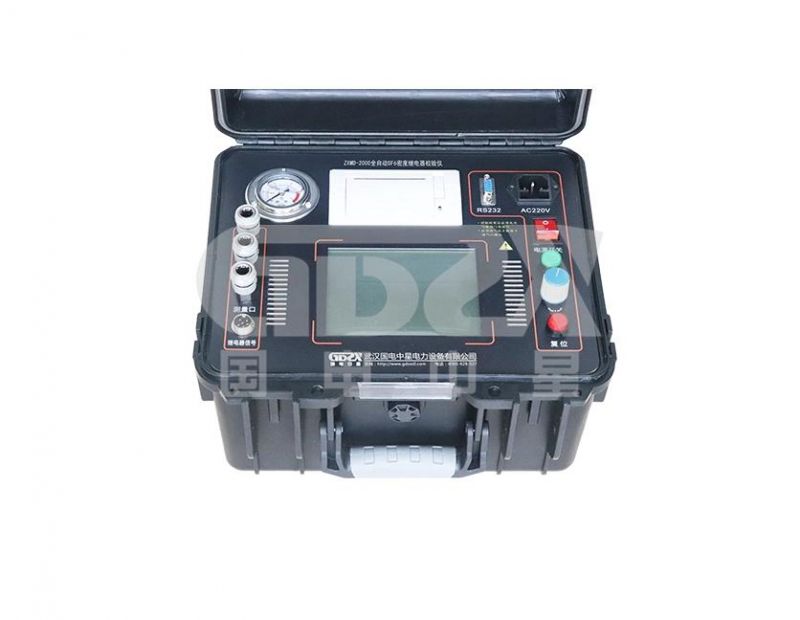

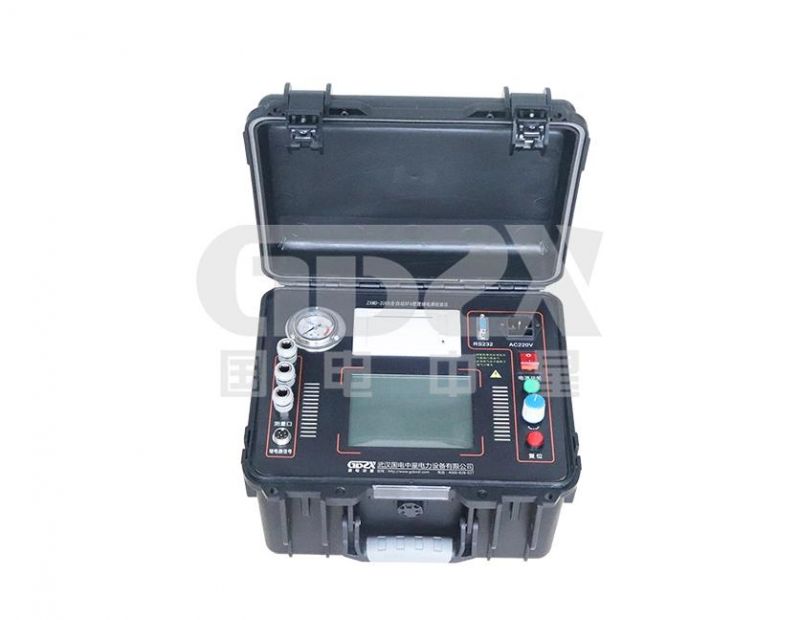

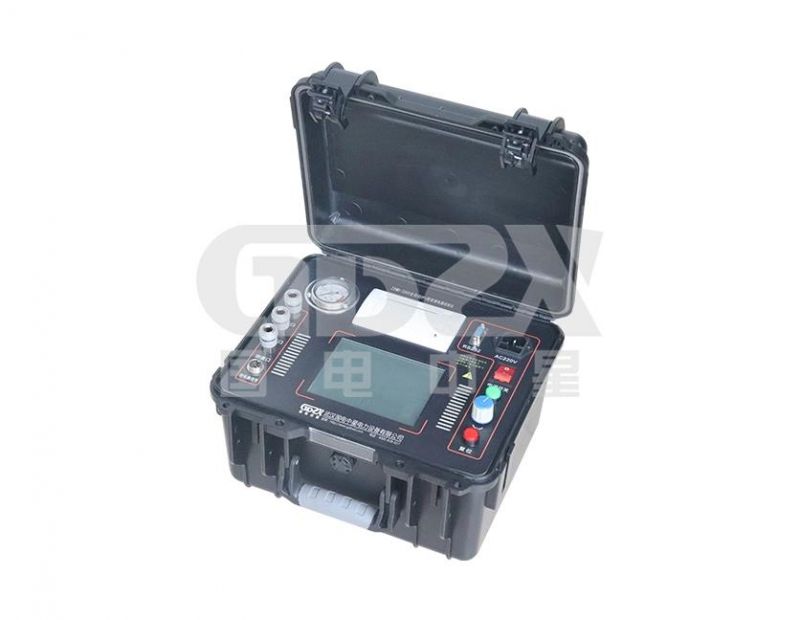

Product picture

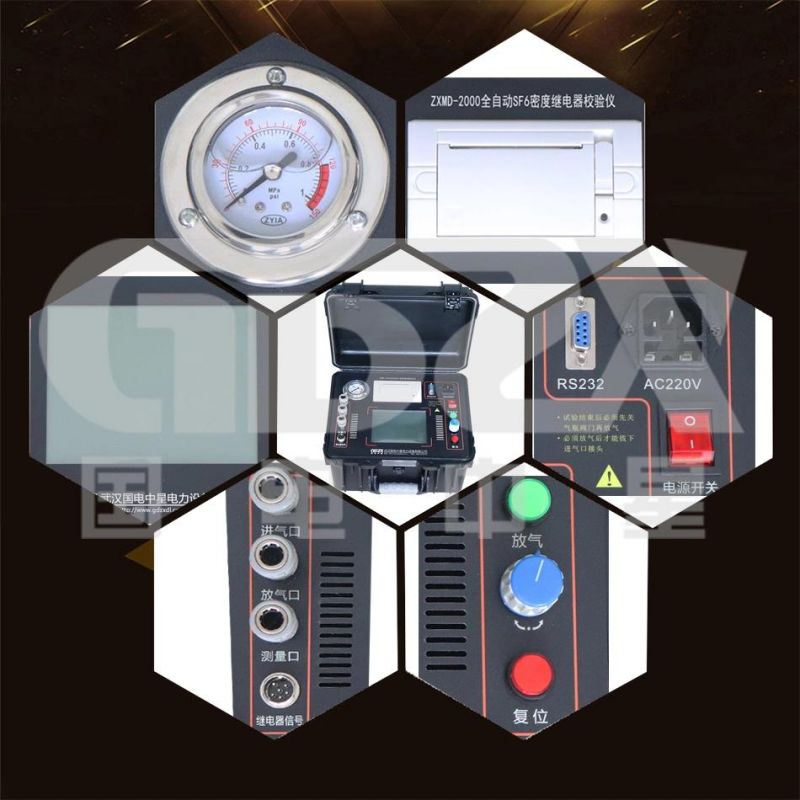

Device display
About GDZX
Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.
