Power Transformer Winding deformation Tester For Internal structure fault of transformer
Wuhan GDZX Power Equipment Co., Ltd.- After-sales Service：Provided
- Warranty：1 Year
- Linear sweep range：(10Hz) - (10MHz) 40000 dots,
- Resolution：0.25kHz, 0.5kHz, 1kHz
- Section sweep range：(0.5kHz) - (1MHz), 2000 dots
- Test range：-120dB to +20dB
Base Info
- Model NO.：ZX-BRY02
- Test accuracy：0.1dB
- Sweep frequency accuracy：0.01%
- Signal output range：+,-20V
- Same phase test reproductivity：99.99%
- Carrying box dimension：410*360*350(mm)
- Total weight：13KG

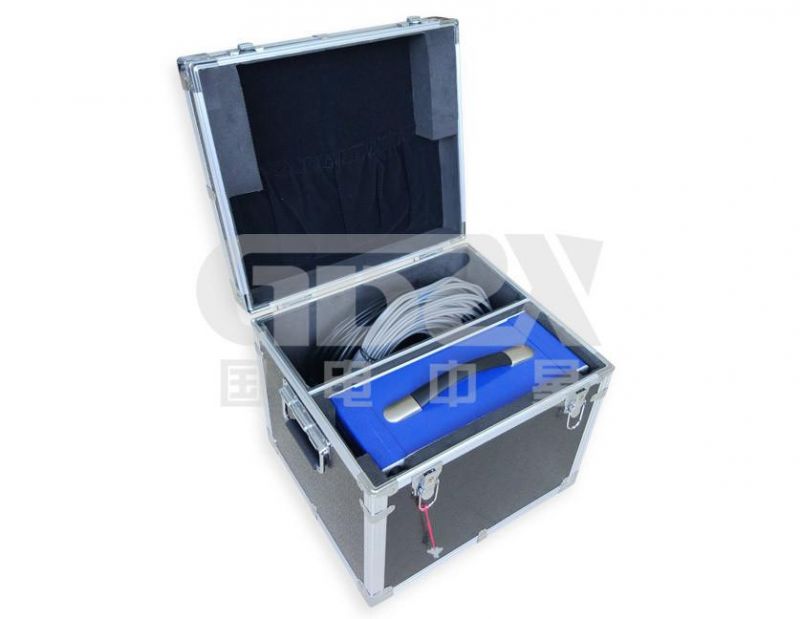

- Transport Package：Wooden Case or Carton
- Specification：Universal Testing Machine
- Trademark：GDZX
- Origin：China
- Production Capacity：1200sets,Year
Description
Features
- In the test process only need to remove the transformer connection bus.
- Sweeping frequency up to 10MHz, scanning interval can be 0.25kHz, 0.5kHz, 1kHz for multiple analysis
- High intelligent, auto range adjustment, auto sampling frequency adjustment.
- Windows platform, compatible with Win98 / 2000 / XP / Win7 / Win8 / Win10 system.
- Historical curve comparison analysis, max 6 curves observation, auto analysis and diagnosis system
- Auto save environment parameters and testing results, color printing function.
- Humanized software design, more convenient to use.
- Auto complete the test after wiring, during the measurement check the historical curves or stop at any time.
- Measurement time less than 60 seconds for every phase, 10 minutes for whole transformer windings.
Technical parameters
- Two sweep methods
- Test range
- Test accuracy
- Sweep frequency
- Signal input impedance
- Signal output impedance
- Signal output range
- Same phase test reproductivity
- Carrying box dimension
- Total weight

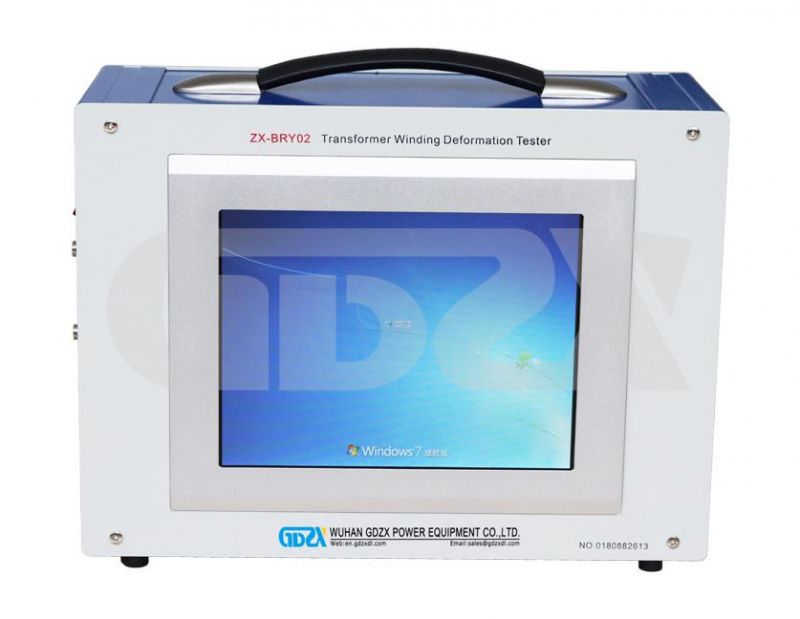

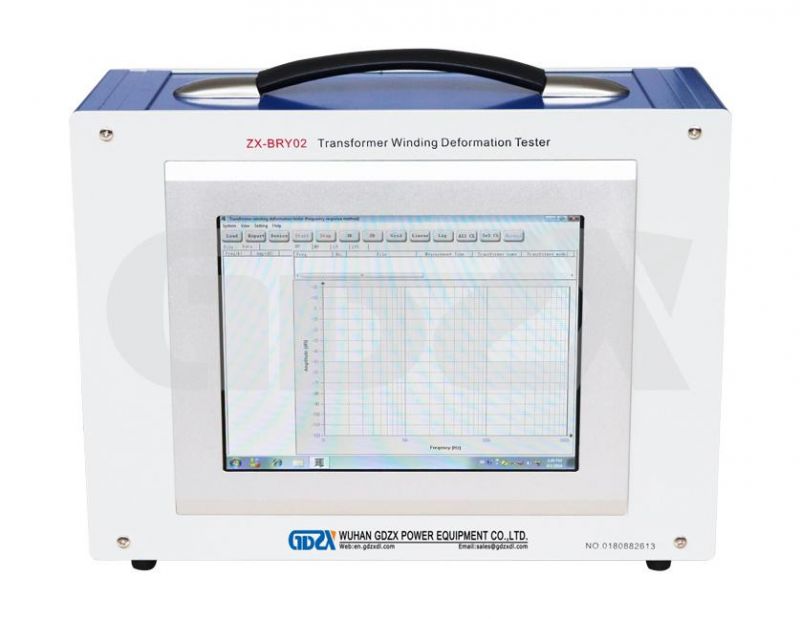

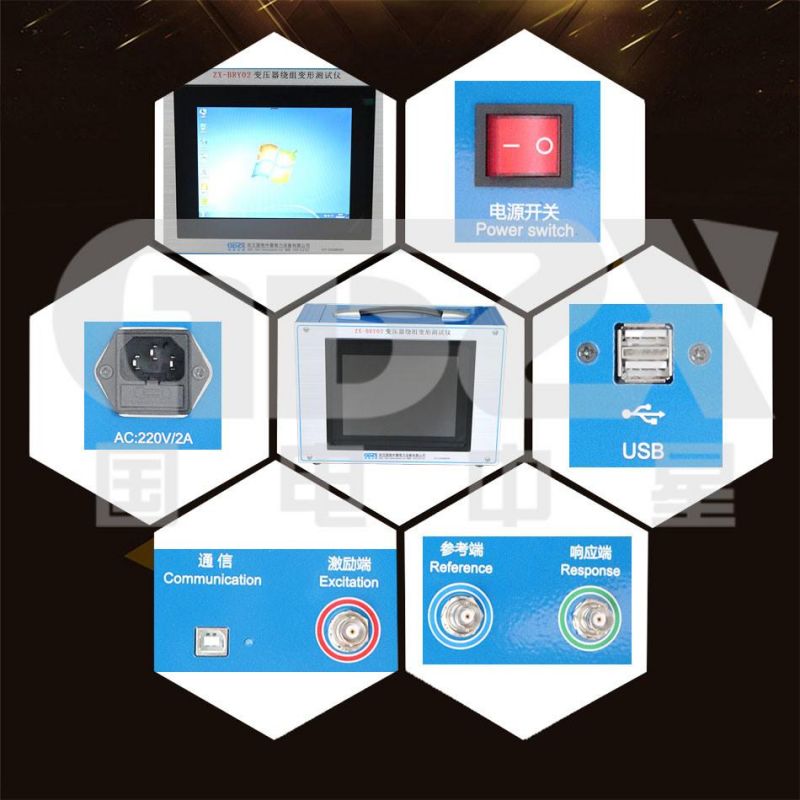

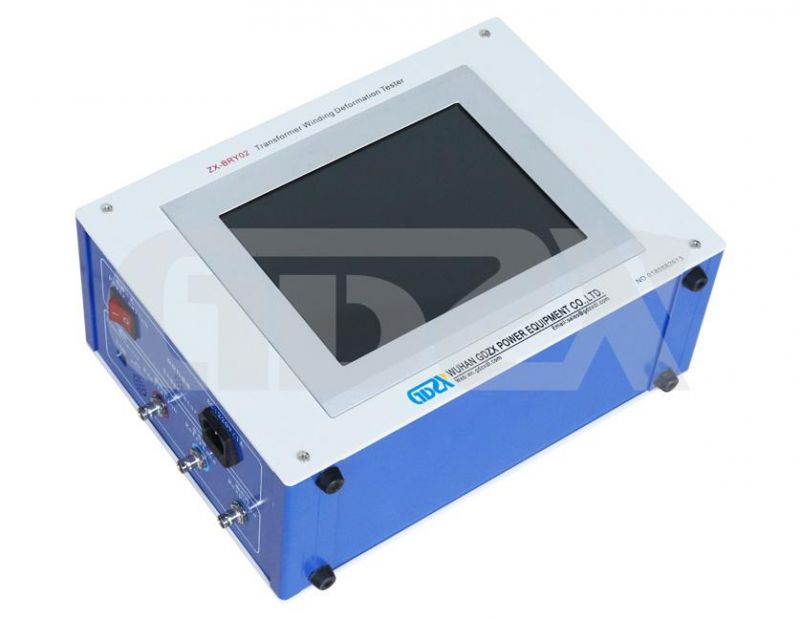

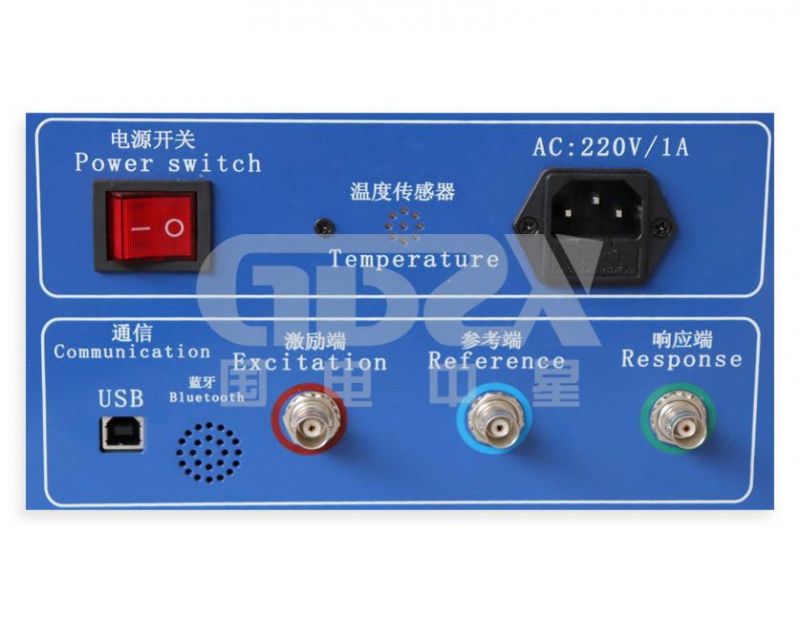

Product pictures
Test cases
Company introduction
Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.
Service and Warranty
Service
* Provide professional consulting service; dedicated salesman and professional technical engineer to answer customer questions.
* Ensure customer get the detailed information about the product in hand.
* Reasonable price, we trust our customers should get the worth what they paid. Quotation stamped and confirmed by Manager.
* Welcome customers visit.
* Being trustworthy, follow the requirements and ensure successful implementation of signed contracts and technical agreements.
* Focus on communication, actively communicate with users, take notes of user's questions and schedule, provide the necessary technical support.
* Move quick and efficient, professional on delivery, installation, debugging, training and others. Warranty* We maintains 100% customer satisfaction, please give us feedback if you fell anything wrong with the product, we will make it right for you.* Our products are guaranteed with one year warranty and life-long tech support.* Provide solutions within 24 hours when there is problems feedback from customer.
PACKING AND SHIPPING
(1)We will ship products within 8-20 working days after the receipt of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.(5)After shipping, we will remain attentive till goods well received. If you need detailed specification, please feel free to contact us.
