• Model NO.：ZXFJ-3
• Transport Package：Carton,Wooden Case
• Specification：With the change of technical scheme
• Trademark：GDZX
• Origin：Hubei
• Production Capacity：500 Pieces,Month

ZXFJ-3 SF6 Decomposition Tester is an intelligent integrated instrument with high sensitivity, stability and easy operation. It can automatically diagnose and put forward treatment suggestions according to the detected concentration, providing a simple and effective means for the early detection of internal faults of SF6 electrical equipment.

1. Intelligent integration, high sensitivity, stability, easy to operate.
2. Automatically diagnose and give treatment suggestions according to the detected concentration.
3. It provides a simple and effective means for early detection of internal faults of SF6 electrical equipment.


Technical Indicators


1. Minimum detection: 0.1ppm
2. Stability: when the temperature changes from 20ºC to 40ºC, the maximum zero drift is ≤±0.1ppm
3. Technical indicators: SO2:0 ~ 100 µ L/L
                                      H2S: 0 ~ 100 µ L/L
                                      CO: 0 ~ 500 µ L/L
4. Resolution: 0.01ppm
5. Repeatability: ≤±0.2ppm
6. Accuracy: ±0.5%
7. Response time: the maximum time shall not exceed 5min
8 pressure: the pressure of the instrument pipeline is not less than 1MPa
9. Temperature range: -40ºC~+50 ºC
10. Humidity range: ≤95%RH
11 atmospheric pressure: 86kPa~106kPa
12. Self-provided power supply: AC/DC dual use, built-in rechargeable battery, can be used for 5 hours after full
13. Size: 340*200*120mm
14. Weight: 6.5Kg
15. Data export: USB

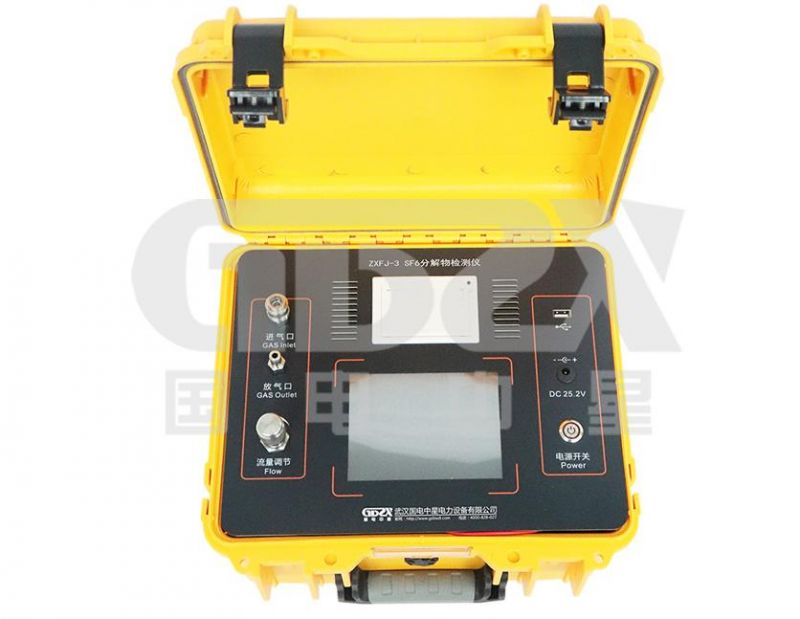

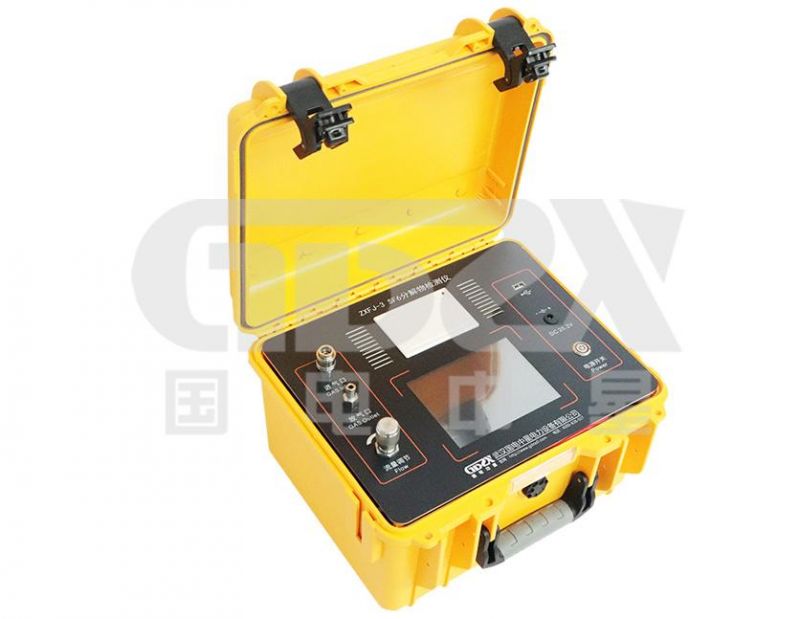

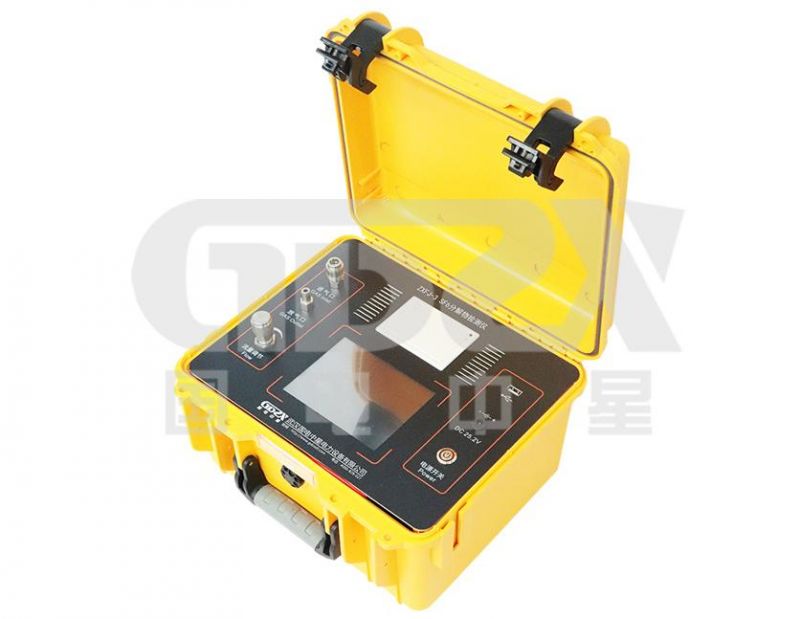

Product pictures

Device display
