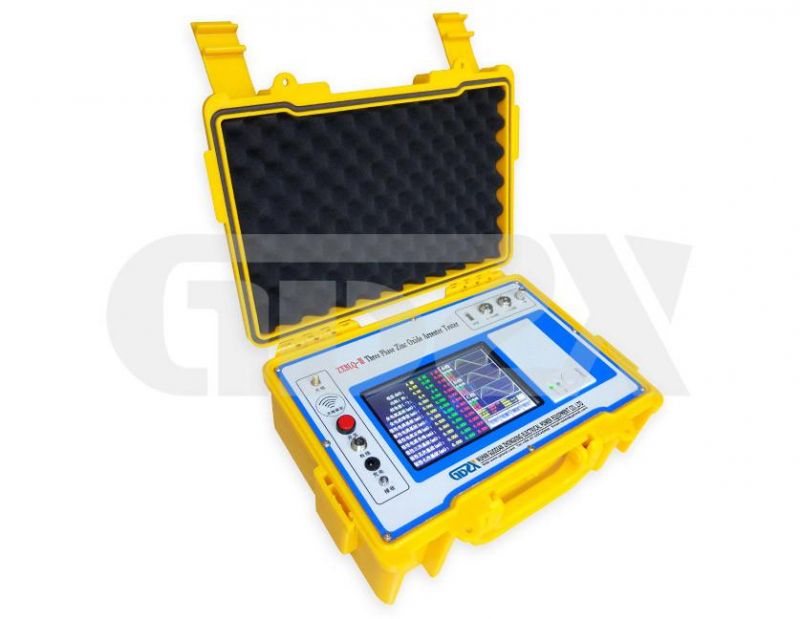

30-100V Anti-interference AC Three Phase Wireless Zinc Oxide Arrester Tester
Wuhan GDZX Power Equipment Co., Ltd.- After-sales Service：Provided
- Warranty：1 Year
- Power supply：support external power adapter (12V,2A)
- Leakage Current Range (peak)：0-10mA (extensible)
- Voltage range：30-100V(extensible)
- Sync with cable：40 meters (can be extended)
Base Info
- Model NO.：ZXBLQ-III Series
- Wireless sync：> 400 meters (can be extended)
- Battery Charging time：> 6 hours
- Battery Continuous working time：> 4 hours
- Host dimension：36*26*14cm, Accessory box dimension:42cm*33*20cm
- Transport Package：Wooden Case or Carton
- Specification：Universal Testing Machine
- Trademark：GDZX
- Origin：China
- Production Capacity：1200sets,Year
Description
Technical parameters
4.Testing parameters2)RMS and Peak Value of Fundamental Wave
3)RMS of Fundamental Component for Resistive Leakage Current and 3, 5, 7 times RMS
5)Capacitive Current Fundamental Wave, Phase angle difference of Total Voltage and Total Current
6)PT Voltage RMS
7)Power Consumption of Arrester
2)Wireless sync:> 400 meters (can be extended)
2)Continuous working time> 4 hours
3)Discontinuous working hours> 8 hours
Accessory box dimension: 42cm * 33cm *20cm
Test cases
Company introduction
Service and Warranty
PACKING AND SHIPPING

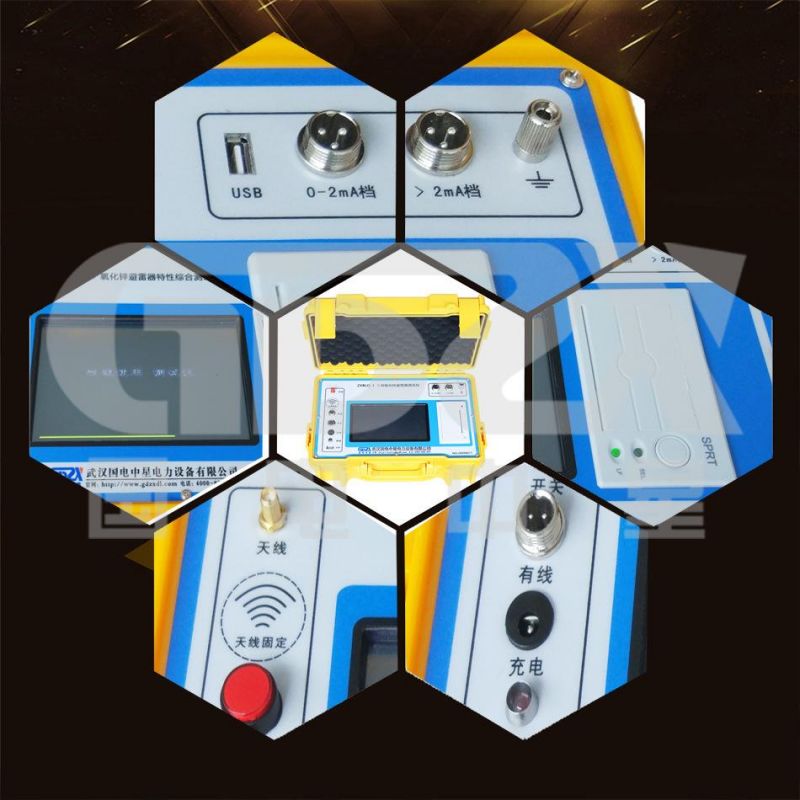

Features
1. 800* 480 color LCD touch screen and high speed thermal printer.
2. Long distance wireless transmission. PT signal wireless transmission distance more than 400 m, up to 2000 m;
3. Applicable for arrester de-energized test, energized test and lab room test.
4. Three-phase current and three-phase voltage test simultaneously, current and voltage sensor is isolated, safe and reliable.
5. Two signal sampling methods, support no voltage mode, software calculation to get voltage reference
6. Built in high energy lithium battery, And only weak current inside the instrument, voltage is less than 12 volts.
7. Equipped with industrial grade operating system, support direct shun-down mode
8. With 4G SD card, can store massive testing data
9. With USB interface
10. Advanced data processing, system support historical data management, data analysis, report automatic generation&printing
11. High sampling rate, advanced digital signal processing technology, high anti-interference performance and high precision.
12. With dust-proof, waterproof, anti-corrosion engineering seal box package, small volume, light weight and portable.
