• Model NO.：ZC-203A
• Loading Method：Static Load
• Display：Digital
• Control：Manual Control
• Weight：7kg
• Power Source：220V
• Oil Cylinder Position：None
• Frequency：50,60Hz
• Input Voltage：185VAC~250VAC
• Warranty：1 Year
• Allowable Frequency：45Hz~65Hz
• Input Power：40va
• Transport Package：Wooden Box
• Specification：400*290*170mm
• Trademark：KvTester
• Origin：China
• HS Code：9031809090
• Production Capacity：500,Month

TypeZC-203AFunctionTransformer ratio, group, polarity testWorking powerInput voltage185Vac~250VacAllowable voltage85Vac~264VacFrequency50/60HzAllowable frequency45Hz~65HzInput power40VAJointStandard AC socket 60320Measuring rangeRatio test range1~9999.9Group test range1~12Test accuracyAccuracy1~999.99:0.2%;1000~9999.9:0.5%Environment conditionOperating temperature0ºC~+40ºCResolving powerRelative humidity:5%~95%,No dewAccuracy0.2%±0.001AFrequencyRange45Hz~65HzResolving power0.001HzAccuracy0.2%±0.001HzPowerRange0~39kWResolving power0.001kWAccuracy<±0.5%(CosΦ>0.1),±1.0%(0.02<CosΦ<0.1)Capacity test range10kV Dry type transformer30kVA~3150kVA10kV Oil immersed transformer30kVA~31500kVA35kV Oil immersed transformer50kVA~31500kVA20kV Dry type transformer50kVA~2500kVA35kV Dry type transformer50kVA~2000kVAEnvironment conditionOperating temperature-10ºC~+50ºC Storage temperature-25ºC~+70ºCPhysical characteristicsSize400×290×170mm3Weight≈7kg (Do not include attachments)

 Accessory List

No.

Device name

Number

1

Instrument

1set

2

Power line

1piece

3

Test line

1set

4

Product manual

1copy

Features

1.English menu prompts, easy to operate;
2. The measurement range of ratio:1-9999.9;
3. Powerful: both single phase measurement can be achieved, but also to achieve the automatic test of three-phase windings, the connection group can be arbitrarily selected,once the completion of the measurement of AB, BC, CA three-phase variable ratio, error,
line group parameters;
4.Fast measuring speed;
5.Once the measurement is completed, automatic cut off the test power;
6.Set data, automatic measurement results, can view the previous data;
7.Test transformer on-load, only need once input ratio;
8.Easy to carry, suitable for field operations

Why Choose us?

1) Owning core technology and advanced equipment with our own Technology Dept.;

2) On-line operation guidance and professional technical support ability.

3) Good quality can be ensured by our Professional QC team with competitive price.

   State Grid Corporation of China is one of our customer!

4) Certifications are available.

5) OEM Service Offered.

6) Design Service Offered.

7) Small trial order can be accepted to see our quality and service.

8) Standardization, effectiveness and timeliness of the pre-sale, in-sale and after sales service.


Company Information

Kvtester Electronics Technology Co.,Ltd is the supplier of the State Grid in China. It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.

Our main products are CT PT Analyzer, Protection relay Tester, Transforer test equipment, Circuit Breaker Analyzer, Insulation Oil Tester, Cable Fault Locator, Series Resonant/Voltage-withstand Test Equipment, Secondary/Switch Test Equipment, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.

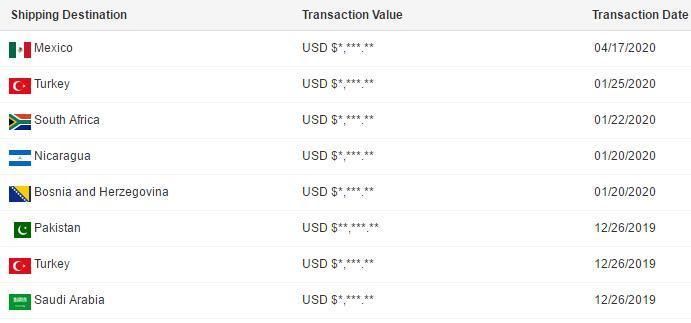

Transaction details



FAQ

1. Is it all right to make customer's own brand name?

Yes, we can provide OEM service.

2. Are you a manufactuer or trading company?

We area leading manufacturer in China.

3. Can you do the design for us?

We can provice personalized customization service.

4. When Can I get the Price?
We usually quote within 6hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.


5. What should I do if I do not know how to use?

Dear customer, please do not worry, manual user will be sent together, you can also contact us with more technical  support and online guidance.

6. How can I choose the suitable one?

Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.

7. Could you please tell me the Warranty period of your products?
Our warranty period is one year free and lifelong maintenance, and if the product we sell is damaged (if not man-made damage), in the first year, we will send free parts for free replacement.
Over the warranty, the maintenance is paid service.

8. Do you have Technical Backup to all customers from different customers?
To be surely, our technical support is always available and quick response.
We are manufacture of so much on site testing experience and understand how to deal with your problems. Moreover, our engineer can go to your country to support if need.
