• Model NO.：ZC-302A-011
• Loading Method：Static Load
• Display：Digital
• Control：Manual Control
• Weight：7kg
• Power Source：220V, 50Hz
• Oil Cylinder Position：None
• Continuous Working Time：5s ~ 599s
• Warranty：1 Year
• Display Mode：240*128 Chinese LCD
• Transport Package：Standard Box Inside and Wooden Box Outside
• Specification：313mm*270*235mm
• Trademark：KvTester
• Origin：China
• HS Code：903180909
• Production Capacity：500,Month

Basic Info.

Model NO. ZC-302A-011 Loading Method Static Load Display Digital Control Manual Control Weight 7kg Power Source 220V, 50Hz Oil Cylinder Position None Continuous Working Time 5s ~ 599s Warranty 1 Year Display Mode 240*128 Chinese LCD Transport Package Standard Box Inside and Wooden Box Outside Specification 313mm*270*235mm Trademark KvTester Origin China HS Code 903180909 Production Capacity 500/Month

Product Description

Brief Introduction

ZC-302A Contact Resistance Testermeasures up to the latest power system standards--DL/T845.4-2004 designed for measuring loop resistance of Switching Control Tester using High-frequency switching power supply technology and digital circuit technology. Test current of the Tester is 50A, 100A,150A, 200A which is recommended in the national standards. The tester can measure the loop resistance at those values and display results in digital. It is high precision and good stability and can meet most power systems' requirements in onsite high-voltage switches maintenance and high-voltage switches factory loop resistance measurement. (It performances accurately and stably)

Features

1. High current switching power supply: using the latest technology, continuous output large current for a long time, overcomes the drawbacks of pulse power supply transient current, breakdown can switch contact film effectively and get good test results;

2. High stability: under severe interference conditions, the last bit of LCD screen data can be stabilized in the range of ±1 word, reading, stability, good repeatability;

3. High precision: the dual high-speed 16 bit Σ-Δ AD sampling, the digital signal processing technology, the highest resolution of 0.01μΩ, is currently the only contact resistance tester can reach 0.01 ohm resolution and very stable, performance more than the imported high current micro ohmmeter;

4. Intelligent: the use of imported high-performance CPU, measuring system according to the size of the signal automatically switch range, to ensure the accuracy of the test of the product. The over temperature protection circuit can automatically stop the output current when the instrument exceeds the set temperature, so as to ensure the safe use of the instrument;

5. High quality: the key parts are made of imported components, eliminated by the temperature compensation circuit clever design of the effective influence of environmental temperature on the measurement results, the use of military connectors to enhance the anti vibration performance;

6. Powerful: current available in freedom of choice 100A and 50A, the test time can be set in the 5S ~ 599s arbitrary, overcomes the shortcomings of other similar instruments cannot set the measurement time or continuous work time is too short for defects, far more than the performance of other similar instruments;

7. Friendly man-machine interface: through the rotation of the mouse input data, convenient and quick, you can set the instrument date, time, real-time preservation of measurement data, real-time print measurement results.

8. A variety of communication methods: through the RS232 serial port (9 pins) or USB data lines and computer communications, the data will be uploaded to the computer for further analysis of the test personnel

9. Easy to use: small size, light weight, easy to carry.

Product Parameters

Measuring range	0~2999.9μΩ
Resolution power	0~99.99; 0.01μΩ,100.0~2999.9; 0.1μΩ
Test current	fixed output of DC50A, 100A
Measurement accuracy	±(0.2%rd+2d)
Continuous working time	5s~599s
Display mode	240×128 Chinese LCD
Communication mode	RS232 serial port or USB (optional)
Working power supply	AC220V±10% 50Hz
Power	>500W
Maximum storage record	200
Working environment	temperature:-10ºC~40ºC; humidity:≤80%RH
Volume	313mm×270mm×235mm
Weight	7kg(No attachments)



Why Choose us?

1) Owning core technology and advanced equipment with our own Technology Dept.;

2) On-line operation guidance and professional technical support ability.

3) Good quality can be ensured by our Professional QC team with competitive price.

   State Grid Corporation of China is one of our customer!

4) Certifications are available.

5) OEM Service Offered.

6) Design Service Offered.

7) Small trial order can be accepted to see our quality and service.

8) Standardization, effectiveness and timeliness of the pre-sale, in-sale and after sales service.

Company Information

Kvtester Electronics Technology Co.,Ltd is the supplier of the State Grid in China. It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.

Our main products are CT PT Analyzer, Protection relay Tester, Transforer test equipment, Circuit Breaker Analyzer, Insulation Oil Tester, Cable Fault Locator, Series Resonant/Voltage-withstand Test Equipment, Secondary/Switch Test Equipment, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.

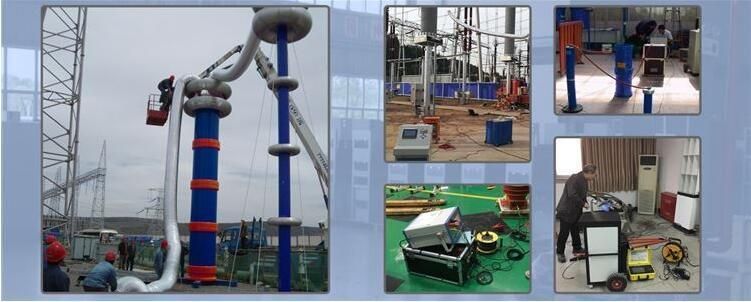

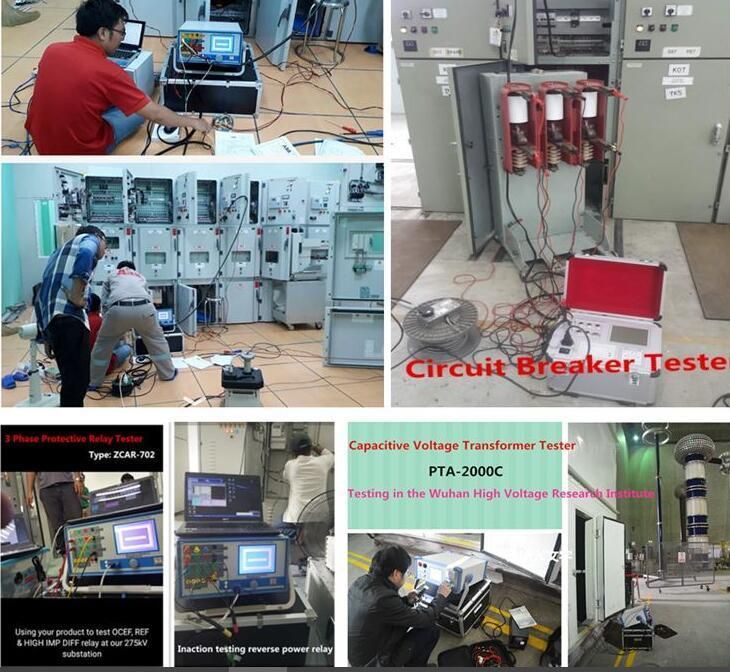

Field Test & Service

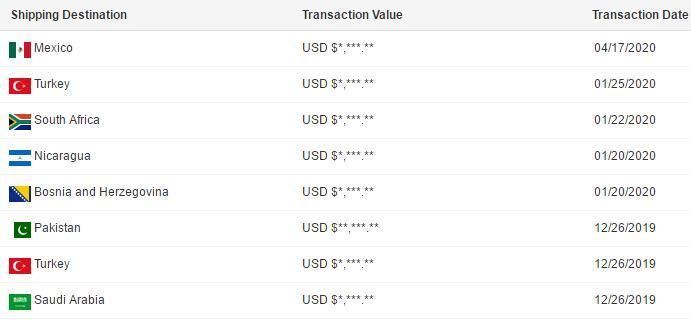

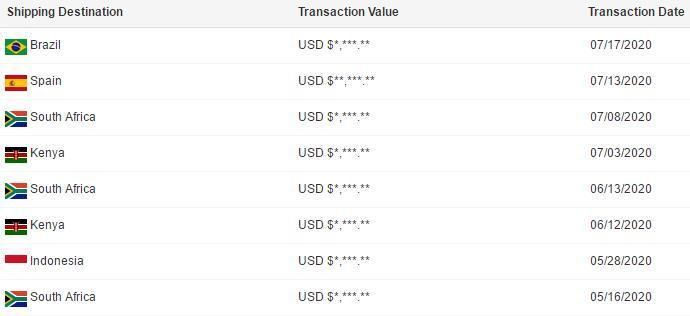

Transaction details



FAQ

1. Is it all right to make customer's own brand name?
Yes, we can provide OEM service.

2. Are you a manufactuer or trading company?
We area leading manufacturer in China.

3. Can you do the design for us?
We can provice personalized customization service.

4. When Can I get the Price?
We usually quote within 6hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.


5. What should I do if I do not know how to use?
Dear customer, please do not worry, manual user will be sent together, you can also contact us with more technical  support and online guidance.

6. How can I choose the suitable one?
Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.

7. Could you please tell me the Warranty period of your products?
Our warranty period is one year free and lifelong maintenance, and if the product we sell is damaged (if not man-made damage), in the first year, we will send free parts for free replacement.
Over the warranty, the maintenance is paid service.

8. Do you have Technical Backup to all customers from different customers?
To be surely, our technical support is always available and quick response.
We are manufacture of so much on site testing experience and understand how to deal with your problems. Moreover, our engineer can go to your country to support if need.
