• Model NO.：RHC4-A
• Result：Read and Counting
• Product Name：Non-Destructive Brick Test Rebound Hammer
• Transport Package：Standard Export Packing
• Specification：Stainless Steel
• Trademark：civiittest
• Origin：Zhejiang, China
• HS Code：9031809090
• Production Capacity：100pieces,1month

Basic Info.

Model NO. RHC4-A Result Read and Counting Product Name Non-Destructive Brick Test Rebound Hammer Transport Package Standard Export Packing Specification Stainless Steel Trademark civiittest Origin Zhejiang, China HS Code 9031809090 Production Capacity 100pieces/1month

Product Description

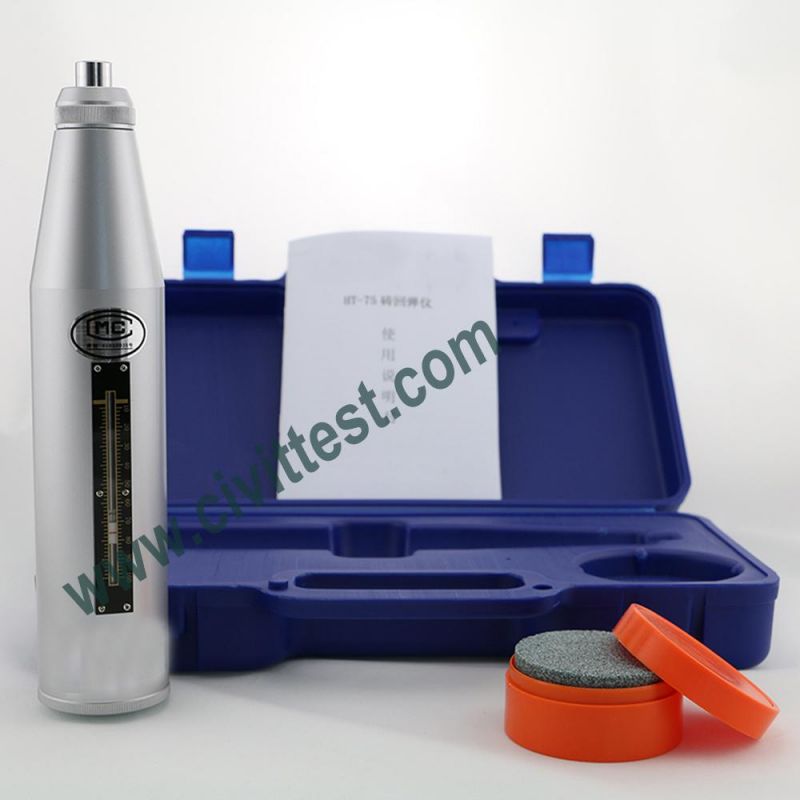

Non-destructive Brick Test Rebound Hammer

I. Use
It is used to determine the instantaneous elasticity distorts and recoils distance. by a spring to drive the hammer and drive the concrete surface through drawbar and make the test hammer drive dial rebound and indicate the recoil distance. Treat the rebound value (the rate of rebound distance and the distance between test hammer and drawbar before impacting, indicate as percentage) as one relative indexes of the concrete compressive strength. It is used to determine the compressive strength for brick, light weight concrete, other light material.
II. Standard
ASTM C 805, BS 1881:202, NF P18-417, DIN 1048, UNI 9189
III. Technical Specification

1. Impact energy: 0.735J

2. Rebound hammer impact length: 75±0.3mm

3. Needle friction force: 0.5±0.1N

4. Needle length: 20.0mm

5. Spheric radius of elastic stem: 25±1mm

6. Stiffness of elastic pullback spring: 785.0N/m

7. Elastic pullback spring length: 61.5±0.3mm

8. Elastic hammer impact length: 75.0mm

9. Riveting stake calibrate rate: 74±2

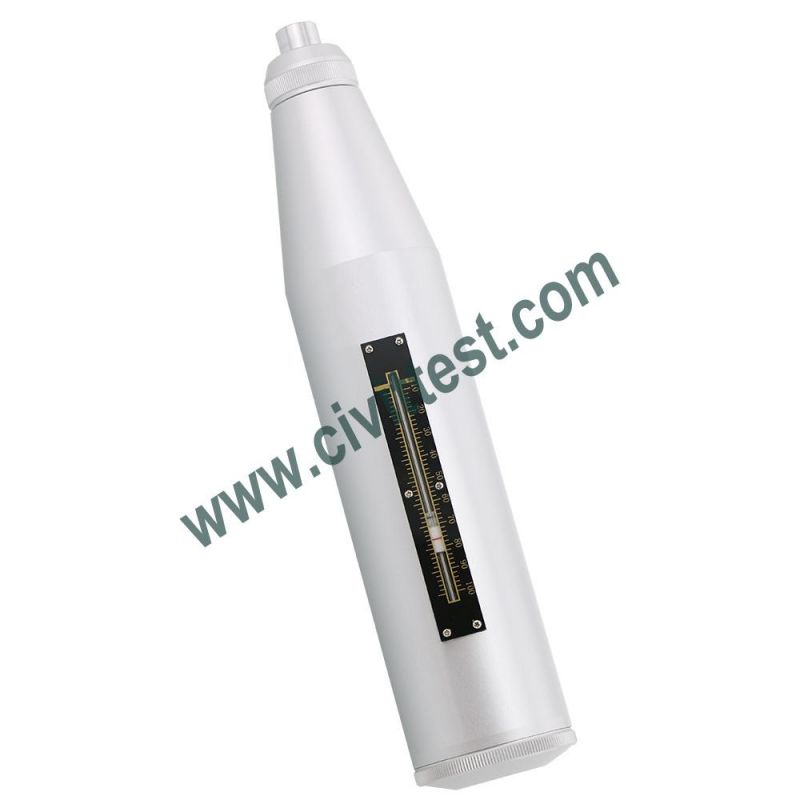

Non-destructive Brick Test Rebound Hammer

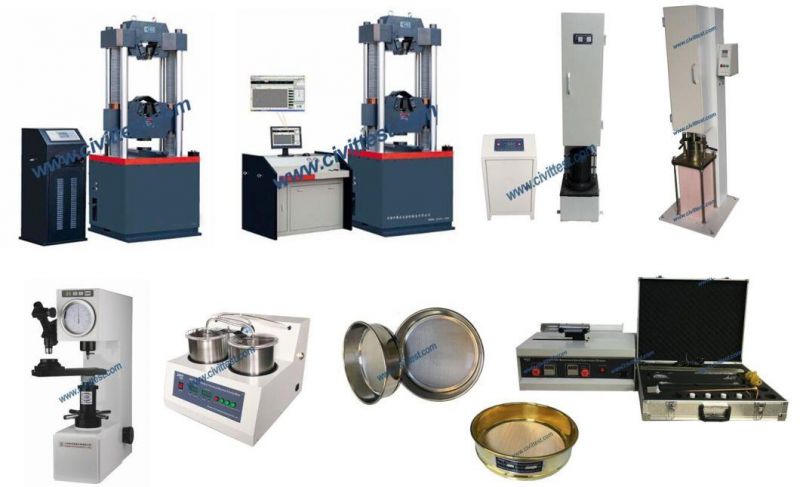

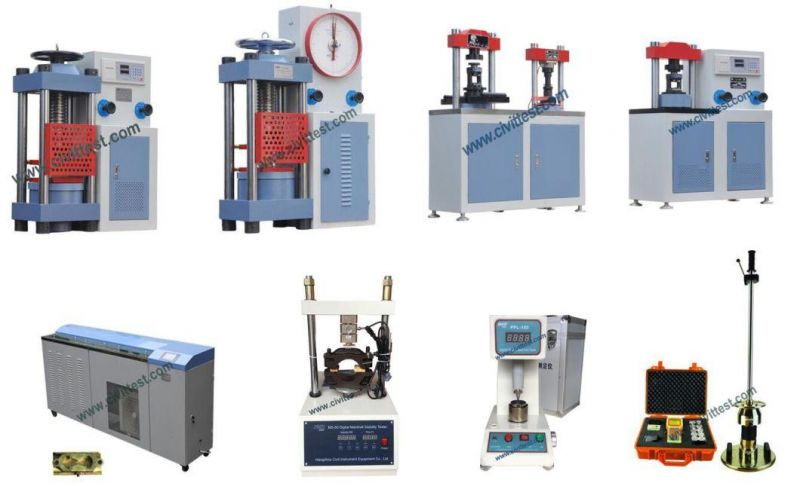

 III. Company Product
1. Drying, weighing and Grading Equipment and tools.
2. Soil, Rock Testing Equipment.
3. Aggregate Testing Equipment.
4. Concrete Testing equipment.
5. Cement and Mortar Testing Equipment.
6. Asphalt Bitumen Testing Equipment.
7. Steel Testing Equipment.
8. Survey Instrument and Detector.
9. General Lab Equipment and Tools.
10. Scientific Lab Equipment and Tools.



IV. Our services
1. Production:

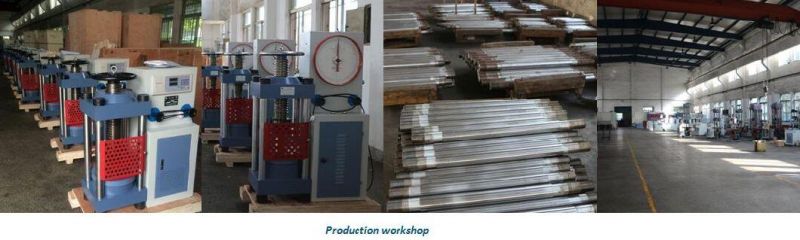

Our factory choose high quality material include steel, stainless steel, circuit board, motor, etc. By strict and efficient production and inspection, products are in high quality and possible low cost.


2. Shipment:
We use 9mm and 15mm thick plywood as packing, heavy machine will be packed in high strength to keep it intact during shipment. We ship goods out from company in shortest time and book fast ship to make sure customer can get goods quickly.


3. After sales:
After shipment, we will delivery shipping documents to customer correctly and quickly. Supply one year warranty for all machines, after one year, we will still supply quick and effective after sales solution.
