• Model NO.：SC-A100-152
• Standard：BS.ASTM
• Display：Digital Display
• Sample Size：101mm, 152mm
• Product：Soil 4inch 6inch Cbr Proctor Mould Rammer Compacto
• Transport Package：9mm and 15mm Plywood Package
• Specification：thick steel
• Trademark：civittest
• Origin：Zhejiang-China
• HS Code：9031809090
• Production Capacity：50 Sets,Month

Basic Info.

Model NO. SC-A100-152 Standard BS.ASTM Display Digital Display Sample Size 101mm, 152mm Product Soil 4inch 6inch Cbr Proctor Mould Rammer Compacto Transport Package 9mm and 15mm Plywood Package Specification thick steel Trademark civittest Origin Zhejiang-China HS Code 9031809090 Production Capacity 50 Sets/Month

Product Description

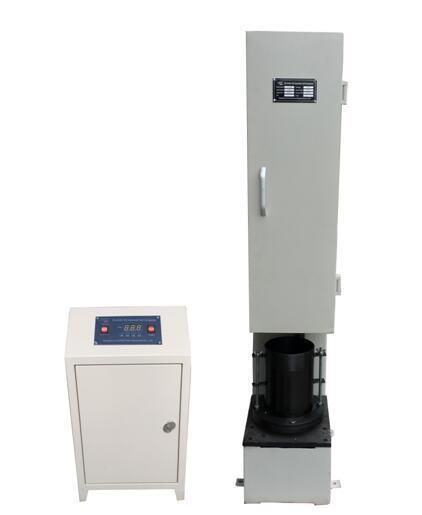

Automatic Soil 4inch 6inch CBR Proctor Mould Rammer Compactor

I. Use
It  used to test relationship between the moisture content and density of compacted soil.

II. Standard
EN 13286-2, -47

III. Technical Specification

Number	Technical	Technical indicators
1	Modify compaction Hammer Weight	4.5KGS
2	Modify hammer Fall Height	457mm
3	Standard Compaction Hammer Weight	2.5Kgs
4	Standard Hammer Fall Height	300mm
5	Compaction Mould	Dia.100mm and Dia.150mm
7	Diameter of hammer head	51mm
8	Compaction Frequency	30times/min.
9	Motor Speed	1440RPM
10	Setting Time	0-99times
11	Power	500W
12	Voltage	380V/220V

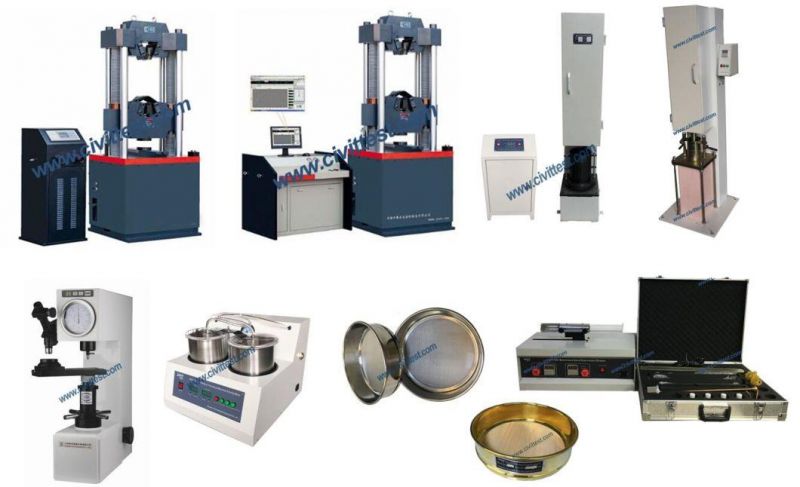

III. Company Product
1. Drying, weighing and Grading Equipment and tools.
2. Soil, Rock Testing Equipment.
3. Aggregate Testing Equipment.
4. Concrete Testing equipment.
5. Cement and Mortar Testing Equipment.
6. Asphalt Bitumen Testing Equipment.
7. Steel Testing Equipment.
8. Survey Instrument and Detector.
9. General Lab Equipment and Tools.
10. Scientific Lab Equipment and Tools.



IV. Our services
1. Production:
Our factory choose high quality material include steel, stainless steel, circuit board, motor, etc. By strict and efficient production and inspection, products are in high quality and possible low cost.


2. Shipment:
We use 9mm and 15mm thick plywood as packing, heavy machine will be packed in high strength to keep it intact during shipment. We ship goods out from company in shortest time and book fast ship to make sure customer can get goods quickly.


3. After sales:
After shipment, we will delivery shipping documents to customer correctly and quickly. Supply one year warranty for all machines, after one year, we will still supply quick and effective after sales solution.
