• Model NO.：CT-PH2000,3000
• Loading Method：Static Load
• Display：Digital
• Control：Computer Control
• Weight：>2000Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Capacity：3000kn
• Power：AC220V,380V,50Hz
• Condition：New
• Warranty：1year
• Standard：BS.ASTM
• Working Principle：Hydraulic Working Pressure Transform to Displayer
• Result：Automatic PC Analysis Result
• Product：Automatic Hydraulic Servo 3000kn Compression Testi
• Transport Package：9mm and 15mm Plywood Package
• Specification：3000KN compression
• Trademark：CIVITTEST
• Origin：Zhejiang China
• HS Code：9031809090
• Production Capacity：30sets,Month

Basic Info.

Model NO. CT-PH2000/3000 Loading Method Static Load Display Digital Control Computer Control Weight >2000Kg Power Source AC220V Oil Cylinder Position Under Capacity 3000kn Power AC220V/380V/50Hz Condition New Warranty 1year Standard BS.ASTM Working Principle Hydraulic Working Pressure Transform to Displayer Result Automatic PC Analysis Result Product Automatic Hydraulic Servo 3000kn Compression Testi Transport Package 9mm and 15mm Plywood Package Specification 3000KN compression Trademark CIVITTEST Origin Zhejiang China HS Code 9031809090 Production Capacity 30sets/Month

Product Description

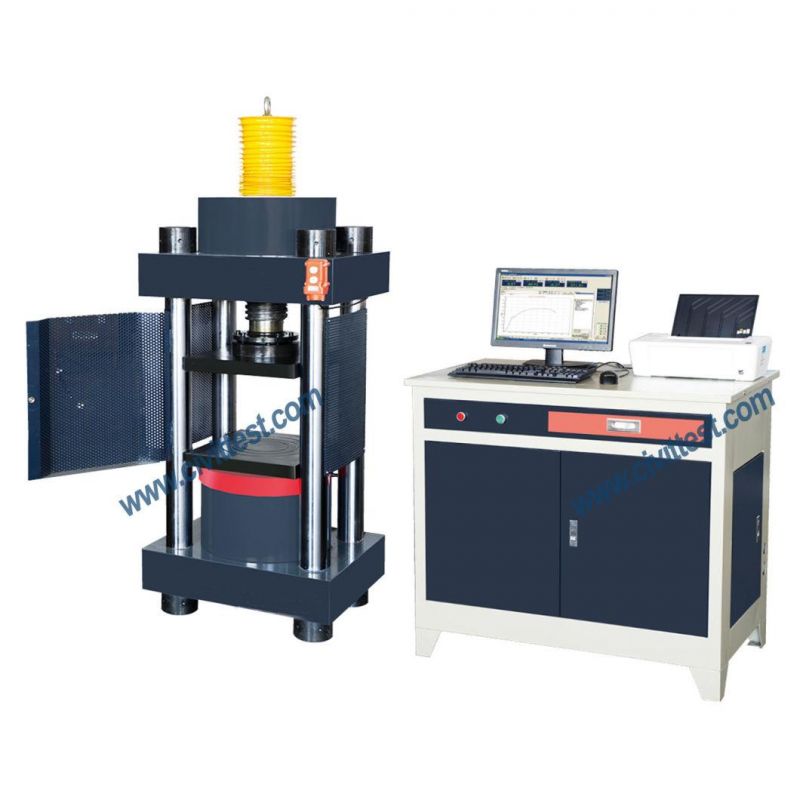

Automatic Hydraulic Servo 2000kn 3000kn Compression Testing Machine

I. Use

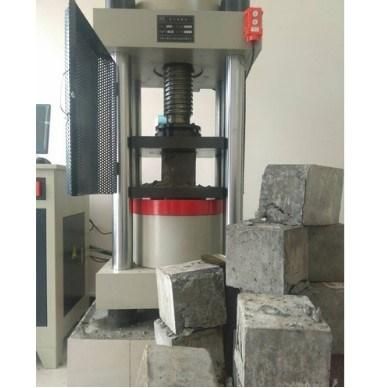

It is suitable for the compressive strength test of building materials such as concrete, cement, airbrick, fire proofing tile, engineering ceramics and building stone, equip safety door.

II. Standard
ASTM D2664, D2938, D3148, D540

III. Technical Specification


Number	Name	Technical indicators
1	Maximum Loading	2000KN, 3000KN
2	Force range	2%~100FS
3	Relative Indication error	≤±1%
4	Screw adjustment method	electric
5	Plate size	400x500mm
6	Vertical Clearance	500mm
7	Max. piston stroke	150mm
8	Piston diameter	Dia.400
9	Hydraulic pump rated pressure	40Mpa
10	Power supply	380V/220V
11	Size	800x800x1800mm
12	Weight	2300kg

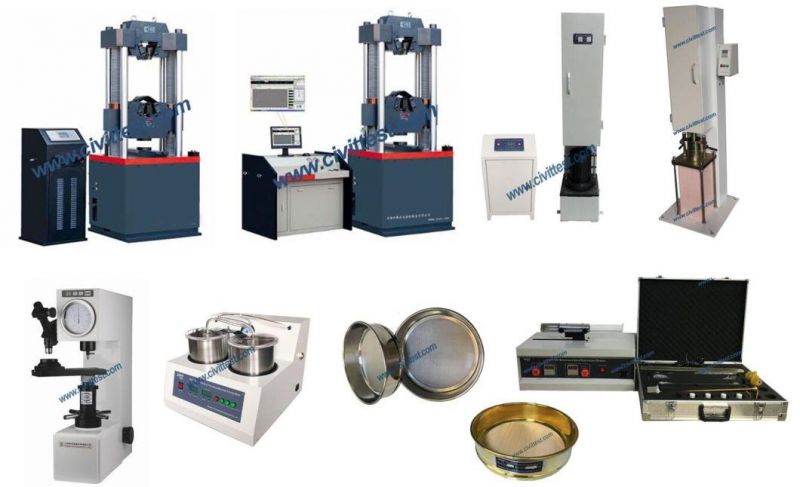

IV. Company Product
1. Drying, weighing and Grading Equipment and tools.
2. Soil, Rock Testing Equipment.
3. Aggregate Testing Equipment.
4. Concrete Testing equipment.
5. Cement and Mortar Testing Equipment.
6. Asphalt Bitumen Testing Equipment.
7. Steel Testing Equipment.
8. Survey Instrument and Detector.
9. General Lab Equipment and Tools.
10. Scientific Lab Equipment and Tools.

V. Our services
1. Production:
Our factory choose high quality material include steel, stainless steel, circuit board, motor, etc. By strict and efficient production and inspection, products are in high quality and possible low cost.


2. Shipment:
We use 9mm and 15mm thick plywood as packing, heavy machine will be packed in high strength to keep it intact during shipment. We ship goods out from company in shortest time and book fast ship to make sure customer can get goods quickly.

3. After sales:
After shipment, we will delivery shipping documents to customer correctly and quickly. Supply one year warranty for all machines, after one year, we will still supply quick and effective after sales solution.
