• Model NO.：YG(B)526B
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Static Load
• Display：Digital
• Control：Manual Control
• Power Source：AC220V
• Friction Head Stroke：200mm
• Speed：30,60 Per Min
• Sample Load Area：420X210mm
• Foam Plastic Gasket: Diameter：105mm
• Transport Package：Export Package
• Trademark：DARONG
• Origin：China
• HS Code：9024800000
• Production Capacity：2000sets,Month

Basic Info.

Model NO. YG(B)526B Accuracy Grade 1 Load Way Electronic Load Loading Method Static Load Display Digital Control Manual Control Power Source AC220V Friction Head Stroke 200mm Speed 30/60 Per Min Sample Load Area 420X210mm Foam Plastic Gasket: Diameter 105mm Transport Package Export Package Trademark DARONG Origin China HS Code 9024800000 Production Capacity 2000sets/Month

Product Description

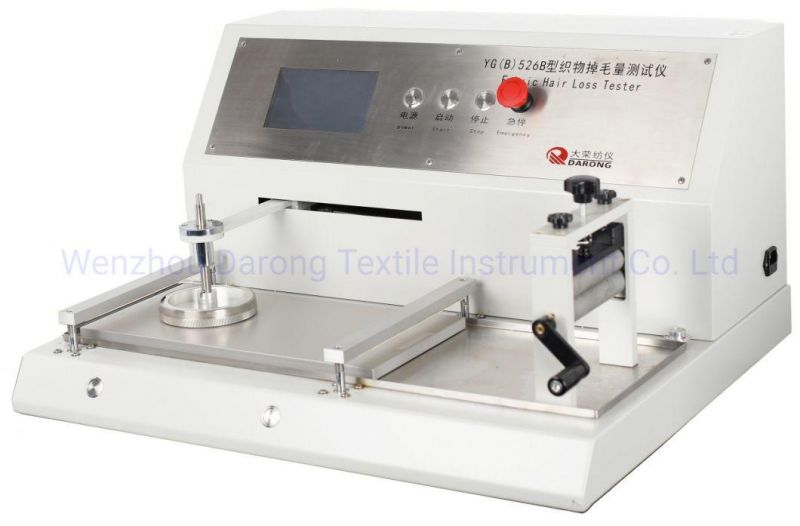

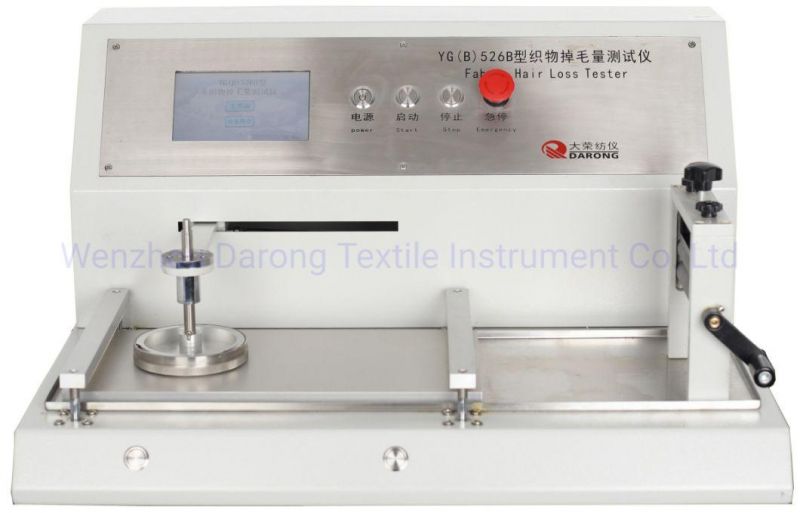

YG(B)526B   Fabric depilation textile surface hair fiber shedding quantity lab testing equipment
[Scope of application] Used for dry and wet friction testing of textile wool loss.

GB/T 40270 General technical requirements for textiles based on consumer experience (National standard drafting unit)
[ Instrument characteristics ]
1, color touch screen, program control can be set;
2, metal button, convenient and stable;
3, the whole wire cutting process stainless steel grinding platform, high level, never deformation;
4, pneumatic clamping, fast and firm.
[ Technical parameters ]
1, friction head stroke: 200mm
2, friction head movement speed: 30/60 times /min
3, round friction head: clamping ring diameter is (90±1) mm
4, sample table size: 420mm×210mm
5, fabric abrasive: white cotton cloth, diameter (113±0.5) mm
6, foam plastic gasket: diameter 105mm, thickness 8mm, unit area mass of about 290g/m²
7, load pressure specification: 0.6kg, 0.8kg, 1.0kg, 1.2kg, 1.4kg, 1.6kg, 1.8kg, 2.0kg
8, power supply: AC220V±10% 50Hz 450W
9, dimensions: 750mm×500mm×410mm (length × width × height)
10, weight: about 50kg









Technical parameters]

Diameter of disc	Counting range	Test modes
115mm	1-99999	3
