• Model NO.：THR Series
• Temp. Rising Speed：0.1~3.0 C,Min
• Temp.Falling Speed：0.3~1.0 C,Min
• Analytic Accuracy：0.1 C; 0.1% R.H
• Uniformity：+,-2.5c; +,-3.5% R.H.
• Control Accuracy：+,-0.5 C; +,-2.5% R.H.
• Cooling System：Water Cooling
• Transport Package：Wooden Case
• Specification：CE
• Trademark：ASLi
• Origin：Guangdong, China
• HS Code：85141910
• Production Capacity：50 Sets,Month

 Model

 THR-volume (low-temperature options : A ~ F)

 Inner Dimensions(cm)

 Customers designated space size and design

 Temperature Range

 Low Temperature(A:25°C  B:0°C  C:-20°C D:-40°C  E:-60°C  F:-70°C) High Temperature 80°C (80°C ~150°C is optional)

 Humidity Range

 20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is a special optional condition, need dehumidifier)

Indication Resolution/
Distribution Uniformity of
Temperature & Humidity

 0.1°C; 0.1% R.H/±2.5°C; ±3.5% R.H.

 Control Accuracy of

Temperature and Humidity

 ±0.5°C; ±2.5% R.H.

 Temperature Rising/
Falling

Velocity

Temperature rising approx.  0.1~3.0°C/min

 temperature falling approx.  0.3~1.0°C/min;

 ( The Falling Velocity Min.1.0°C /min is a optional)

 Cooling System

 Water cooled

 Protection Devices

 Fuse-free switch, overloading protection switch  for compressor,high and low voltage coolant protection switch, over-humidity & over-temperature protection switch, fuses,  fault warning system, water short storage warning protection

 Optional Accessories

 Slope for cart , Recorder, Water Purifier, Dehumidifier

 Compressor

 French Tecumseh Brand, Germany Bizer Brand

 Power

 AC 380 V(±10%),50/60HZ ,3 phase 5 Lines

Characteristics
1.New design temperature humidity climate test chamber walk in test chamber Evaporator no frosting under longtime Low temperature and low humidity running.
2.Automatic control system refrigerant demand save electricity above 30%
3.High heat load tested samples test environment
4.realize 95°C 95%high temperature and high humidity environment.
5.10% 20 °C ultra-low temperature range control ability
6.Multi-language selection: Chinese, English, Russian, Korean, Japanese, German multilingual language switching.

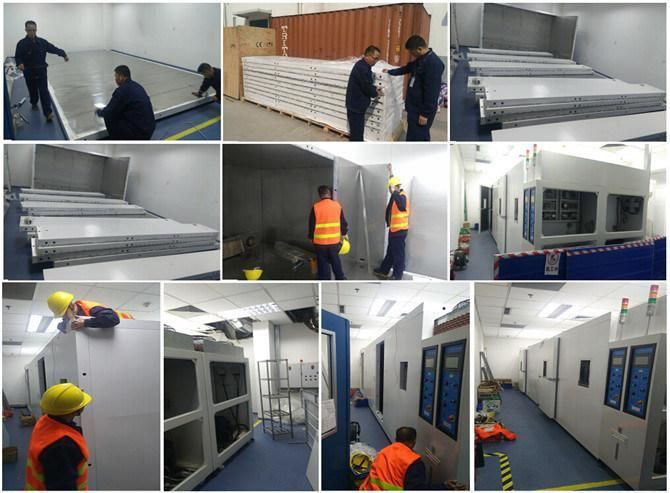

ASLI Install Machine in Customer's Factory:

Main Features
1) The content of the custom environmental testing cabinet can be enlarged or narrowed according to user's environmental requirement.
2) Combined board, convenient to assemble and disassemble, simple structure.
3) Custom walk in environmental test chamber using pollution-free freezing medium R404, R23.
4) Capacious and brightly observation window with high light indoor explosion-proof, which allowed users to observe all indoor at any time.
5) Omni-directional safety protection device and power-off memory, ensure the safety of machine itself and users.
6) Winds blow out of the ceiling, which can reduce the influence of the wind indoor to the sample,and can also meet the demand of low wind speed and high degree of uniformity. The machine can connect with the computer, recorder(optional).


Pictures for reference


2 Main Technical Parameters

2-1  Dimension: According to customer's requirements

2-2  Material : SUS#304ss

2-3 Temperature :-40°C~150°C (according to customer's requirements)

2-4 Temperature Indication Resolution: ±0.1°C

2-5 Temperature Control Accuracy: ±0.5°C

2-6 Temperature distribution uniformity:±2°C

2-6 Humidity: 20%~98%R.H   (according to customer's requirements)

2-7 Humidity Indication Resolution: ±0.1%R.H

2-8 Humidity distribution uniformity: ± 5.0%R.H
