• Model NO.：THR-15000-A
• Refrigerants：R404A
• Display Mode：LCD Display Touch Control
• Temperature Range：Rt+15 C~150c
• Test Port：Dia. 100mm
• Transport Package：Standard Wood Case
• Specification：Customized
• Trademark：ASLI
• Origin：China
• HS Code：85141090
• Production Capacity：100 Sets Per Month

Model  TAR-volume Inner Dimensions(cm)  Customers designated space size and design Temperature Range  RT+10ºC~80ºC(80ºC ~150ºC is optional)  Indication Resolution / Distribution   Uniformity of Temperature 0.1ºC /±2.5ºC; Control Accuracy of Temperature  ±0.5ºC; Temperature Rising Speed Rate Temperature rising speed: approx.  0.1~3.0 (ºC/min) Cooling System  Refrigeration by compressor,
according to customer's  requirements  Protection Devices  Fuse-free switch, overloading protection switch  for compressor,  high and low voltage coolant protection switch, over-temperature protection switch, fuses, fault warning system  Optional Accessories  Slope for cart , Recorder  Compressor  French Tecumseh Brand, Germany Bizer Brand  Power  AC 380 V,50/60HZ ,3∮ 5 Lines

Air Supply Systems for walk in Walk In High Temperature Aging Test Room

1 Air Cycling Device: centrifugal fan, externally installed motor drive
2 Heating Mode: wire heaters made of a material called Nichrome; PID & SSR control
3 Cooling Mode: air/ water cooling
4 Humidification Mode: Stainless steel steam humidification; water purifier is provided for automatic water supply while being connected to the chamber
5 Dehumidification Mode: by compressor& de-humidify device

Climatic temperature Test chamber of construction

1 Console Model Chamber:
1-1 The workspace is located at the left side or as to the user requirements;
1-2 Refrigeration unit cabinet located in the right side;
1-3 Electric control part is placed in the refrigeration unit cabinet, with operation panel on the front Chamber exterior is made of cold rolled steel with powder-painted, interior is stainless steel SUS304 #;
1-4 Thermal insulation material is flame retardant polyurethane rigid foam, of 100-150mm thickness.
2 Refrigeration Unit Cabinet:
2-1 Located in the right side of the chamber, and refrigeration compressors are installed on its frame,
2-2 Special door for maintenance & repair is provided.
2-3 Acoustical boards are used for lowing noise to maximum limit.
3 Chamber door:
3-1 Single door or double door, or according to customer's requirement
3-2 Silicon rubber is used for high sealing effect, high / low temperature resistance, anti-aging, and good Sealed performance.
4 Lighting Device: two interior lights of 12W/36V, moisture-proof & explosion-proof, can be directly manual switch controlled from the outside.
5 Chamber Bottom:
5-1 Height distance to the floor is 200mm; chamber base board is slightly slant with drain hole for letting out the condensed water.
5-2 Interior chamber floor contains many stiffeners, to enable the floor load capacity ≥500Kg / m2, wheel impact ability≥1MT;
5-3 Movable entry ramp is provided.



Measuring and Control System with temperature chamber:

1 High-accuracy platinum resistance is used for temperature and humidity measurement.
2 Central Control Unit:
2-1 LCD touch screen controller;
2-2 Machine conversational mode is used for control system;
2-3 Two lines of input & two lines of output control mode for controlling temperature and humidity separately; Can display set point, program curve, working time, and working condition of heaters, refrigeration units & fan.
2-4 Test procedure automatic operation and PID parameter self-tuning function;
2-5 Can automatically combine the subsystem like heating system, humidification/dehumidification system, refrigeration system, circulation fan, super temperature alarming to operate, to ensure high quality of the whole temperature/humidity control system;
2-6 Control system has automatic self-checking, self-diagnosis, fault display and alarming function.


Packaging & Shipping

Package: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.



Company Information

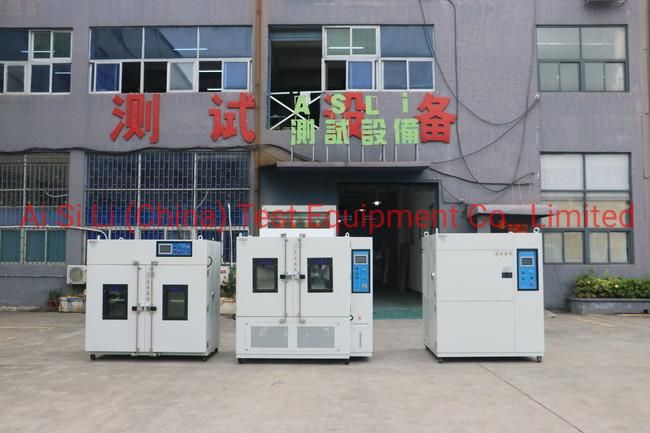

Short introduction about ASLi factory:
We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine. Walk-In Temperature Humidity Chamber is our star products , and we had obtained the CE certification for this machine


FAQ

1. Are your company a trading one or a factory?

Factory ,28 years focusing on test instruments field,4 years exporting experience.



2. After an order is placed, when to deliver?

Generally about 20 days,  If  we have finished products, we can arrange shipment within 3 days.

Please be aware that our production lead times depend on specific items and item quantities.



3. What about the warranty with after - sales services?

12 months warranty.

After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.

   Thermal Shock Test Chamberuv Aging Test MachineHigh Frequency Vibration Table
If you have any question or doubts for walk in climatic chamber, please kindly contact with us. thank you
