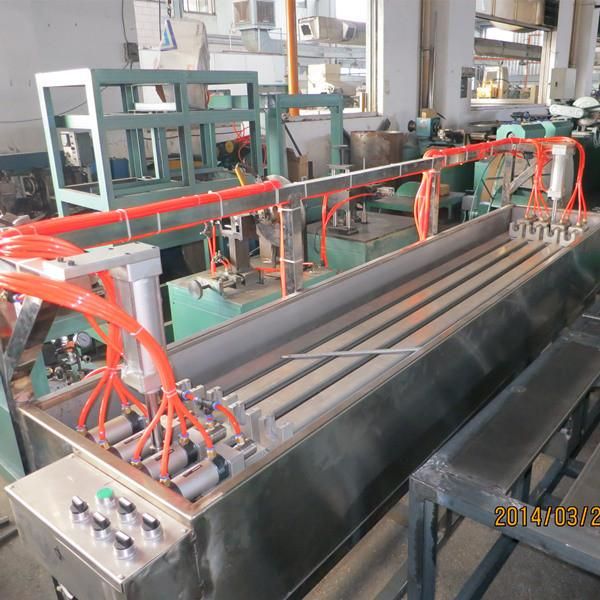

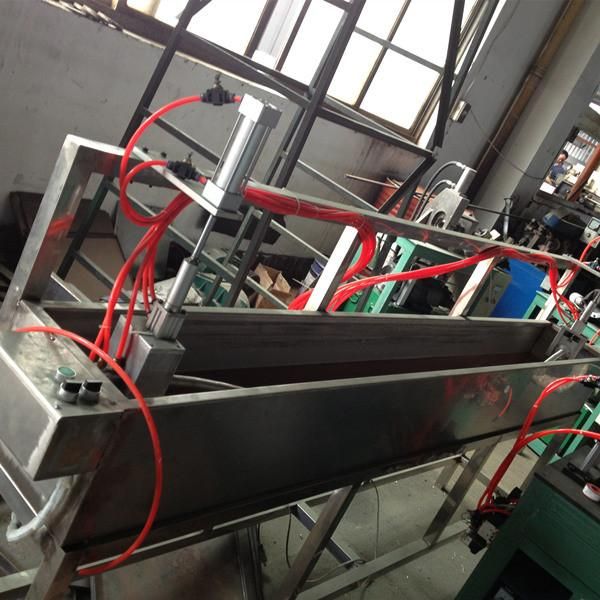

Automatic Flexible Metal Hose Air Leakage Testing Bench
Comflex Industrial Co., Ltd.- Max Diameter of Workpiece：<500mm
- Mass Scope of Workpiece：<900kg
- Type：Compression Testing Machine
- Maxcapacity：<1000KN
- Accuracy Grade：0.5
- Load Way：Mechanical Load
Base Info
- Model NO.：Comflex
- Loading Method：Static Load
- Display：Digital
- Control：Computer Control
- Weight：500-1000Kg
- Power Source：AC380V
- Oil Cylinder Position：Top
- Product Name：Automatic Flexible Metal Hose Air Leakage Testing
- Control Method：PLC
- Lead Time：30 Days
- Working Position：Customized
- Purpose：Leakage Testing
- Working Air Pressure：0.4-0.6MPa
- Hose Length：Customized
- Power：220V
- Test Accuracy：0.5%
- Applicable Hoses：Bellows, High Pressure Tubes, Braided Hose
- Capacity：2000 PCS Per Hour
- Testing Method：Sensor or Water Sinking
- Automation：Full Automatic
- Machine Component：Customized
- Transport Package：Seaworthy
- Specification：4000mm*1500mm*2000mm
- Trademark：HLT
- Origin：China Jiangsu
- Production Capacity：500set,Year
Description
Function
Used for gas tightness testing of pipe fittings and other products with cavities.
Two Testing Ways:
1. Differential pressure sensor version
2. Submerged Beta
Four test stations, which can be customized.
Related Machine
Mechanical hose forming machine (DN8-32mm)Size range: DN8 up to DN40
Wallthickness: 0.18-0.3mm
Production speed:2.5~3.5m/min
Strip thickness: 0.18-0.3mm
Material: sus304, 321 and 316L
Dimension:L*W*H20000*1200*1600MM,
Weight:3000KGS Power:5KW,
Milled length:About 20mets/roll
Including:
A. Strip decoiler/winder
B. Pipe welding
C. Cutting machine
D. Caterpiller
E. Forming head/reforming head
F. Take up

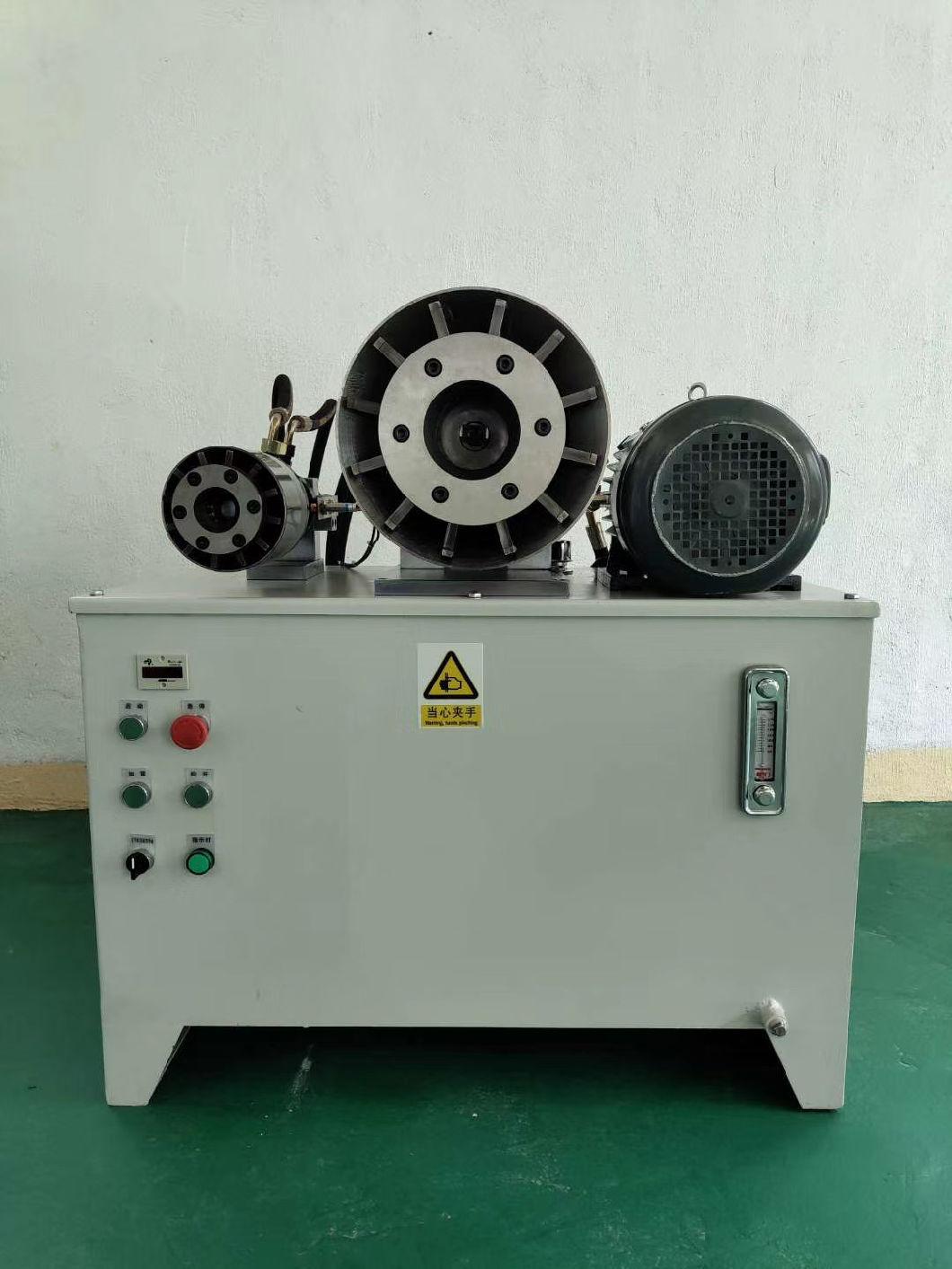

Double head crimping machine
Used for tightening of pipe fittings, anchoring and tightening of steel sleeves, etc.
Technical parameters:
Power:380V
Production capacity:2000pcs/h
Working oil pressure:15Mpa/customizable
Application:braided hose,high pressure tubes,gas,hoses,etc
Diameter:up tp 20mm, can be customized
umber of teeth:12 feet or 8 feet/customizable

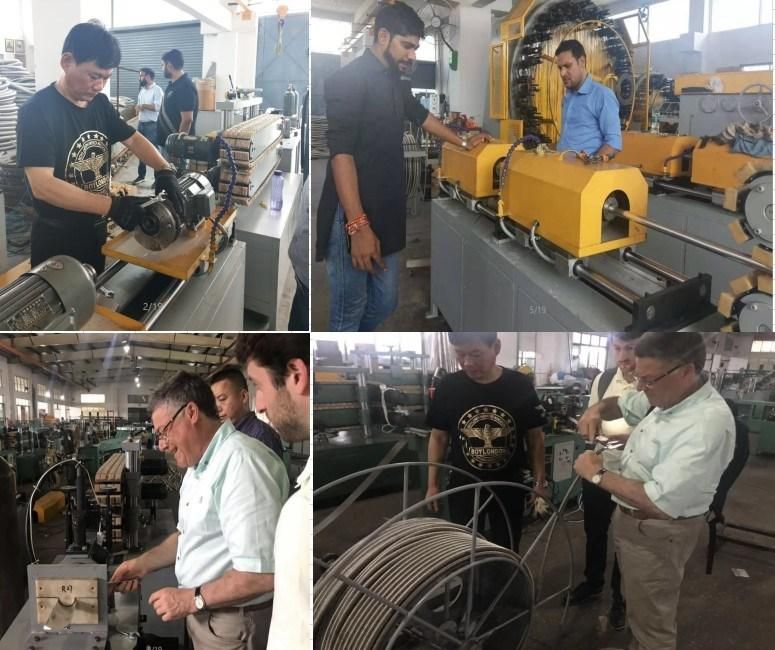

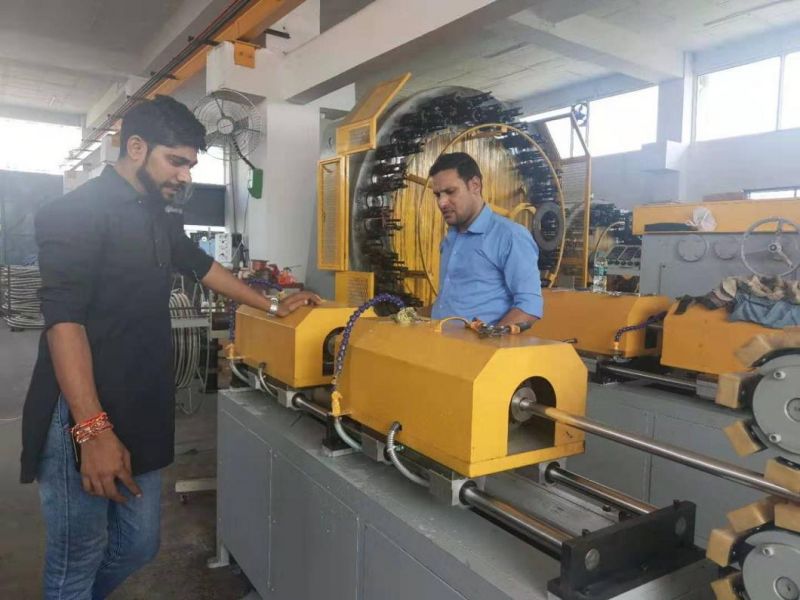

Customer Visit
FAQ
1.Q : Can I get your price list ?
A: Yes, Sure. In order to send you our available offered price. Please choose the products and let us know the product model and requirement in detail.
2.Q: Can give free sample ?
A : Free : if small spare parts and the cost not too much is ok ; Not Free : the cost expensive and all the machine can not be free .
3.Q : How long can be finished the goods ?
Delivery date: 5-30 working days after deposit paid
4. Q: Can you customize for us?
A: Yes, we accept customize, including hose size, diameter, and pvc coating material & thickness.
We need to know the following information before we send quotation:
A. Size range of your hoses
B. Working pressure and temperature of the hose
C. Length of your hoses
D. How many tubes you want to be tested at the same time?
Packing&Shipping
