• Model NO.：PCLC-901D
• Customized：Non-Customized
• Sampling Frequency：200MHz
• Gain Range：0-70dB
• Low Voltage Impulse Voltage：32V
• Max.Resolution：0.4m
• Locating Range：100km
• Communication Interface：USB,Bluetooth (Optional)
• Power Supply：Input AC220V,50Hz,Current 1A,Charge
• Transport Package：Export Standard Carton or Customize Strong Pallet
• Specification：PCLC-901D Cable Fault Locator
• Trademark：PCLC-901D Cable Fault Locator
• Origin：China
• HS Code：9030899090
• Production Capacity：400 PCS Per Month

Basic Info.

Model NO. PCLC-901D Customized Non-Customized Sampling Frequency 200MHz Gain Range 0-70dB Low Voltage Impulse Voltage 32V Max.Resolution 0.4m Locating Range 100km Communication Interface USB,Bluetooth (Optional) Power Supply Input AC220V,50Hz,Current 1A,Charge Transport Package Export Standard Carton or Customize Strong Pallet Specification PCLC-901D Cable Fault Locator Trademark PCLC-901D Cable Fault Locator Origin China HS Code 9030899090 Production Capacity 400 PCS Per Month

Product Description

Product name: PCLC-901D Cable Fault Detection Instruments Test Equipment Tester cable fault locator

INTRODUCTION
 The PCLC-901D Power Cable Fault Pre-locator is an easy operation device used for distance locating .It can test a variety of 35KV under different voltage grade, different sections, different media and all kinds of material of power cable faults, including: communication cables, coaxial cable and metal aerial cables,open circuit, short circuit, low resistance, high resistance, high resistance leak flashover fault.
It's easy to operate,support both touch screen/button operation and with friendly interface. PCLC-901D can be used alone under the low voltage impulse mode. Under the mode of impulse current,PCLC-901D needs to work with HVSG-500GX high voltage generator items.Under the multiple impulse mode,PCLC-901D also need PCLC-900C coupler.After distance locating,user could use PCLD-901P items for fault pinpointing. And these products can be combined into a set of high performance and innovative cable fault testing system.
 FUNCTION FEATHER:
  Multiple distance locating method: -Low current impulse method: apply to the locating of the low resistance fault. Short circuit fault, open circuit fault. It also can be used in the measurement of the cable length, the intermediate joints, T joints, and cable termination joint. This method also can be used to correct the wave velocity. -Impulse current method: apply to the high resistance fault, breakdown fault. Use the current coupler to gather signal from the earth wire -Multiple impulse method: improvement of the SIM method  200MHz real-time sampling -Advance tech.Upgrading for SIM method -Max. 0.4m measurement resolution,PCLC-901D has small blind zone and is special for the short cable and nearly-terminal fault cable  Touch screen and press key operation -Touch operating screen with smart gesture operation -Support cursor drag-drop function and double-click function,easy to locate -Simple function menus with high performance.  Big color LED screen, friendly interface -Simple function menus with high performance  7" LED screen,160°viewing angle,bright with 750cd/m2 to view under sunshine -PIP copy(pic. temporary storage). There'll be a main window and three temporary storage windows could check three waveform together.  Waveform storage and PC communication -Special software management for software upgrade, backup and restore in device. -Waveform storage and communication with computer. -Internal storage of waveform. -Optional mini printer for waveform printing -Support connection with PC or laptop  Power management -Back light weakens if no operation in 2 min and power off in 10 min. if no operation. -Built-in Polymer Lithium-ion battery. -Working time could reach 7 hours for each use.
 SPECIFICATION:
 Locating methods: Low voltage impulse method Impulse current method Multiple impulse method   Sampling frequency: 200MHz Gain range: 0-70dB Low voltage impulse voltage: 32V Max.resolution: 0.4m Locating range: 100km Dead zone: 2m Battery: L-ion battery rechargeable batteries,7.4 V endurance time over 7 hours Communication interface: USB,bluetooth (optional) Power supply: Input AC220V,50Hz,current 1A,charge for 6 hours Dim.: 274×218×81mm Weight: 3.5kgs Operating Temperature: -10ºC-40ºC Humidity: 5-90%RH Elevation: <4500m
 PHYSICAL CHARACTERISTICS AND OPERATION

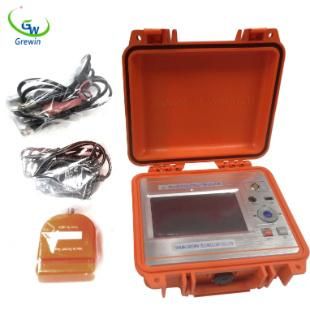

CONFIGURATION Standard : main unit, low voltage impulse testing guideline, impulse testing connecting wire and filter,charger and so on.

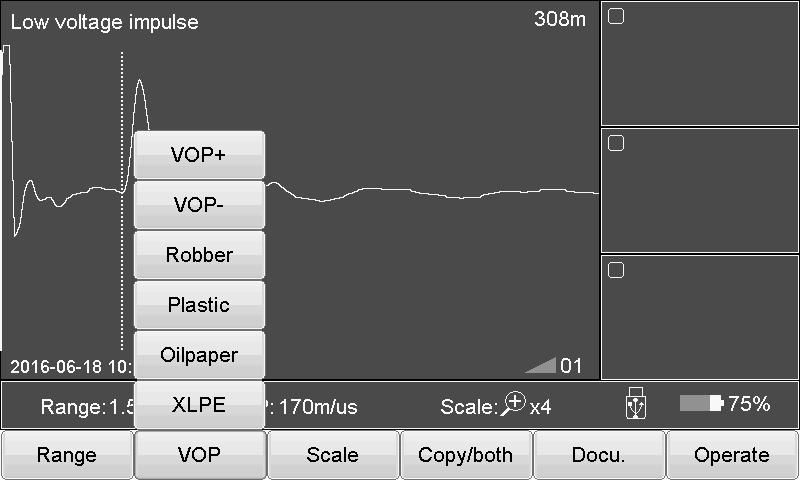

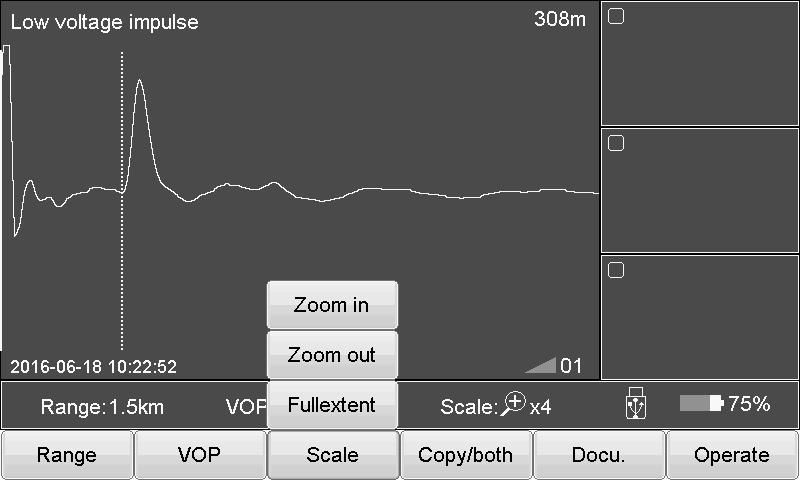

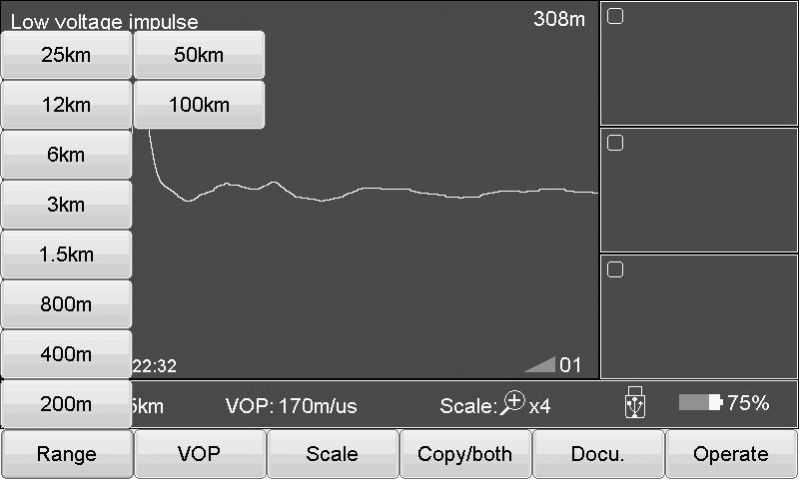

MAIN UNIT PANEL    shows the operation interface



Details:
LED screen : Display all the information. Will introduce in the following.
Signal port: connect with testing wire. Choose different wires under different testing mode.
Charging port:connect with wire for built-in battery
USB disk:save or import waveform
Multiple function button:total five functions,up,down,left,right and enter.Up and down button is used for gain adjustment,left and right button is used  for cursor adjustment, and enter is used to switch the dotted cursor and soiled cursor
Power indicator light:it will light when power on
Power/Menu : Turn on or off the machine.When power on,it's menu button.Short press into the menu,press again  to exit.
Test button:Press to test.
