Vertical Fluter Cardboard Corrugator Concora Medium Fluter CCT and Cmt
Hangzhou Yante Science and Technology Co., Ltd.- After-sales Service：Available
- Warranty：1 Year
- Max Diameter of Workpiece：500mm
- Mass Scope of Workpiece：<900kg
- Type：Cardboard Corrugator
- Maxcapacity：100n
Base Info
- Model NO.：YT-CMFA
- Accuracy Grade：1
- Load Way：Electronic Load
- Loading Method：Dynamic Load
- Display：Digital
- Control：Computer Control
- Weight：70kg
- Power Source：AC220V
- Oil Cylinder Position：Under
- Working Speed：4.5r,Min
- Temperature Display Resolution：1 ° C
- Temperature Measurement Accuracy：0.5 Level ± 1 Word
- Adjustable Range of Working Temperature：Room Temperature ~ 200 ° C
- Adjustable Range of Working Pressure：(49-108) N
- Standard Working Temperature：177 ° C Soil 8 ° C
- Spring Tension：100n
- Overall Dimension：564mm × 377mm × 330mm
- Power Supply：AC220V, 50Hz
- Working Conditions：Room Temperature 10-30 ºC
- Worktable：Stable, Flat and Vibration Free
- Transport Package：Wooden Box
- Trademark：YANTE
- Origin：Hangzhou
- HS Code：8439300000
Description
Basic Info.
Model NO. YT-CMFA Accuracy Grade 1 Load Way Electronic Load Loading Method Dynamic Load Display Digital Control Computer Control Weight 70kg Power Source AC220V Oil Cylinder Position Under Working Speed 4.5r/Min Temperature Display Resolution 1 ° C Temperature Measurement Accuracy 0.5 Level ± 1 Word Adjustable Range of Working Temperature Room Temperature ~ 200 ° C Adjustable Range of Working Pressure (49-108) N Standard Working Temperature 177 ° C Soil 8 ° C Spring Tension 100n Overall Dimension 564mm × 377mm × 330mm Power Supply AC220V, 50Hz Working Conditions Room Temperature 10-30 ºC Worktable Stable, Flat and Vibration Free Transport Package Wooden Box Trademark YANTE Origin Hangzhou HS Code 8439300000Product Description

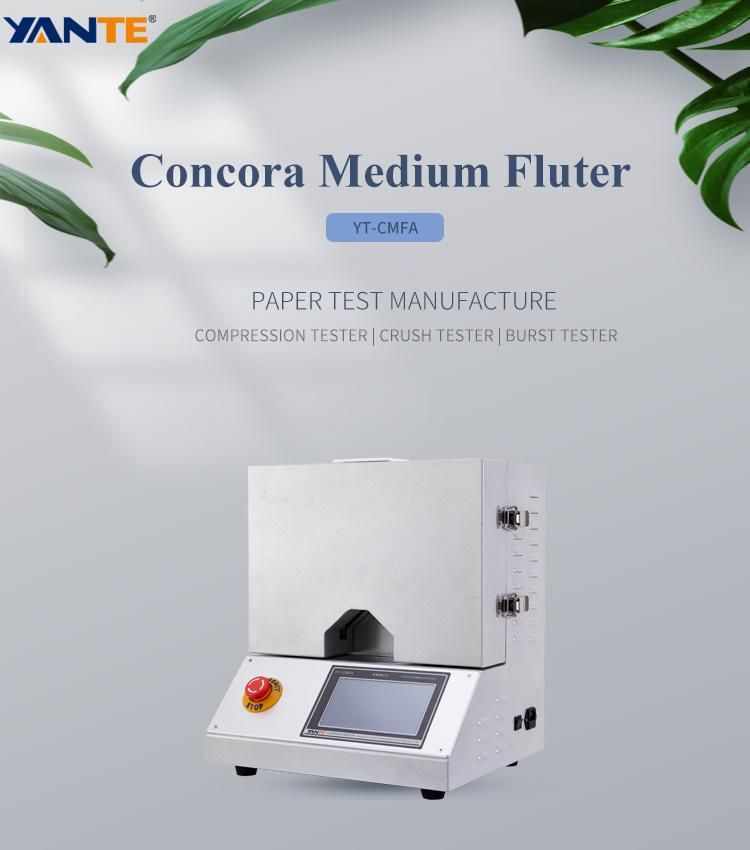

Concora Medium Fluter is the basic test equipment for corrugated base paper to perform corrugated flat pressing (CMT) and corrugated edge pressing (CCT) after corrugated in the laboratory. It needs to be used with special ring crush sample cutter and crush tester.
Application Range
Corrugated paper
Product Function
Perform corrugated sampling for corrugated paper flat pressing (CMT) and corrugated edge pressing (CCT).
Product FeaturesThe fan-shaped heating forming plate structure is adopted to reduce energy consumption and reduce the weight of the equipment.ARM processor, integrated control board design, reduce failure rate.The 7-inch color touch screen is easy to understand and easy to operate.Closed loop servo stepper motor, stable and accurate speed.Standard RS232 interface, can communicate with computer software (purchased separately).Temperature out of control protection
Executive Standard
QB1061,GB/T2679.6,ISO7263,TAPPI T809
Technical Parameters
| No. | Parameter item | Technical index |
| 1 | Power Supply | AC(100~240)V,(50/60)Hz,700W |
| 2 | Working Environment | Temperature(10~35)ºC, Humidity≤ 85% |
| 3 | Display | 7 inch color touch screen |
| 4 | Radius of upper teeth | 1.50±0.1mm |
| 5 | Radius of lower teeth | 2.00±0.1mm |
| 6 | Tooth depth | 4.75±0.05mm |
| 7 | Gear tooth form | A Type |
| 8 | Working speed | 4.5r/min |
| 9 | Temperature resolution | 1ºC |
| 10 | Adjustable working temperature range | (1~200)ºC |
| 11 | Adjustable range of working pressure | (49~108 )N |
| 12 | Standard heating temperature | (175±8)ºC |
| 13 | Dimension | 400×350×400 mm |
| 14 | Net Weight | 37Kg around |
