Explosion Proof Temperature Vacuum Drying Oven Environmental Chamber Oven
GUANGDONG BELL EXPERIMENT EQUIPMENT CO., LTD.- After-sales Service：24 Hours Online
- Warranty：1 Year
- Type：Vacuum Drying Oven
- Display：Digital
- Control：Computer Control
- Weight：0-100Kg
Base Info
- Model NO.：BE-ZK-SERIES
- Power Source：AC220V
- Product Name：Vacuum Drying Box
- Power Supply：AC 220V 50Hz 3.0kw-10.0kw
- Temp. Range：Rt+10ºC~200ºC
- Display Mode：Digital Display
- Internal Material：6.0mm Thickness SUS 304# Stainless Steel
- Bottom：Installed with Universal Wheel
- Pressure：0~101kpa
- Pressure Fluctuation：≤5%
- Transport Package：Each Set Protected with Resin Fiber and PP Film, T
- Specification：Test Space 300x300x300(customizable)
- Trademark：DGBELL
- Origin：Guangdong China
- HS Code：8419200000
- Production Capacity：100set ,Month
Description
W x H x D (mm)External Dimension 600x470x710 700x570x810 800x670x910 900x870x1010 1100x1070x1210 W x H x D (mm) Power Supply AC 220V / 50HZ / 3.0KW AC 220V / 50HZ /4.0KW AC 380V / 50HZ / 6.0KW AC 380V / 50HZ / 8.0KW AC 380V / 50HZ /10.0KW Temp. Range RT+10ºC~200ºC Display Mode Digital Display Internal Material 6.0mm thickness SUS 304# Stainless Steel External Material 1.5mm thickness SECC steel plate, powder painted coating Bottom Installed with universal wheel Observation Window Tempered glass with explosion - proof membrane Timer 4 digits display 0~9999(Hour, Minutes, Seconds changeable) Vacuum Rate 1.3Kpa(standard requires 11.6Kpa,vacuum gauge indication value -89.7Kpa) Safety Devices Remarks:as the inner chamber pressure is(101.325Kpa), if wants the inner chamber pressure decreased to 11.6Kpa. Calculating according to atmosphere pressure of(101.325Kpa), need to blow out (89.7Kpa) pressure of the inside chamber, then the inner chamber can reach low pressure environment of (11.6Kpa). Pressure 0~101Kpa(Controllable, display) Pressure Fluctuation ≤5%

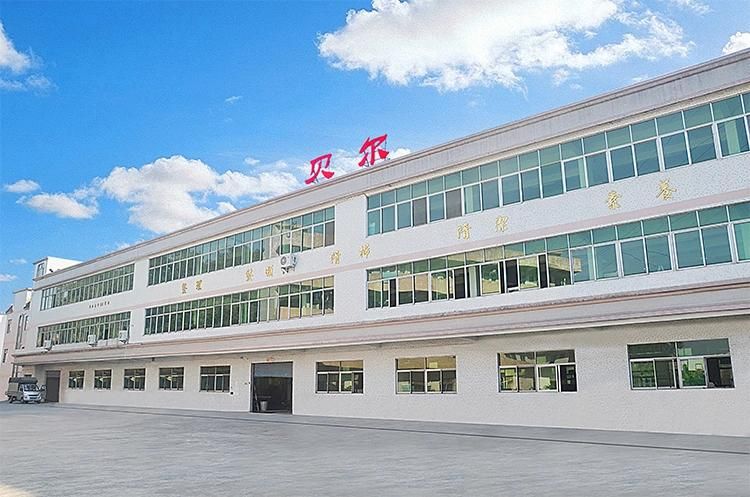

Established in 2005, Guangdong Bell Experiment Equipment Co., Ltd is specialized in manufacturing a variety of quality inspection instruments, testing equipments and other high-tech products which mainly include: Constant Temperature & Humidity Test Chamber,High & Low Temperature Test Chamber, High & low Temperature Testers with Rapid Temperature Change, Walk-In humidity & temperature test chamber, Cool/Thermal shock test chamber, Salt spray chamber, High temperature aging tester, sand and dust testing machine,tension tester, high and low temperature testing machine , servo computer battery crush tester, mechanical vibration testerBattery washing tester ,battery burning tester and other quality testing instruments. Thanks to several decades of R&D efforts,the company has established itself as a leading provider of testing instruments of the industry, playing a crucial role in the research and development of high-quality and high-value products within the industry.
15+ years experience in test chambers manufacturing, High performance for your projects.
With unmatched quality advantage, a dynamic management team, professional customer services, superb manufacturing techniques and innovative research and development ideas, Guangdong Bell Experiment Equipment Co., Ltd, supported by an international, standard and professional quality policy, is gradually becoming an international brand. Its products are manufactured in consistent with a number of world standards.
Established in 2005, Guangdong Bell Experiment Equipment Co., Ltd is specialized in manufacturing a variety of quality inspection instruments, testing equipments and other high-tech products which mainly include: Constant Temperature & Humidity Test Chamber,High & Low Temperature Test Chamber, High & low Temperature Testers with Rapid Temperature Change, Walk-In humidity & temperature test chamber, Cool/Thermal shock test chamber, Salt spray chamber, High temperature aging tester, sand and dust testing machine,tension tester, high and low temperature testing machine , servo computer battery crush tester, mechanical vibration testerBattery washing tester ,battery burning tester and other quality testing instruments. Thanks to several decades of R&D efforts,the company has established itself as a leading provider of testing instruments of the industry, playing a crucial role in the research and development of high-quality and high-value products within the industry.
15+ years experience in test chambers manufacturing, High performance for your projects.
With unmatched quality advantage, a dynamic management team, professional customer services, superb manufacturing techniques and innovative research and development ideas, Guangdong Bell Experiment Equipment Co., Ltd, supported by an international, standard and professional quality policy, is gradually becoming an international brand. Its products are manufactured in consistent with a number of world standards.
