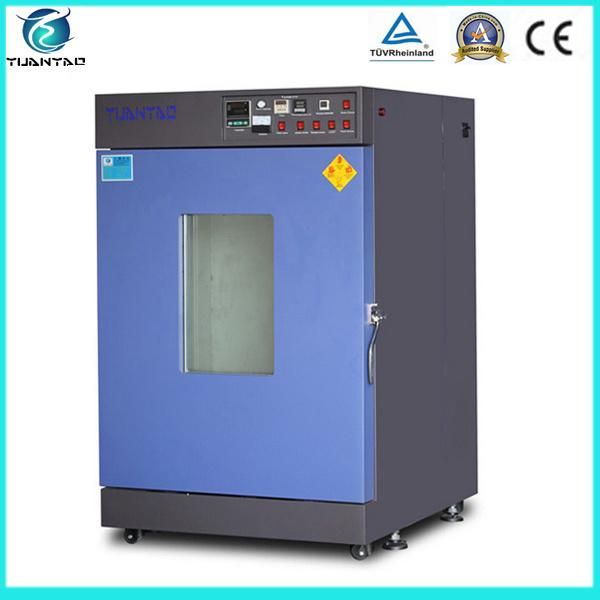

Industrial Vacuum Drying Oven

Guangdong Yuanyao Test Equipment Co., Ltd.
  • Type：Vacuum Drying Oven
  • Maxcapacity：N,a
  • Accuracy Grade：N,a
  • Load Way：N,a
  • Loading Method：N,a
  • Display：Digital

Base Info

  • Model NO.：YPOZ-480
  • Control：Manual Control
  • Weight：100-500Kg
  • Power Source：AC380V
  • Oil Cylinder Position：N,a
  • Inner Chamber Size Whd：800X1000X600 mm
  • External Chamber Size Whd：1060X1700X1250mm
  • Volume：480 Liters
  • Temp. Fluctuation：+,- 0.5 Degree
  • Inner Chamber Material：Stainless Steel Plate
  • External Chamber Material：Cold Rolled Sheet with Powder Coated.
  • Temp. Range：Rt+10 &Degree ~+100degree,+200degree
  • Service：Customization Service
  • Warranty：12 Months
  • Power：AC 3 Phase 380V 50,60Hz
  • Transport Package：Strong Plywood Case
  • Specification：TUV, SGS Certification
  • Trademark：Yuanyao
  • Origin：China
  • HS Code：9032100000
  • Production Capacity：100 Sets,Month

Description

inner  chamber:   stainless  steel  plate;
external  chamber:   cold  rolled  sheet  with  powder  coated.Temp.   Range RT+10  º C    ~+100º C/+200º C,     (higher  temperature  is  also  available)Temp.   fluctuation  /  temp.   uniformity± 0.5º C  /  ± 5.0º CTemp.   resolution 0.1º C;Heating  rate2.5 º C/minControl  MethodMicro  PID+SSR+TimerVacuum  range  0~  -98KPaShelf2  pcsObservation  Glass  WindowWhen  temperature  is  RT-200º C  , with  observation  glass  widow
When  temperature  is  200º C-500º C  , without  observation  glass  widow  Power  AC  380  V  , 3  Phase  5  Lines, 50/60HZ

 If you are interested in any item of our company, kindly please send me email
Industrial Vacuum Drying Oven
Industrial Vacuum Drying Oven


Beside vacuum drying oven   ,we are also supply temperature and humidity test chamber,Thermal shock chamber, Temperature & humidity Control Host, Ozone test chamber, Salt Spray Tester, Walk In environmental Testing Room, Temperature & humidity & Vibration Combined Testing Chamber, Aging Oven Tester, Rain/Spray Testing Chamber, Burn-in testing equipment, Dust Tester, Steam Aging Tester, Electromagnetic High Frequency Vibration Tester, Tensile Tester, Drop Tester, etc.

 If you are interested in temperature and humidity test chamber, please kindly contact Hedy Hua for more information.
