Portable Automatic 0.1 Accuracy High Speed Transformer Turns Ratio Tester For Site
Wuhan GDZX Power Equipment Co., Ltd.- After-sales Service：Provided
- Warranty：1 Year
- TTR measurement range：0.8-10000
- High measurement speed：three-phase test can be completed within 40 second
- TTR measurement accuracy：0.1%(0.8-3000)
- Volume：320mm*240mm*130mm
Base Info
- Model NO.：ZX-BCS
- Weight：3Kg
- Transport Package：Wooden Case or Carton
- Specification：Universal Testing Machine
- Trademark：GDZX
- Origin：China
- Production Capacity：1200sets,Year
Description

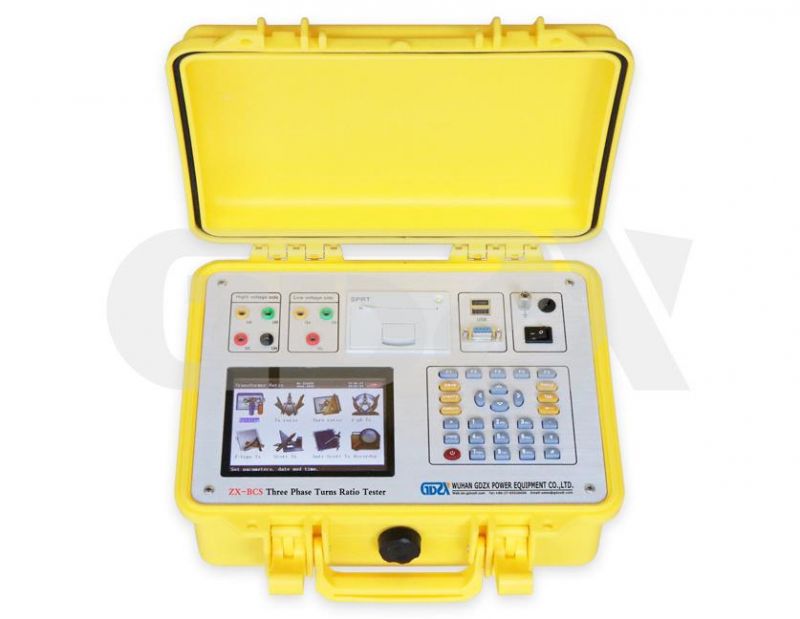

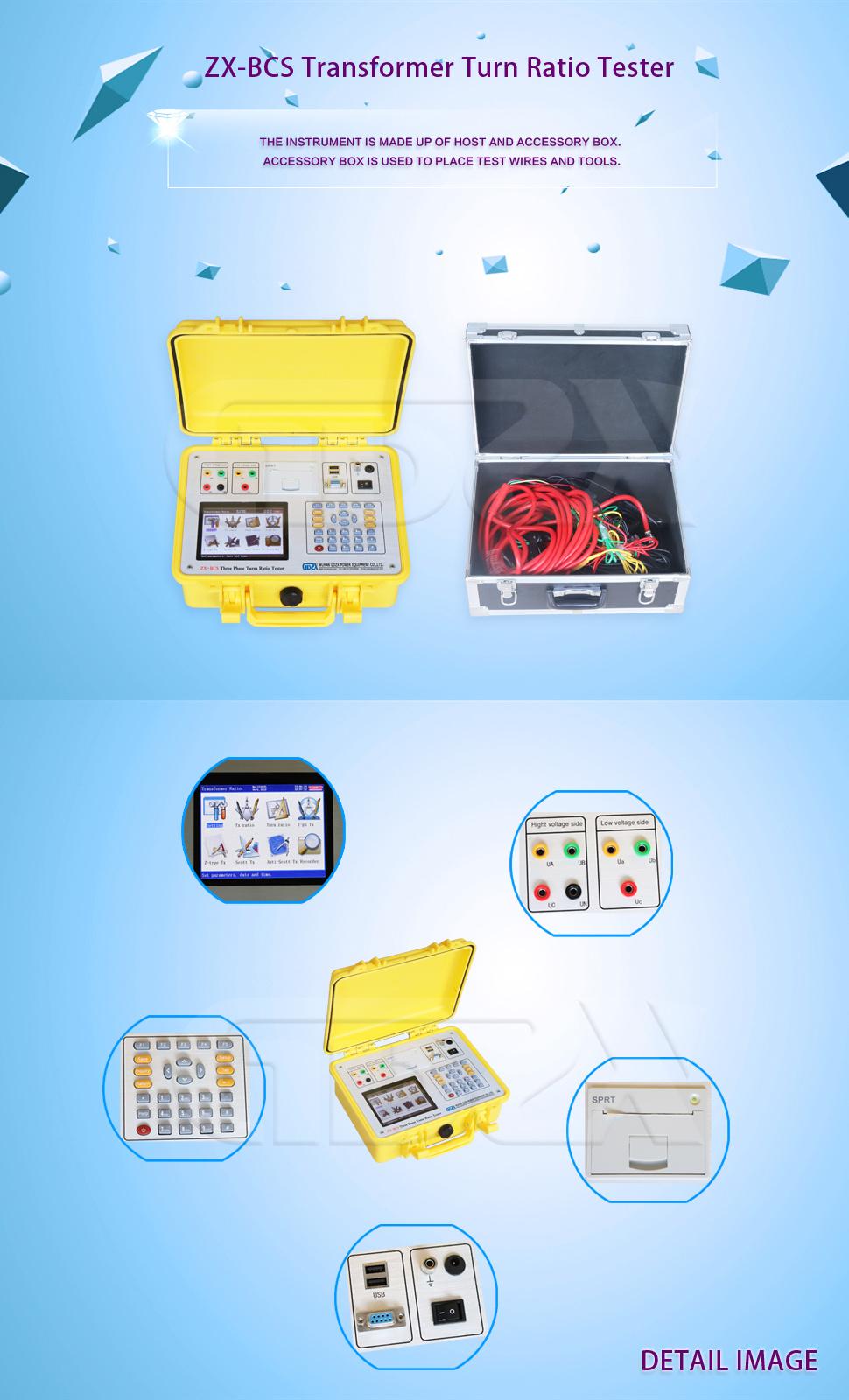

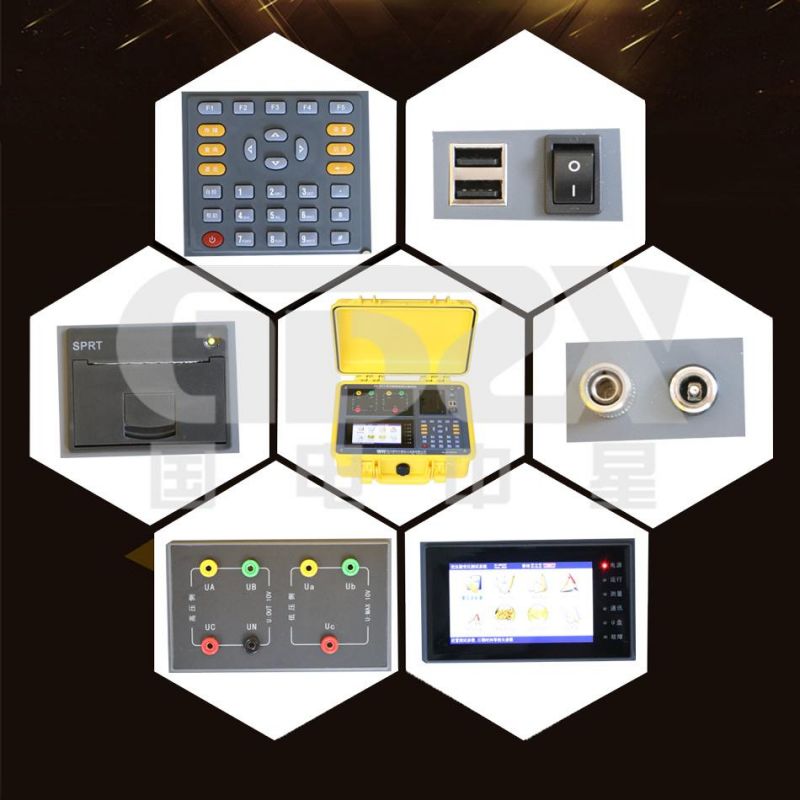

ZX-BCS Automatic Transformer Turns Ratio Tester adopts large-screen true color liquid crystal as the display, full Chinese graphical operation interface and equipped with English prompt information, multi-parameter display LCD display interface, human-machine dialogue interface friendly, vector diagram display and wiring judgment to check the correct circuit Sex provides a reliable basis. Full touch type conductive silicone keyboard operation, operation feel good, easy to learn. The built-in large-capacity power-down device does not lose data memory.
(1)Voltage measurement accuracy on HV side: 0.05%
(2)Voltage measurement accuracy on LV side: 0.1%
(3)Phase angle measurement accuracy: 0.1°
(1)0.1%(0.8-3000)
(2)0.2%(3000-10000)
Company introduction
Wuhan GDZX Power Equipment Co.,Ltd. is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.
Service and Warranty
Service
* Provide professional consulting service; dedicated salesman and professional technical engineer to answer customer questions.
* Ensure customer get the detailed information about the product in hand.
* Reasonable price, we trust our customers should get the worth what they paid. Quotation stamped and confirmed by Manager.
* Welcome customers visit.
* Being trustworthy, follow the requirements and ensure successful implementation of signed contracts and technical agreements.
* Focus on communication, actively communicate with users, take notes of user's questions and schedule, provide the necessary technical support.
* Move quick and efficient, professional on delivery, installation, debugging, training and others. Warranty* We maintains 100% customer satisfaction, please give us feedback if you fell anything wrong with the product, we will make it right for you.* Our products are guaranteed with one year warranty and life-long tech support.* Provide solutions within 24 hours when there is problems feedback from customer.
PACKING AND SHIPPING
(1)We will ship products within 8-20 working days after the receipt of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.(5)After shipping, we will remain attentive till goods well received. If you need detailed specification, please feel free to contact us.
Test cases
Features
1. Input single power, internal digital combination standard sine wave test source output
2. Phase angle measurement function: measure the phase angle between high voltage side and low voltage side. Measure the turn ratio and angle of "Non integral point" transformer.
3. It can conduct single-phase measurement and three-phase winding automatic test. Three phase turn ratio value, phase angle value, error, tapping position, tapping value can be measured for once.It also can identify connecting group number automatically.
4. Testing results can be displayed in the form of digit and hexagon vector diagram, which makes transformer connecting group can be made out obviously.
5. With blind test function: There is no need to choose connecting method and group. When measuring Y/△,△/Y transformer, no external short-circuit is needed, connecting method can be shifted automatically according to the chosen testing contents.
6. With tapping test function: TTR and TTR error in the position of each tapping switch can be gauged quickly. Just input rated TTR once, instead of inputing over and over again, TTR error in tapping position can be calculated.
7. With functions of turns ratio measurement and voltage TTR measurement.
8. With 5.6 inch LCD, the effect of data & figure display is visualized and fine.
9. With small size and light weight, it is easy to carry.
10. With built-in high capacity chargeable lithium battery. Test can be conducted without any power supply on site, and once the battery is charged fully, it can make measurement for more than 500 times continuously.
