• Product Name：Battery Charging and Discharging Aging Cabinet
• Model Number：Aging Cabinet 0-100V
• Battery Type：18650, 26600, 32650, 21700 and etc
• Supply Voltage：AC220V,50Hz
• Usage：Power Bank, Laptop, Ebike Batteries Test&Sorting
• Power：1400W
• Measuring Range：0-100V
• Charge Range：0-10000mA
• Transport Package：Wooden Boxes
• Specification：450L*300W*170H,mm
• Trademark：TWSL
• Origin：Guangdong, China
• Production Capacity：100 Sets Per Month

Cylindrical Battery Pack Assembly Machine

Item No.

Product Name

Description

1

Internal Resistance Tester

1. Voltage test V1: range : 0-4.999V

2. Voltage test V2: range : 0-29.99V

3. Resistance test R1: range : 0.1-200 mΩ

4. Resistance test R2: range :1-2000 mΩ

1.Sorting Speed:80PPM

2.Suitable for:all types of cylindrical cell

3

Insulation Paper Sticking Machine

1.Productivity:4000pcs/h; single 4pcs

2.Suitable:one machine for one type cylindrical cell

4

Manual AC Pneumatic Spot Welder

1.Welding Thickness:0.03-0.2mm

2.Maximum power output of transformer:15 KVA

5

Manual DC Pneumatic Spot Welder

1. Welding Thickness:0.03-0.25mm

2. Maximum Output Short Circuit Current:5000A

6

Automatic 5000A/8000A Single Side Spot Welding Machine

1. Spot Welding Speed:0.35s/point; 2800pcs / hour

2. X-Y-axis Travel:400*500mm

(can be customized according to request)

7

Automatic 5000A/8000A Double Sides Spot Welding Machine

1. Spot Welding Speed:0.35s/spot, 5500pcs/h

2.Y-Z-axis Travel:400*500mm

(can be customized according to request)

8

Automatic 5000A/8000A Single Side Rotary Welding Head Spot Welding Machine

1. Welding Material:

pure nickel sheet: 0.03-0.2mm

Nickel-plated steel strip :0.03-0.3mm

2. Maximum Spot Welding

Speed:0.35S/point;2800pcs/h

3. Maximum Stroke Size Range:

X:500mm,Y:400 mm,Z:35mm,

R:180º

The distance between tooling platform and welding needle can be adjusted by 300 mm.

9

Automatic 5000A/8000A Double Sides Rotary Welding Head Spot Welding Machine

1.Rotary Welding Head:R:180º

The distance between tooling platform and welding needle can be adjusted by 300 mm.

2. Welding Travel:

Y: 500mm; Z; Z2:350mm(or 400mm)

10

Automatic Assembly Line Double Side Spot Welding Machine

Suitable for assembly line battery pack production

11

Battery Pack PVC Covering Machine

1. Transmit Speed:

0-15m/min

2.Shrinking Speed:0-300C

3.Load-bearing:30kg

12

30V 10A 20A Battery Pack Aging Cabinet

1.Voltage testing range:4.5-30V

2.Charging range:50-10000mA

3.Discharging range:50-20000mA

4.Accuracy:±(0.2% of reading +0.2% of range)

13

70V 5A 10A Battery Pack Aging Cabinet

1.Voltage testing range:5-70V

2.Charging range:50-5000mA

3.Discharging range:50-10000mA

4.Accuracy:±(0.2% of reading +0.2% of range)

14

100V 10A 20A Battery Pack Aging Cabinet

1.Voltage testing range:10-100V

2.Charging range:50-10000mA

3.Discharging range:50-20000mA

4.Accuracy:±(0.2% of reading +0.2% of range)

15

Automatic Inject Printer

1.Printing speed:320m/min

2.Non-contact printing distance:2-15mm

3.Max number of printing dots:34

16

Battery Pack Comprehensive Tester

1.Voltage testing range:10-100V

2.Charging range:50-10000mA

3.Discharging range:50-20000mA

4.Accuracy:±(0.2% of reading +0.2% of range)

17

BMS Tester

1.Overcharge/Overdischarge Protection Voltage:0.5-5V

2.Overcharge Protection Current:0-50A

3.Over-discharge Protection Current:0-120A

18

256 Channel 5V 2A 3A 5A 6A Battery Tester

1.Current:0.05A-2A/3A/5A/6A

2.Voltage:0-5V

3.Channel:256

19

512 Channel 5V 2A 3A 5A 6A Battery Tester

1.Current:0.05A-2A/3A/5A/6A

2.Voltage:0-5V

3.Channel:512

20

256/512 Channel 5V 3A 5A 6A Lithium Battery Tester With Energy Regenerative Function

1.Current:0.05A-2A/3A/5A/6A

2.Voltage:0-5V

3.Channel:256/512

4.Lithium Battery Tester with Energy Regenerative Function

21

PVC Heat Shrink Wrapping Machine

1.Film speed:50~70PCS/MIN

2.Film precision:±0.1MM

Contact us:
Shenzhen TWSL Intelligent Equipment Co.,Ltd
Jenny  / Sales Manager

mask machine :https://twslbatterymachine.en.made-in-china.com
battery pack line :https://youtu.be/EgqrT5EA3ag
+86-
18098919495
Shenzhen TWSL Intelligent Equipment Co., Ltd.


Package & Delivery

1) Wooden box with protect film to avoid damages in loading;

2) Shenzhen port, particularly near the manufacturing site;
3) Delivery time: 15-30 days after payment confirmed.

Our Service

Pre-sales
1) Quick responce to inquiry within 12 hours. Inquiry and consulting support. All will be replied in 12 hours.
2) Ideal solution can be offered in accordance with your particular needs.

3) Visit to our Factory is welcomed and try the machine on site or in person.

After-Sales
1) Training can be offered for both installation and use of the machine.
2) Engineers available to service machinery overseas.
3) 1-year guarantee ( free maintaince in a year since out put date).
4) consumalbe spare parts and other accessories can be provided with the machine.

Our Company

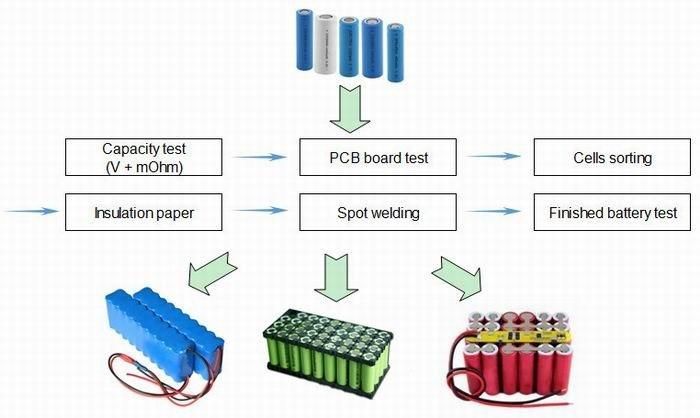

TWSL specialized manufacturing machine for Lithium battery assembly line (Auto pvc peeling/ paste paper /sorting/test/Welding/injection molding/Labeling/bagging Machine ) more than 10 years.
1, Our machines can do 18650/26650/32650/21700 etc ,Cylindrical batteries testing, sorting and spot welding in great speed.
2, You can design your own voltage and internal resistance.
3, We have a complete production line for power battery packs.
4, Our machines are widely used in battery factories for mobile phone, power bank, laptop , ebikes and electric vehicle .
5, We have an oversea sales office in New Delhi, India and now is quite popular.India , most battery factory machine support by us,Like intex,kites air,erd,ambrane,bmt,iccon ETC.
Any chance you like our products, please feel free to contact us.
We can provide you a perfect solution for power battery packs production!Such as attached Solutions.we have strict quality control system and high efficiency work team and received a high evaluation and recognition of our customers.You can reach me


Wooden Box Export Package:

Payment & Shipping:

5th Step: Spot welding

Shenzhen TWSL is a 12-year expert in factory automatic production machines. Our main products are used in manufacturers of batteries for power bank, laptops and cell phones. Besides the batteries pack & spot welding, we also supply low pressure injection machines at all kinds of customers' requests. With our machines, global factories can speed up their production rates and greatly enhance their business expanding efficiency. We can give advices about how to open your own factories. So far we have 8 engineers and 2000 square meters workshop. We can help you to build your own factory and expand your business! Any interests, please feel free to contact us!

Welcome to view our machines video on Youtube:

https://youtu.be/EgqrT5EA3ag

We've gained more than 75% market shares in China with leading technology and service, and are trusted by world giants like BYD, SCUD and Desay, etc.

For successful cases, we recommend India INTEX AND ICCON, who have co-operated with us very recently.

FAQ

Q:What can your machines do?

A: Make the batteries production automatically.

    Save the factory owner's invest and better the efficiency.

Q:What kind of items can your machines produce?

A:Our machines can be used to produce batteries for Power Bank, Laptops, Cell Phones and Ebikes, etc.

Q:How can I see samples or know more about the machines?

A:We have real time video on Youtube.

    Please contact our sales to get the links.

    Indian friends can visit our New Delhi sales office and see the machine by yourselves.

Q: Do you have a MOQ for orders?

A:Customers are free to buy our production line (3-5 machines altogether) or just 1 single machine.

     Our factory MOQ is 1 set.

Q:Do you have any warranty or certifications?

A:We provide 12 months warranty for the machine, and life-time after-sales maintenance.

    All of our products are with CE certifications and are good to export worldwide.

Q: I am a new factory owner. Can I get some advices about automatic production?

A:You can tell us the ideal turn-over you want for your new factories.

    Our professional engineers and sales shall provide you with budget and costs how much it takes.
