Handheld Telephone Cable Tracker Wire Detector Rj11 Line Cord Tester

Ningbo Gloryal Electronic Technology Co., Ltd.
  • Connectors:RJ11
  • Test Mode:Wire Tracker
  • Usage:Network Cable Tester
  • Test Region:Telephone and LAN Cables
  • Cable Type:CAT3
  • Power:Electricity

Base Info

  • Model NO.:TM-6
  • Customized:Non-Customized
  • Color:Yellow
  • Type:LAN Cable Tester , Wire Tracker
  • Function:Trace,Verify Cable (Open,Short,Crossover)
  • Component:Cable Tracker,Sender,Receiver
  • Unit Weight:278g
  • Unit Size:255*120*38mm
  • Transport Package:Color Box
  • Specification:255*120*38mm
  • Trademark:OEM
  • Origin:China
  • HS Code:9031809090
  • Production Capacity:1000 Piece,Pieces , Week

Description

Basic Info.

Model NO. TM-6 Customized Non-Customized Color Yellow Type LAN Cable Tester / Wire Tracker Function Trace/Verify Cable (Open,Short,Crossover) Component Cable Tracker/Sender/Receiver Unit Weight 278g Unit Size 255*120*38mm Transport Package Color Box Specification 255*120*38mm Trademark OEM Origin China HS Code 9031809090 Production Capacity 1000 Piece/Pieces / Week

Product Description

Handheld Telephone Cable Tracker Wire Detector Rj11 Line Cord Tester
Handheld Telephone Cable Tracker Wire Detector Rj11 Line Cord TesterTelephone Cable fault locator RJ11
1. Special in LAN cable test and locate
2. Track cables without damaging the insulaion
3. Judge continuity of the cables


This Cable Tracker is designed to identify and trace wires or cables within a group without damaging the insulation.

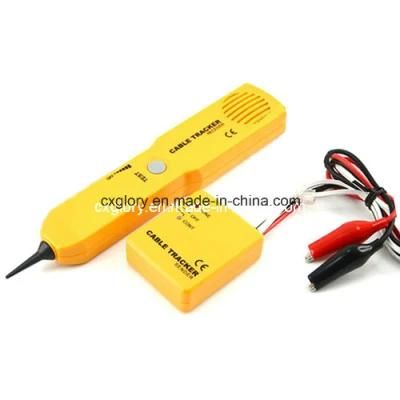

For telephone line, it can identify some states in the line. Owning this instrument, it is more convenient to install, debug, and maintain telephone line. There are a Sender and a Receiver included in the cable tracker.

Main Function:

1. Judge continuity of the cables or wires.
2. Track the cables or wires, and diagnose the break point.
3. Receive the tone signal on the cables or wires.
4. Identiy the state in the working telephone line (clear, ring, busy)
5. Send a single solid tone or dual alternating tone to the object cables or wires.

Note:

Track cable or wires
Use sender (switch to tone) and receiver;
Connect the test leads to the pair, or attach one test lead to ground and another test lead to either side of the line. Move the Receiver close to and along the pair (or the line). Reception of the tone indicates the track.
Note: Do not connect to any active circuit in this mode.

Battery Replacement
A. Sender battery replacement
Remove the screw on the back case, remove the back case, and replace the exhausted battery with new one of 9V (6F22). Rejoin the back case and install the screw.
B. Receiver battery replacement
Remove the screw on the battery compartment, remove the battery cover, and replace the exhausted battery with a new one of 9V (6F22). Rejoin the cover and install the screw.
Item:Specification:
Product name:RJ11 Cable Tester & Tracker
Component:Cable tracker/Sender/Receiver
Function:Trace/Verify cable (Open,short,crossover)
Power:DC 9V alkaline Battery
Unit size:255*120*38mm
Port:2 Clips and RJ11 connector line
