• Model NO.：OGFL 200
• Test Region：Unformed
• Cable Type：Shielded
• Power：Electricity
• Certification：CE
• Customized：Non-Customized
• Color：Red Yellow Orange Locator
• Type1：Name: Xjd-200 Overhead Line Grounding Fault Locat
• Location Accuracy：0.2m
• Open-Circuit Voltage：Fundamental Wave Valid 0~2800kv
• Short-Circuit Current：Fundamental Wave Valid 0~35mA
• Output Frequency：1Hz
• Communication Distance：≥30m
• Transmitter Power：Max. 900 W
• Sensor Supply Power：Three AAA Alkaline Batteries
• Receiver Supply Power：Five AA Alkaline Batteries
• Transmitter Weight：15kg
• Transport Package：Export Standard Carton or Customize Strong Pallet
• Specification：Power Testing Instrument,Grounding Fault Locator
• Trademark：Power Testing Instrument,Grounding Fault Locator
• Origin：China
• HS Code：9028901000
• Production Capacity：4000 PCS Per Month

Basic Info.

Model NO. OGFL 200 Test Region Unformed Cable Type Shielded Power Electricity Certification CE Customized Non-Customized Color Red Yellow Orange Locator Type1 Name: Xjd-200 Overhead Line Grounding Fault Locat Location Accuracy 0.2m Open-Circuit Voltage Fundamental Wave Valid 0~2800kv Short-Circuit Current Fundamental Wave Valid 0~35mA Output Frequency 1Hz Communication Distance ≥30m Transmitter Power Max. 900 W Sensor Supply Power Three AAA Alkaline Batteries Receiver Supply Power Five AA Alkaline Batteries Transmitter Weight 15kg Transport Package Export Standard Carton or Customize Strong Pallet Specification Power Testing Instrument/Grounding Fault Locator Trademark Power Testing Instrument/Grounding Fault Locator Origin China HS Code 9028901000 Production Capacity 4000 PCS Per Month

Product Description

Tianjin Grewin Technology Co.,ltd, who always pay great attention to its business philosophy "Quality and Honesty First". Grewin is specialized in the design and manufacture of wound components such as transformer,current sensors, chokes etc . windely used in communications,electronics,meters,industrial control,medical equipments and other fields.We are also a provider of power meters and instruments locators. 85% of its products exported to America, Europe, and Asia etc. We have passed ISO9001,CE,SGS approval and IEC report and developed good cooperative relationship with valued customers around product quality and value-added service along with the fast efficient solution.Grewin has won a lot of customer's praise.


Name: OGFL 200 Overhead Line Grounding Fault Locator






Product description:
Good solution of the pinpointing of single phase to earth fault
 Applies to overhead line small current grounding power system.
 Use to pinpoint the earth fault when line break down when single phase grounding fault happen
Function introduction:
1.      Apply to small current neutral grounding distribution power system.
2.      Used to detect the over head line metallic grounding fault, arc grounding fault, resistance grounding fault and so on.
3.      Workable for broke down line, apply for branch line
4.      Ultralow frequency signal to avoid capacitor influence. Easy to find the high resistive fault
5.      Recreate fault by high voltage signal, easy to locate
6.      Safe transmitter by black and short-circuit function
7.      High sensitive sensor, open design and easy to hang on the line
8.      Wireless transmission, safe and reliable
9.      Flexible power supply. Transmitter is workable by Utility power and electric generator. Sensor and receiver are by dry battery
10.   Light and easy to carry
11.   Receiver has large LCD display interface, which can show the current waveform and current value


Specification
1.     Location accuracy:0.2m

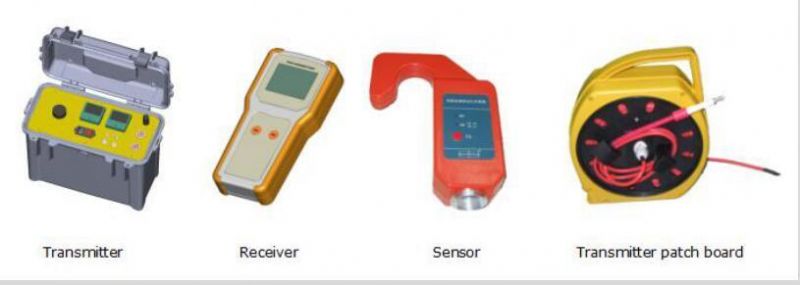

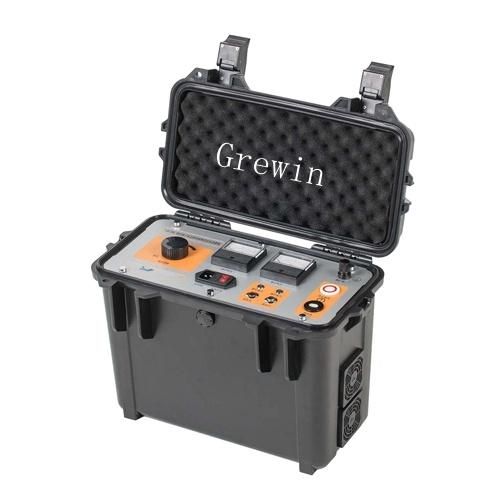

2.     Specification of transmitter:
  open-circuit voltage: fundamental wave valid 0~2800kV
  short-circuit current: fundamental wave valid 0~35mA(impulse DC, peak value 100mA )
  output frequency1Hz
3.     Communication distance between receiver and transmitter:≥30m
4.     Transmitter power: AC 220V,or electric generator
5.     Transmitter power: Max. 900 W
6.     Sensor supply power: Three AAA alkaline batteries
7.     Receiver supply power: Five AA alkaline batteries
8.     Dimension: transmitter 455mmx355mmx310mm
              Sensor 180mmx100mmx35mm
              Receiver 205mmx200mmx35mm
9.     Weight: transmitter 15kg
              Sensor 0.45kg
              Receiver 0.45kg
10.  Working condition :
Temperature -10ºC-40ºC
Humidity 5-90%
Elevation ≤4500m
