Low Voltage Telemetrics Cable Fault Locator LAN Cable Harness Test Equipment

Tianjin Grewin Technology Co., Ltd.
  • Certification：CE, RoHS
  • Customized：Non-Customized

Base Info

  • Model NO.：RCI-700T
  • Low Voltage Impulse：Distance Measurement Mode
  • Sampling Frequency：100MHz
  • Distance Measurement Range：30km
  • Audio Signal Transmission Band：MID-Frequency 400Hz
  • Gain of Signal Channel：80dB
  • Accuracy of Pin-Pointing：0.1m
  • Transmitting Frequency：1kHz
  • Transmitting Power：3.5W
  • Main Unit 1200m：320*240 LCD
  • Transport Package：Export Standard Carton or Customize Strong Pallet
  • Specification：RCI-700T All In One Integrated Cable Fault Tester
  • Trademark：Grewin
  • Origin：China
  • HS Code：9030899090
  • Production Capacity：400 PCS Per Month

Description


Fault distance locatingDistance measurement mode Low voltage impulse
Impulse currentSampling frequency 100MHzResolution Ratio Low voltage impulse:1m
Impulse current:4mVoltage of low voltage impulse 30VDistance measurement range 30kmBlind zone 2mMagnetic sound synchronization pin-pointing:Audio signal transmission band Mid-frequency 400Hz ,bandwidth 200Hz.Gain of signal channel 80dBAccuracy of pin-pointing 0.1mRoute tracing:(M)Receiving frequency 1kHz(M)Gain 80dBGenerator for route tracing:(T)Transmitting frequency 1kHz(T)Transmitting power ≥3.5WOutput Open circuit voltage≥100Vp-p
Short circuit voltage ≥300mA
Auto matching according the actual loading
Auto short circuit protectionPower supply:Battery built-in Li-ion battery pack, nominal voltage 7.4V,Capacity 3000mAHPower consumption RCI-700TM 400mA ,RCI-700TT 500mACharger Input AC100-240V, 50/60Hz; output 8.4V, DC 1ACharge time <4 hoursDisplayMain unit 1200M 320*240 LCDGenerator MeterOtherVolume 270*220*80mm  M/TWeight 1.5kg M/TWorking conditionTem. -10ºC-40ºCHumidity 5-90%RHElevation <4500m  Basic operation


  1. Low resistance
     Megger:0
    Multimeter:< 200Ω

    Low voltage impulse

     Audio-frequency(optional)Audio magnetic synchronous2Open circuitConductor disconnectionAudio magnetic synchronous3High resistanceMegger:>0
    Or:
    Megger:0
    Multimeter:≥ 200Ω
    Impulse current
     4BreakdownMegger:insulation normal
    Withstand voltage test:noRemark:
    1. The gray part in the form means that, for these functions, extra matched high voltage generator is needed.
    2. Audio-frequency method to pinpoint the low resistance is optional. This need the matched CD-1200T route tracing signal generator.

    Device introduction

    1. Main unit and accessories

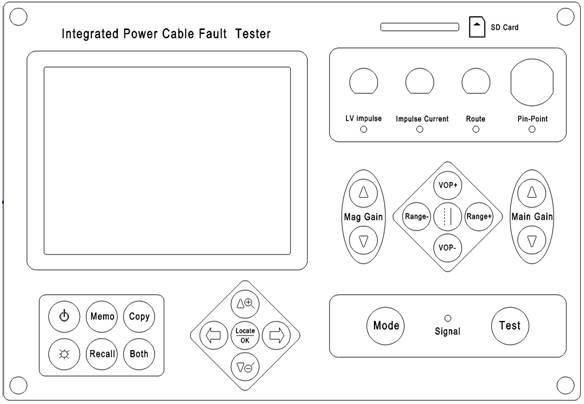

    1. RCI-700TM Integrated power cable fault tester
    • Function and accessories:
    Low voltage impulse distance testing accessories: Low voltage impulse test line
    Impulse current distance testing accessories: Impulse current coupler
    Audio magnetic synchronous pin-pointing accessories: Pin-pointing sensor, earphone
    Route tracing accessories: route sensor, earphone

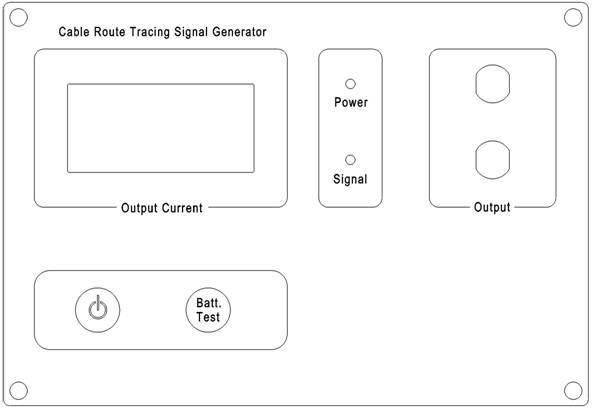

    1. RCI-700TT route tracing signal generator
    • Signal generator for route tracing. Accessories: output line, earth stake

    1. Charger for RCI-700TT/M
    2. Low Voltage Telemetrics Cable Fault Locator LAN Cable Harness Test Equipment
      Low Voltage Telemetrics Cable Fault Locator LAN Cable Harness Test Equipment
