• Model NO.：ZNN-6
• Result：Counting
• Motor Speed：750,1500r,Min
• Non-Newtonian Fluid：1~150MPa.S
• Voltage：220V 50 Hz
• Transport Package：9mm and 15mm Plywood Package
• Specification：6 speed
• Trademark：civittest
• Origin：Zhejiang-China
• HS Code：9031809090
• Production Capacity：500pieces,1 Month

Basic Info.

Model NO. ZNN-6 Result Counting Motor Speed 750/1500r/Min Non-Newtonian Fluid 1~150MPa.S Voltage 220V 50 Hz Transport Package 9mm and 15mm Plywood Package Specification 6 speed Trademark civittest Origin Zhejiang-China HS Code 9031809090 Production Capacity 500pieces/1 Month

Product Description

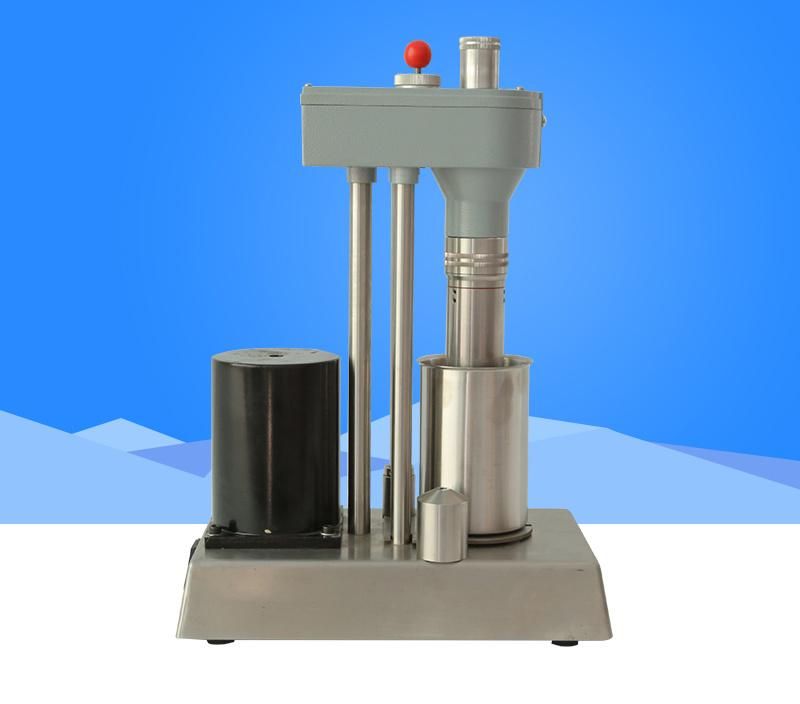

6 speed rotatory Rotational Viscometer viscosity test

I. Use
 it is controlled by a traditional mechanical transmission to a single-chip microcomputer, and the data is more stable in long-term use. The rheological parameters can be measured at twelve speeds and twelve speeds. The rheological curves are drawn according to the multi-point measurement values to determine the flow pattern of the liquid during the flow. The appropriate calculation formula is used to accurately predict the non-Newtonian fluid. The measurement is used for the research and analysis of rheological parameters of on-site drilling fluid. At the same time, a series of technical parameters such as dynamic and static shear force, fluidity index and consistency coefficient can be measured. Conducive to the need for safe, fast, scientific drilling. It has the characteristics of convenient operation and accurate test.

II. Technical Specification


Number	Name	Technical indicators
1	Voltage	220V±5%/50HZ
2	Power	7.5W/15W
3	Motor speed	750/1500r/min
4	Speed range	3,6,100,200,300,600r/min six speeds
5	Measurement accuracy	1~25 mPa·s±1 mPa.s Newtonian fluid 25 mPa·s ±4% Newtonian fluid
6	Viscometer Newtonian fluid	1~300mPa.s (F1 measurement component) 1~60mPa.s (F0.2 measurement component)
7	Non-Newtonian fluid	1~150mPa.s (F1 measurement component) 1~30mPa.s (F0.2 measurement component)
8	Shear force	0~153.3Pa (F1 measurement component) 0~30.7Pa (F0.2 measurement component)

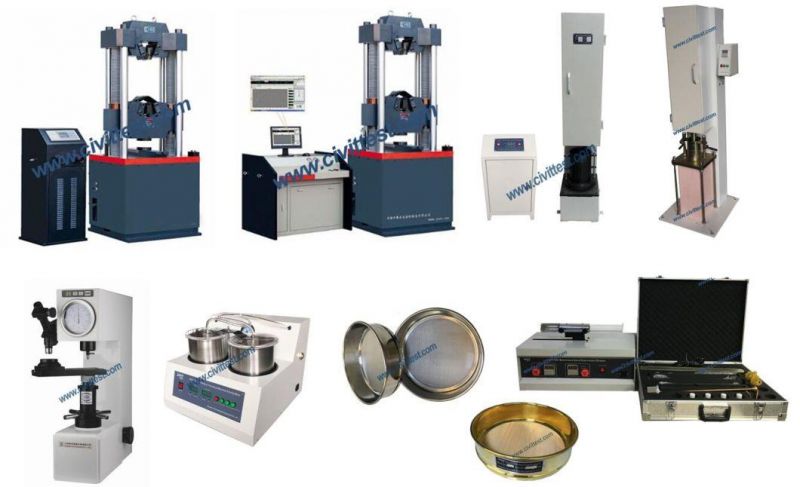

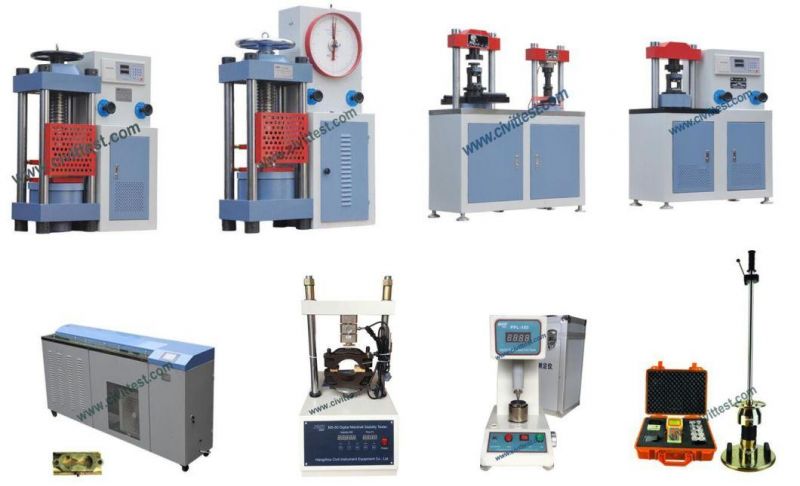

6 speed rotatory Rotational Viscometer viscosity test  III. Company Product
1. Drying, weighing and Grading Equipment and tools.
2. Soil, Rock Testing Equipment.
3. Aggregate Testing Equipment.
4. Concrete Testing equipment.
5. Cement and Mortar Testing Equipment.
6. Asphalt Bitumen Testing Equipment.
7. Steel Testing Equipment.
8. Survey Instrument and Detector.
9. General Lab Equipment and Tools.
10. Scientific Lab Equipment and Tools.



IV. Our services

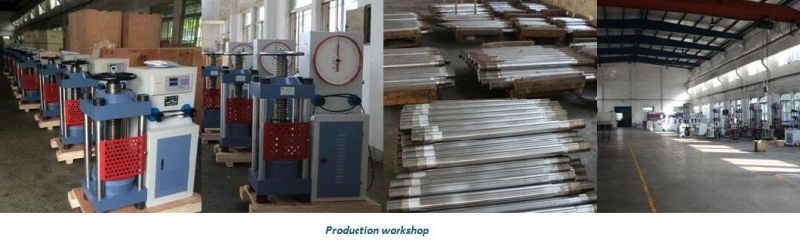

1. Production:
Our factory choose high quality material include steel, stainless steel, circuit board, motor, etc. By strict and efficient production and inspection, products are in high quality and possible low cost.


2. Shipment:
We use 9mm and 15mm thick plywood as packing, heavy machine will be packed in high strength to keep it intact during shipment. We ship goods out from company in shortest time and book fast ship to make sure customer can get goods quickly.


3. After sales:
After shipment, we will delivery shipping documents to customer correctly and quickly. Supply one year warranty for all machines, after one year, we will still supply quick and effective after sales solution.
