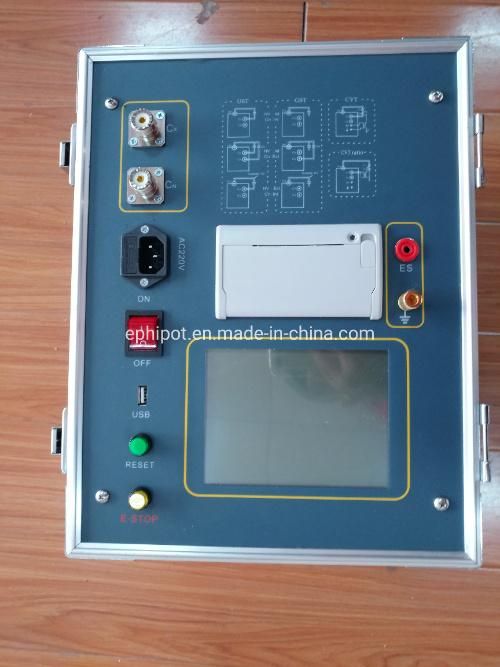

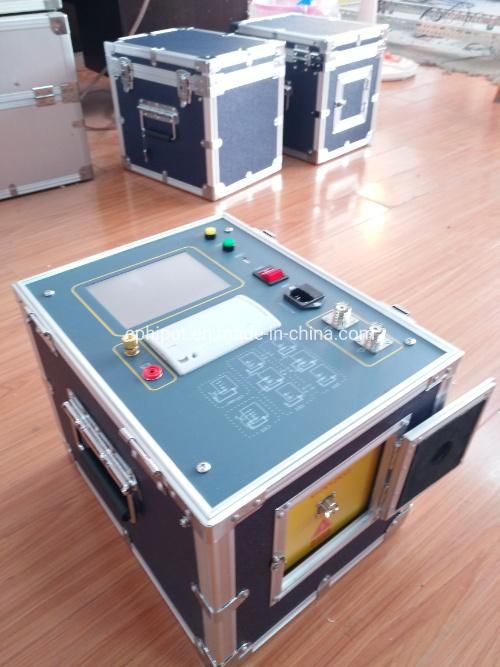

12kv Transformer Capacitance Dissipation Factor Tester 10kv/12kv C&Df Tester
EP HIPOT ELECTRIC CO., LTD.- Type：Strength Testing Machine
- Accuracy Grade：2
- Display：LCD
- Control：Computer Control
- Weight：0-100Kg
- Power Source：AC220V
Base Info
- Model NO.：EPJS-6000
- Printer：Build-in Thermal Printer
- Anti-Interference Principle：Frequency Conversion
- High Voltage Output：0.5kv~12kv
- Precision：2%
- Maximum Current：200mA
- Capacity：2000va
- Self-Excitation Power：AC 0V~50V,15A
- Automatic Double Frequency：45Hz,55Hz 47.5Hz,52.5Hz 55Hz,65Hz 57.5Hz,62.5Hz
- Tg Resolution：0.001%
- Cx Resolution：0.001PF
- Tg Accuracy：+-(Reading*1.0%+0.040%)
- Cx Accuracy：+-(Reading*1.0%+1.00PF)
- Tg Measurement Range：Without Limit
- Cx Measurement Range：15PF Less Cx Less 300NF
- 12kv Measurement Range：Cx Less 30 NF

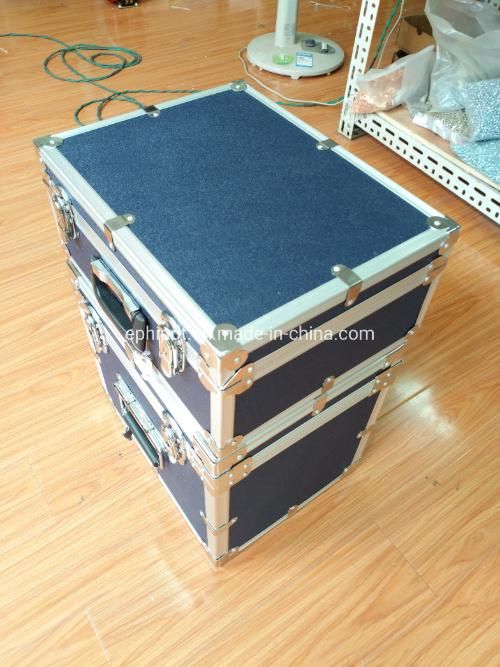

- Transport Package：Plywood Case with Foam and Waterproof Plastics
- Specification：460*360*350mm
- Trademark：EP Hipot Electric
- Origin：China
- HS Code：9031809090
- Production Capacity：500,Year
Description
Accessory box: 5.25kg
More details on 12kV C&DF Tester please contact EPHipot Electric, we have professional tech team to design correctly designed products and systems.
