• Model NO.：ST-DS5A
• Speed：Different Speed Choose From 0.00001 to 9.99999mm,M
• Transport Package：9mm and 15mm Plywood Package
• Specification：electric soil direct shear
• Trademark：CIVITTEST
• Origin：China
• HS Code：9031809090
• Production Capacity：100sets ,Month

Basic Info.

Model NO. ST-DS5A Speed Different Speed Choose From 0.00001 to 9.99999mm/M Transport Package 9mm and 15mm Plywood Package Specification electric soil direct shear Trademark CIVITTEST Origin China HS Code 9031809090 Production Capacity 100sets /Month

Product Description

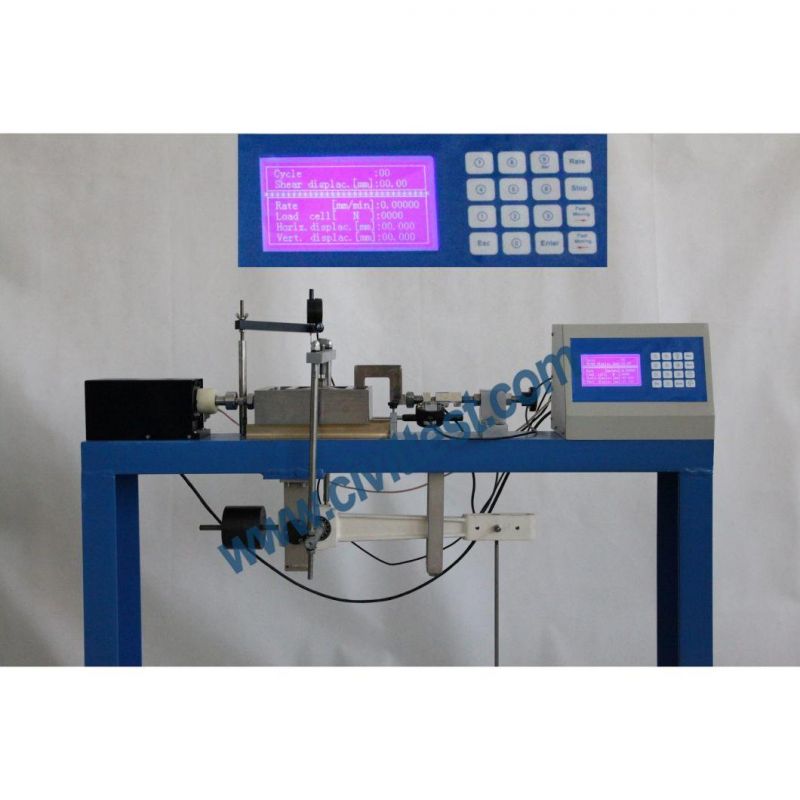

Square soil sample Testing Digital Residual Direct Shear Test Apparatus

I. Use

It used to determination  the shear strength of soil.

II. Standard
ASTM D3080, BS 1377:7

III. Technical Specification


Number	Name	ASTM EN BS Transducer Direct Shear Testing Machine
1	Level ratio	11:1, 10:1, 9:1
2	Loading	5KN capacity, fitted with 4 pin DIN plug.
3	Shear box assembly	60*60 and 100*100mm
4	Vertical Displacement Transducer Assembly	12.7mm travel, Accuracy:0.003mm, Resolution:0.001mm, with 4pin DIN plug, mounting pillar and bracket for shear box.
5	Horizontal Displacement Transducer Assembly	25.4mm travel, Accuracy:0.003mm, Resolution:0.001mm, 4 pin DIN plug, mounting pillar and bracket for shear box
6	Set of Weights	50kg in total
7	PC Software in Windows (Acquisition Only)	digital control of speed and data acquisition via control system.
8	Speed	Digital control and display of speed. Reversible stepper. Motor for residual strength test. Infinitely variable speed drive from 0.00001 to 9.99999mm/min.

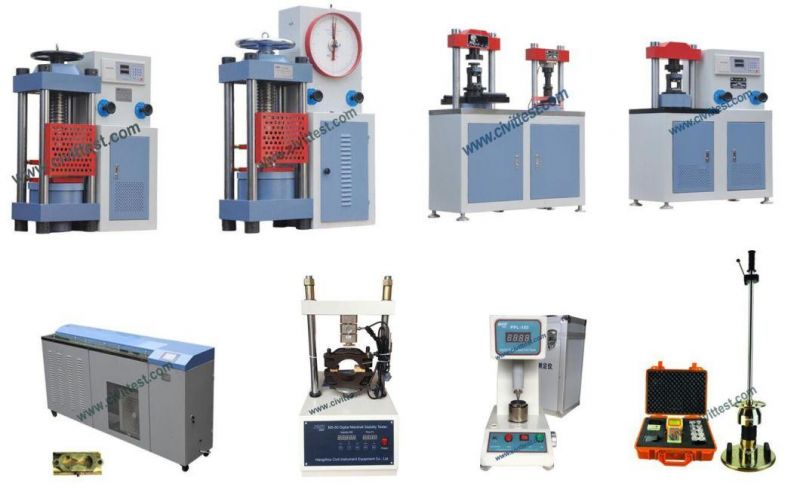

 Company Product
1. Drying, weighing and Grading Equipment and tools.
2. Soil, Rock Testing Equipment.
3. Aggregate Testing Equipment.
4. Concrete Testing equipment.
5. Cement and Mortar Testing Equipment.
6. Asphalt Bitumen Testing Equipment.
7. Steel Testing Equipment.
8. Survey Instrument and Detector.
9. General Lab Equipment and Tools.
10. Scientific Lab Equipment and Tools.



Our services
 Production:
Our factory choose high quality material include steel, stainless steel, circuit board, motor, etc. By strict and efficient production and inspection, products are in high quality and possible low cost.

 Shipment:
We use 9mm and 15mm thick plywood as packing, heavy machine will be packed in high strength to keep it intact during shipment. We ship goods out from company in shortest time and book fast ship to make sure customer can get goods quickly.

 After sales:
After shipment, we will delivery shipping documents to customer correctly and quickly. Supply one year warranty for all machines, after one year, we will still supply quick and effective after sales solution.
