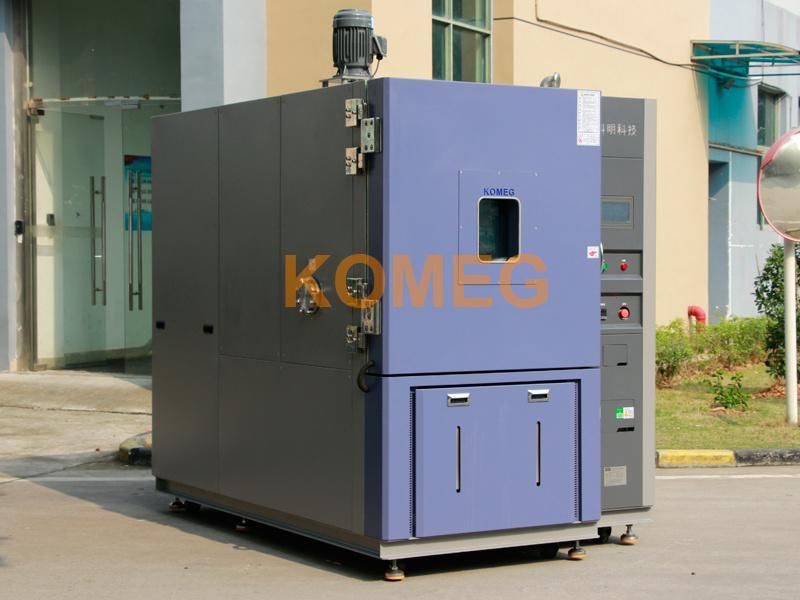

• Model NO.：KU-504L
• Temp. Range：-40oc~+150oc or -104of~+302of
• Humidity Constancy：+,-0.5%
• Cooling Rate：0.7oc~1.0oc,Min
• Interior Material：Stainless Steel Plate(SUS304)
• Exterrior Material：Baked Painting Steel or Stainless Steel (SUS304)
• Pressurized Parts：High Quality Steel Plate(Rust Proof&Plastic Spray
• Insulation Material：High Quality Glass Wool
• Transport Package：Stronge Plywood Case, Meet International Standard
• Specification：Standard and Customized
• Trademark：KOMEG
• Origin：Dongguan, China
• HS Code：90321000
• Production Capacity：1000 Sets,Year

Specifications ModelKU-504LKU-1000LKU-504SKU-1000SInner Size (D*W*H)mm800*700*9001000*1000*1000800*700*9001000*1000*1000Capacity(KW)11151618Chamber Volume(L)50410005041000PerformanceTemp range-40ºC~+150ºC-70ºC~+150ºCTemp constancy±0.5%Temp deviation≥100ºC, ±3.0ºC(at constant pressure with empty load)<100ºC, ±2.0ºC(at constant pressure with empty load)Cooling rate0.7ºC~1.0ºC/min(Overall average)Pressure rangeConstant pressure ~1kPaPressure constancyWhen ≥40kPa, ±2kPa,     4kPa~40pKa  ±0.5kPa,   when≤4kPa, ±0.1kPaDepressurization rateConstant pressure~1kPa≤30mins(Normal temp)Pressure recovery rate10kPa/Min(adjustable)MaterialExterior materialCold-rolled steel sheet(Rust proof&Plastic Spray treated)/Stainless Steel plateInterior materialStainless steel(SUS304)Pressurized partsHigh quality steel plate(Rustproof & Plastic spray treated)  Insulation materialHigh-quality glass woolCooling SystemCompressorSemi-Hermetic CompressorCooling ModeWater-cooledTemp regulating methodBalanced Temperature & Humidity Control System (BTHC)PumpRotary vane type vacuum pumpHeaterIron-chrome wire heaterSight windowCircular viewing glass incorporating heat generatorTemp SensorPt-100ControllerTouch Screen Controller  Safety DevicesOverpressure, overheat, and over current protection for compressor, over temp. protection, overload protection for the blower, Hydraulic and Water lack Protection, leakage protection, phase-lack protection, Pump failure alarmStandard AccessorySight window, Cable Port( 1 located on the left side), Baffle, Baffle frame*2  PowerAC380V/50Hz, 3Phase 5 wires+ Ground Wire. Note:
1. We reserve the right to change specifications without prior notice
2. Customized sizes and configurations available
After-sale service

If you face any problems in the future during the testing process we promise we will give you a reply within 48 hours and the solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by the customer.

Thank you for your patience and time reading the details above!!!
Your inquiry and orders will be highly appreciated.

The following technical parameters are for your expert!
