CE Marked High Frequency Electromagnetic Vibration Shaker (sine, random, shock) /Vertical Shaker
Ai Si Li (China) Test Equipment Co., Limited- Max Diameter of Workpiece：>3200mm
- Mass Scope of Workpiece：5000kg
- Type：Vibration Testing Machine
- Maxcapacity：>1000KN
- Accuracy Grade：0.5
- Load Way：Electronic Load
Base Info
- Model NO.：ES series
- Loading Method：Dynamic Load
- Display：Needle
- Control：Computer Control
- Weight：1000-2000Kg
- Power Source：AC380V
- Oil Cylinder Position：Under
- Rated Sine Force (N)：1000 to 3500000
- Rated Random Force (N：1000 to 3500000
- Rated Acceleration(M/S2)：400 to 1000
- Frequency Range (Hz)：3 to 3500
- Rated Velocity(M/S)：1.2 to 1.8
- Certificate：Ce
- Rated Displacement (P-P, mm)：25 to 51
- Power：AC220,380V
- Transport Package：Export Standard Plywood or According to Customer
- Specification：OEM
- Trademark：ASLi
- Origin：Guangdong, China
- HS Code：9024109000
- Production Capacity：50 Set Per Month
Description
Electrodynamic Vibration Shaker Test System Technical Parameters Model Rated
Sine
Force (N) Rated
Random
Force (N) Frequency
Range (Hz) Rated
Acceleration
(m/s2) Rated
Speed
(m/s) Rated
displacement
(p-p)mm Max.
Loading
(Kg) Moving
coil(Kg) Dimension of Moving coil
(mm) ES-1 1000 1000 3-3500 400 1.2 25 70 2.5 Φ150 ES-2 2000 2000 3-3500 800 1.6 25 70 2.5 Φ150 ES-2a 2000 2000 3-3500 300 1.6 40 70 8 Φ230 ES-3 3000 3000 3-3500 1000 1.6 25 100 3.5 Φ150 ES-3a 3000 3000 3-3500 400 1.6 40 120 9 Φ230 ES-6 6000 6000 3-3500 1000 1.6 25 180 6.5 Φ230 ES-6a 6000 6000 3-3500 1000 1.6 51 250 12 Φ230 ES-10 10000 10000 3-3000 1000 1.8 51 270 14 Φ240 ES-20 20000 20000 3-3000 1000 1.8 51 300 30 Φ320 ES-30 30000 30000 3-2800 1000 1.8 5l 450 40 Φ450 ES-40 40000 40000 3-2800 1000 1.8 51 500 50 Φ450 ES-50 50000 50000 3-2700 1000 1.8 51 750 50 Φ450 ES-60 60000 60000 3-2700 1000 1.8 51 750 60 Φ450 ES-100 100000 100000 3-2500 1000 1.8 51 1000 90 Φ450 ES-120 120000 120000 3-2200 1000 1.8 51 1100 90 Φ500 ES-160 160000 160000 3-2100 1000 1.8 51 1500 150 Φ600 ES-200 200000 200000 3-2000 1000 1.8 51 2500 200 Φ650 ES-350 350000 350000 3-1700 1000 1.8 51 4500 300 Φ870

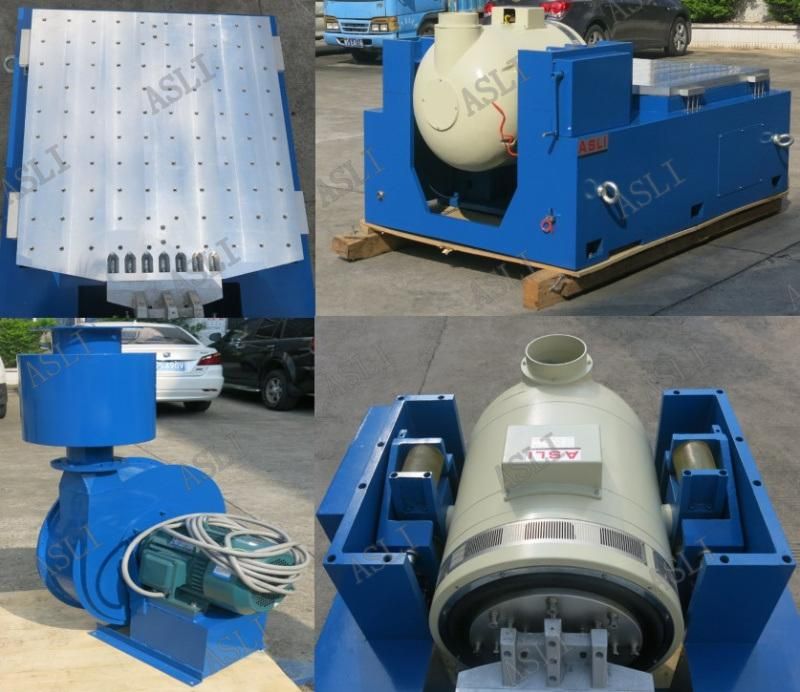

CE Marked High Frequency Vibration Shaker(sine,radom,shock) Features:
1. Well designed dynamic circle skeleton, with a higher stage axial resonance frequency.
2. Two magnetic circuit, magnetic flux leakage low, compact structure and rational.
3. Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.
4. Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.
5. Advanced technology move around the system to ensure that the dynamic circle of high reliability.
6. New duct design and enhance the cooling effect.
7. Static stiffness, dynamic stiffness of the bearing small balloon, raising the vibration table capacity,
improve low-frequency performance.
Certificate of these the machine:
China official 3rd party calibration report
CE certiification
For the package:
1. PP film first
2. Vacuum package
3. PP film again
4. 10mm thickness PU foam to avoid collision
5. stronged plywood case
6. Standard ASLI CASE MARK
Short introduction about ASLi factory:
We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine.Electrodynamic Vibration Shaker Test System is our star products , and we had obtained the CE certification for this machine .
