Lubricating Grease Cone Needle Penetrometer by ASTM D217 and ASTM D1321

Chongqing Advanced Technology Co., Ltd.
  • After-sales Service：Response in 12 Hours
  • Warranty：1 Year
  • Test Standard：ASTM D217 and ASTM D1321
  • Test Method：Cone and Needle Penetration
  • Measuring Range：(0~600)Penetration
  • Timing Device：5 S, 8 S, 10 S, 12 S, 30 S, and 60 S

Base Info

  • Model NO.：P-1C
  • Standard Needle：50mm,2.5g±0.05g
  • Standard Cone：102.5±0.05 G
  • Power Supply：AC (220 ± 10%) V, 50Hz
  • Power Consumption：200W
  • Dimension：260mm×400mm×640mm
  • Application：Lubricating Grease,Wax and Aspahlt Testing
  • Weight：16kg
  • Timing Accuracy：±0.1 S
  • Material of Water Bath：Hard Glass Chamber
  • Penetration Resolution：0.01mm
  • Operation：Manual
  • Transport Package：Plywood Case
  • Specification：Small
  • Trademark：AI
  • Origin：China
  • HS Code：9031809090
  • Production Capacity：50 Sets,Month

Description

NoItemUnitQtyRemark1Grease workerSet1 2Bimetal thermometer and holderPiece1 3Standard needle--By Table 1 configuration---- 4Weight--By Table 1 configuration---- 5Sample dish--By Table 1 configuration---- 6Mercury thermometer--By Table 1 configuration---- 7Cone penetration sample vesselPiece1 8O type ring (Ф105×5) --Mounted on a large sample devicePiece1 9Standard ConePiece1 10Needle linkPiece1 11Glass sinksSet1 122A fuse (Ф5 × 20)Piece1 13TripodPiece1 14Magnetic stirringPiece1 15Monitor battery (LR44,1.5V button batteries, φ11.5 × thickness of 5)Grain1

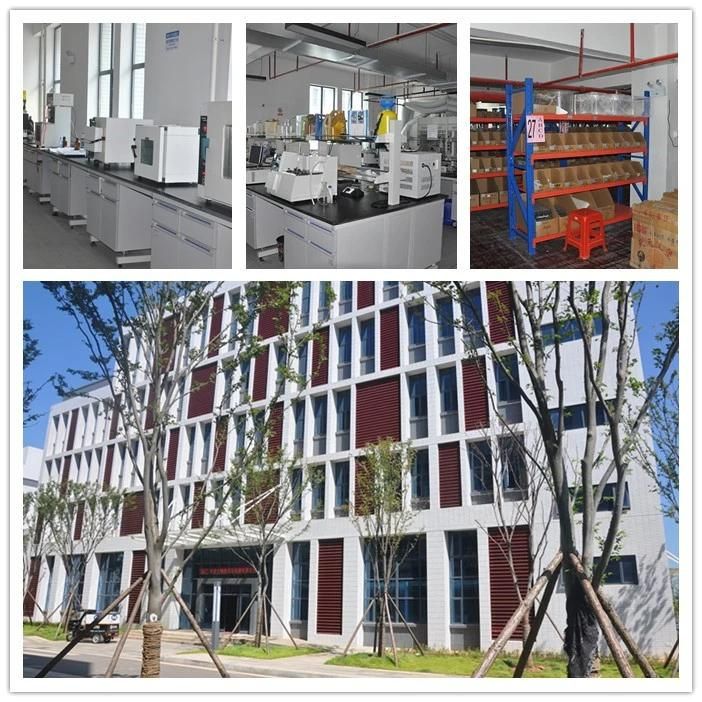

Factory overview
Lubricating Grease Cone Needle Penetrometer by ASTM D217 and ASTM D1321
Customer Feedback

Germany
Lubricating Grease Cone Needle Penetrometer by ASTM D217 and ASTM D1321
USA
Lubricating Grease Cone Needle Penetrometer by ASTM D217 and ASTM D1321
Package
Lubricating Grease Cone Needle Penetrometer by ASTM D217 and ASTM D1321
FAQ
1.What's the delivery time?
About 15 days.

2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.

3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every person.
