IEC156 80kv Transformer Oil Breakdown Voltage Tester with Printer

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • After-sales Service：1 Year

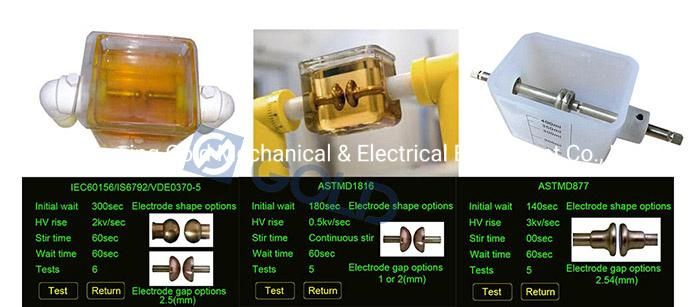

  • Test Standards：IEC156, Is6792, BS5874, ASTM D1816 , ASTM D877
  • Output Voltage：AC 0V~80kv (100kv for Choice)
  • Rate of Voltage Rise：0.5kv,S, 2kv,S, 3kv,S, 5kv,S± 5%
  • Application：Transformer Oil Breakdown Voltage Test
  • Oil Temperature Measurement Range：0°c to 70°c, or Better

Base Info

  • Model NO.：GDYJ-502A
  • Power Supply：AC220V, 50Hz,60Hz
  • Max. Test Times：9
  • Transport Package：Plywood Case
  • Specification：550 mm*500mm*580mm
  • Trademark：Gold
  • Origin：China
  • HS Code：9031809090
  • Production Capacity：1000 Sets Transformer Oil Breakdown Voltage,Month

Description

Test standardsIEC156/IS6792/BS5874,ASTMD877,ASTM D1816Power supplyAC220V±10%Output voltageAC 0V~80KV or 0~100KVRate of voltage rise0.5kv/s±10%, 2kv/s±5%, 3kv/s±5%,5kv/s±5%Max test times 9Init wait times0~999sStir time0~999sWait time 0~999sMeasurement error±(1% of full scale + 2 digits)  Resolution:0.1KVTemperature measurementMeasurement range : 0ºC to 70ºC, or better
Temperature resolution:1ºC, or betterxSize and weight460 mm*380mm*360mm,38kgOperating temperature up to 45ºC

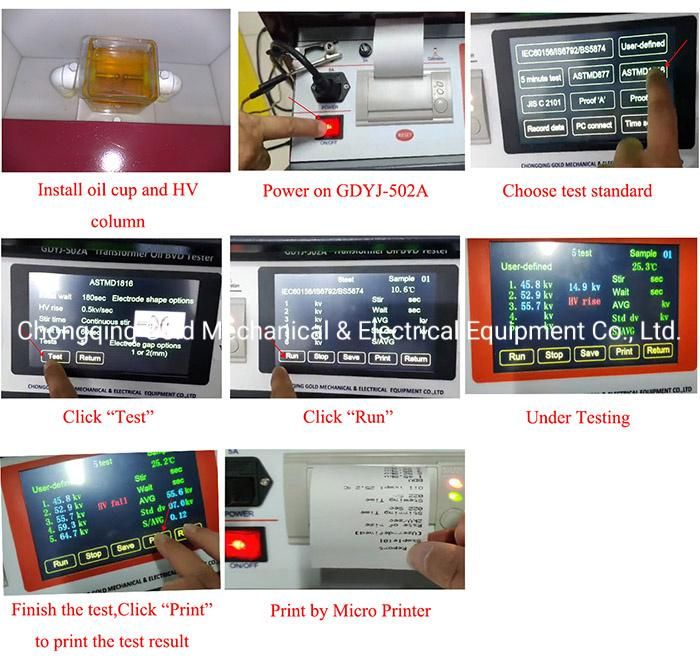

4. Testing Progress
IEC156 80kv Transformer Oil Breakdown Voltage Tester with Printer
IEC156 80kv Transformer Oil Breakdown Voltage Tester with Printer

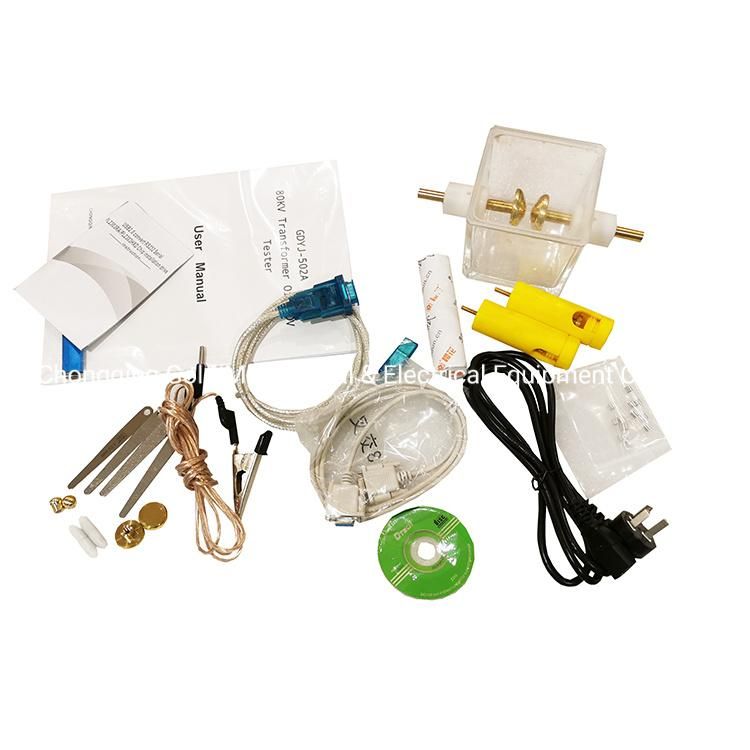

5. Spare Parts
IEC156 80kv Transformer Oil Breakdown Voltage Tester with Printer
