• Model NO.：YT-YS3000A
• Power Source：AC220V
• Dimension：350(L)×300(W)×510(H)mm
• Transport Package：Wooden Box
• Trademark：YANTE
• Origin：Hangzhou
• HS Code：9024800000

Basic Info.

Model NO. YT-YS3000A Power Source AC220V Dimension 350(L)×300(W)×510(H)mm Transport Package Wooden Box Trademark YANTE Origin Hangzhou HS Code 9024800000

Product Description

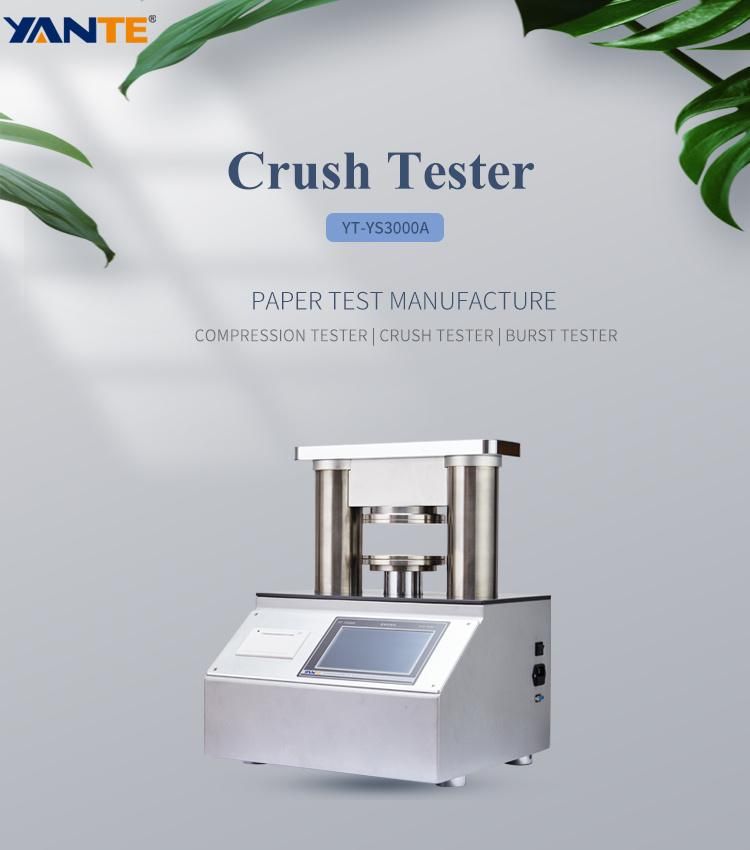

Crush Tester is an ideal auxiliary test tool for papermaking companies, cardboard manufacturers, carton manufacturers, carton users, and quality supervision and inspection departments.


Product Function

Measure corrugated base paper ring crush strength(RCT)
Measure corrugated cardboard edgewise crush strength(ECT)
Measure corrugated cardboard flat crysh strength(FCT)
Measure corrugated cardboard pin adhesion(PAT)
Measure corrugated base paper crush resistance strength(CMT)
Measure corrugated base paper edgewise compression strength(CCT)

Application Range

Paper,cardboard,paper core,base paper

Product Features

High-precision load cell, ball screw drive, dual guide shafts
ARM processor, 24-bit imported analog-to-digital converter, improve the response speed and test accuracy of the instrument.
Real-time display of the pressure change curve during the test.
Over-range automatic reset to protect the precision sensor.
Sudden power failure data storage function, data before power failure after power-on is retained and testing can be continued.
Cooperate with computer software for communication (purchased separately).


Supporting Accessories And Consumable


No.	Accessory name	Model	Picture	Standard	Optional
1	RCT Sample Cutter	YT-H152			√
2	RCT Central Panel	YT-SQ			√
3	ECT (PAT) Sample Cutter	YT-BY25			√
4	FCT Sample Cutter	YT-PY65			√
5	PAT Accessories	YT-NH23			√
6	Concora Medium Fluter	YT-CMFA			√

Executive Standard

GBT 2679.8,GBT 6546, GBT 22874,GBT 6548, GBT_2679.6
ISO 12192,ISO 3037,ISO 3035,ISO 7263,ISO 16945
TAPPI T822,TAPPI T839,TAPPI T825,TAPPI T809,TAPPI-T843


Technical Parameters

No.	Parameter item	Technical index
1	Power Supply	AC 100~240V, 50Hz/60Hz 100W
2	Working Environment	Temperature(10~35)ºC, Humidity≤ 85%
3	Display	7 inch color touch screen
4	Measuring Range	(10~3000)N,customizable(10~5000)N
5	Indication error	±0.5%(Range 5%~100%)
6	Indication resolution	0.1N
7	Indication variability	≤0.5%
8	Test speed	(12.5±1)mm/min,(1~500) mm/min adjustable
9	Parallelism of upper and lower platens	<0.02mm<>
10	Maximum distance between upper and lower platens	80mm
11	Print	Built-in thermal printer
12	Communication Interface	RS232 (default) (USB, WIFI optional)
13	Dimension	415×370×505 mm
14	Net weight	58 kg around
