• Model NO.：YT-TDY10000
• Bending Angle：7.5 or 15
• Bending Speed：3s-30s
• Print：Built-in Thermal Printer
• Communication Interface：RS232
• Dimension：310(L)*245(W)*300(H) mm
• Net Weight：13kg
• Transport Package：Wooden Box
• Trademark：YANTE
• Origin：Hangzhou China
• HS Code：9024800000

Basic Info.

Model NO. YT-TDY10000 Bending Angle 7.5 or 15 Bending Speed 3s-30s Print Built-in Thermal Printer Communication Interface RS232 Dimension 310(L)*245(W)*300(H) mm Net Weight 13kg Transport Package Wooden Box Trademark YANTE Origin Hangzhou China HS Code 9024800000

Product Description

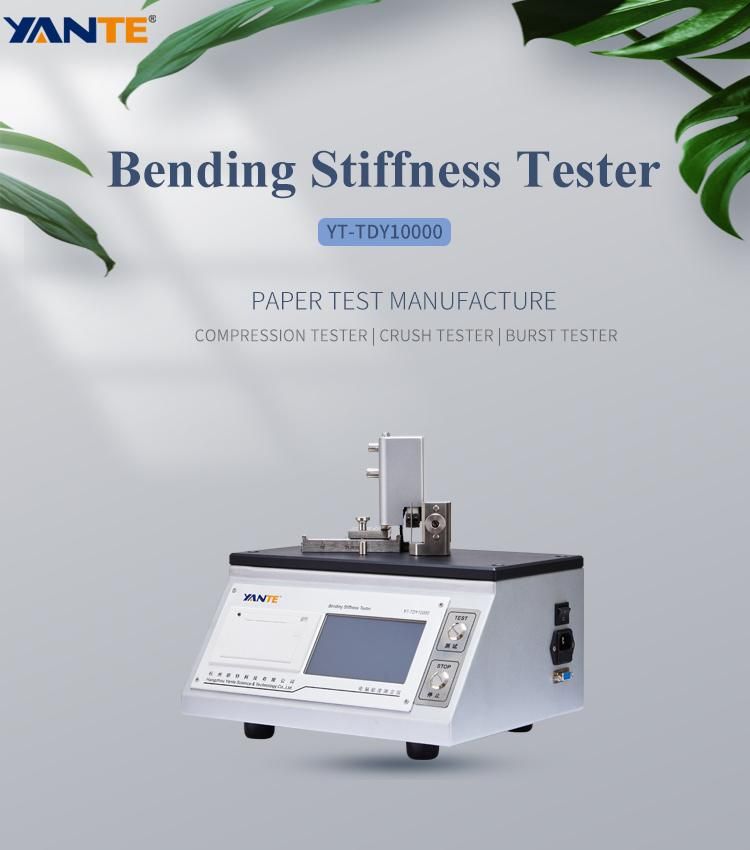

Bending Stiffness Tester is a multi-functional intelligent computerized stiffness tester, which calculates the test results intelligently and is widely used in papermaking enterprises, packaging manufacturers, quality inspection agencies and other units.


Product Features

ARM processor improves the response speed of the instrument, and calculates data accurately and quickly
Stiffness test of 7.5° and 15° (any setting between (1~90)°)
The test angle change is automatically controlled by the motor to improve the test efficiency
Adjustable test time
Automatic reset, overload protection
Communication with computer software (purchase separately)


Supporting Accessories And Consumable

No.	Accessory name	Model	Picture	Standard	Optional
1	Stiffness Sample Cutter	YT-TD23			√

Executive Standard

GB/T 23144,GB/T 22364,ISO 5628,ISO 2493


Technical Parameters


No.	Parameter item	Technical index
1	Power Supply	AC(100~240)V,(50/60)Hz 50W
2	Working Environment	Temperature(10~35)ºC, Humidity≤ 85%
3	Measuring range	15~10000 mN•m
4	Indication error	Below 50mN ±0.6mN,others ±1%
5	Indication resolution	0.1mN
6	Indication variability	±1%(Range 5%~100%)
7	Bending length	6 levels adjustable (50/25/20/15/10/5)±0.1mm
8	Bending angle	7.5°or 15°(1~90°adjustable)
9	Bending speed	3s~30s(15°adjustable)
10	Print	Built-in thermal printer
11	Communication Interface	RS232(Default) (USB, WIFI optional)
12	Dimension	315×245×300 mm
13	Net Weight	12kg around
