Universal Electronic Textile Tensile Strength Testing Machine Manufacturer

Sailham Equipment (Dongguan) Co., Ltd.
  • Certification：Ce, RoHS, FCC, ISO, SGS Certificates
  • Standard：ASTM D903, GB,T2790,2791,2792, Cns11888, JIS K6854
  • Motor Types：Servo Motor
  • Service：OEM , ODM , Non-Standard Available
  • Applications：Leather, Textile, Rubber, Tooth Mode
  • Accuracy：0.5%

Base Info

  • Model NO.：ZH-TB-500
  • Weight：70kgs
  • Fixture：Customization Available
  • Accessories：with One Standard Fixture for Tensile Strength
  • Warranty：12 Months
  • Transport Package：Wooden Case for Export
  • Specification：Customization available
  • Trademark：Sailham
  • Origin：Guangdong, China
  • HS Code：8479899990
  • Production Capacity：5000sets,Year

Description

 Capacity  500N, 1KN, 2KN, 5KN, 10KN, 20KN (optional) Units  gf, kgf, N, LBf, W, kN, T Load Resolution  1/250, 000 Load Accuracy  within ± 0.5% Maximum trip  1000mm (excluding fixture) Test   speed  (0.1-500)mm/min Outside Dimension(L× W× H)  985× 510× 1600mm  Weight 70~150kg  Power 1 phase, 220V/50HZ  Motor Servo Motor, frequency conversion motor Driver High presice ball screw AccessoryOne set of standard fixture for tension fixture, one computerFixtures typeDifferent fixture can be customized

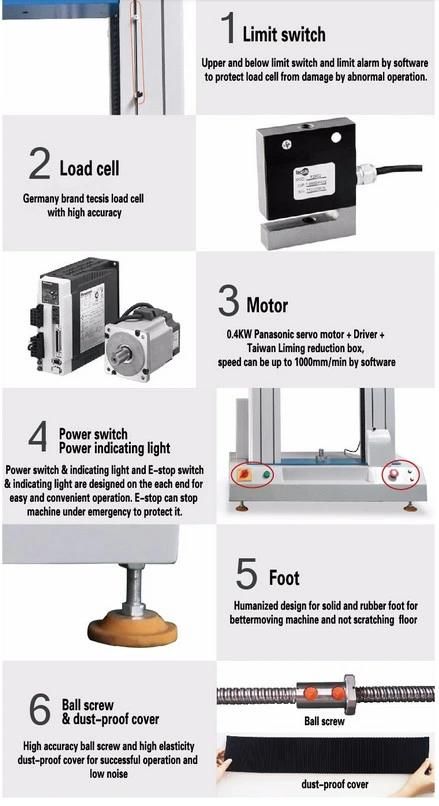

Core parts:
 Universal Electronic Textile Tensile Strength Testing Machine Manufacturer
Universal Electronic Textile Tensile Strength Testing Machine Manufacturer
Universal Electronic Textile Tensile Strength Testing Machine Manufacturer


Universal Electronic Textile Tensile Strength Testing Machine Manufacturer
