Mil-Std-810g High Frequency Vibration Shaker System for Sinusoidal Vibration Test

Ai Si Li (China) Test Equipment Co., Limited
  • After-sales Service：Lifelong Technical Service Support
  • Warranty：1 Year Free Warranty
  • Max Diameter of Workpiece：900mm
  • Mass Scope of Workpiece：1000kg
  • Type：Vibration Testing Machine
  • Maxcapacity：<1000KN

Base Info

  • Model NO.：ES-20
  • Accuracy Grade：0.5
  • Load Way：Electronic Load
  • Loading Method：Dynamic Load
  • Display：Digital
  • Control：Computer Control
  • Weight：500-1000Kg
  • Power Source：AC380V
  • Oil Cylinder Position：Under
  • Sine Force：20000n
  • Speed：1.8m,S
  • Vibration Direction：Vertical+Horizontal Vibration
  • Acceleration：100g
  • Frequency：3~3000Hz
  • Standard：Mil-Std-810g
  • Displacement：51mm
  • Moving Coil：320mm
  • Transport Package：Wooden Case
  • Specification：ES-3
  • Trademark：ASLi
  • Origin：Guangdong, China
  • HS Code：90312000
  • Production Capacity：100sets,Quarter

Description

Model

Rated Sine

Force (N)

Rated Random

Force (N)

Frequency

Range (Hz)

Rated Acceleration (m/s2)Rated Speed(m/s)

Rated displacement

(p-p)mm

Max. Loading (Kg)moving coil(Kg)

Dimension of

Moving coil(mm)

ES-1100010003-35004001.225702.5Φ150ES-2200020003-35008001.625702.5Φ150ES-2a200020003-35003001.640708Φ230ES-3300030003-350010001.6251003.5Φ150ES-3a300030003-35004001.6401209Φ230ES-6600060003-350010001.6251806.5Φ230ES-6a600060003-350010001.65125012Φ230ES-1010000100003-300010001.85127014Φ240ES-2020000200003-300010001.85130030Φ320ES-3030000300003-280010001.85l45040Φ450ES-4040000400003-280010001.85150050Φ450ES-5050000500003-270010001.85175050Φ450ES-6060000600003-270010001.85175060Φ450ES-1001000001000003-250010001.851100090Φ450ES-1201200001200003-220010001.851110090Φ500ES-1601600001600003-210010001.8511500150Φ600ES-2002000002000003-200010001.8512500200Φ650ES-3503500003500003-170010001.8514500300Φ870



Mil-Std-810g High Frequency Vibration Shaker System for Sinusoidal Vibration TestMil-Std-810g High Frequency Vibration Shaker System for Sinusoidal Vibration Test



horizontal stand features:



1. Within small loading bench to realize higher acceleration and working frequency, to improve the loading capacity and performance of whole machine bench.

2. Horizontal bench and vibration bench are integral type, with perfect structure, convenience to install and adjust.

3. Static pressure track, V-shape, with capacity of slope-resistant and bias-loading resistant.

Built-in oil pump, good structure and easy operating.





technical parameters of horizontal expander:



ModelBench Size (mm)Frequency Range (Hz)Weight of Moving Parts (kg)LT0303300×300×22
300×300×26
300×300×305-1000
5-1500
5-20006.6
7.8
9.0LT0404400×400×22
400×400×26
400×400×305-l000
5-1400
5-200011.2
13.2
16.0LT0505500×500×25
500×500×30
500×500×355-1000
5-1500
5-200019.3
23.1
27.0LT0606600×600×25
600×600×30
600×600×405-1000
5-1200
5-200027.5
33.0
45LT0707700×700×25
700×700×30
700×700×355-800
5-1000
5-150036.8
44.2
52LT0808800×800×30
800×800×40
800× 800×455-1000
5-1500
5-200057.7
76.9
86.5LT 10101000× 1000×30
1000× 1000×40
1000× 1000×505-1000
5-1300
5-150089.1
118.8
147LT 12121200× 1200×30
1200× 1200×40
1200× 1200×505-800
5-1100
5-1400126
168
210





vertical extended-bench features:



VT vertical extended-bench and specified clamps, precision calculated, elaborate design, to ensure the customer acquired the best performance according to perfect structure, high quality material

and workmanship.





technical parameters of vertical expander:



ModelWeight (kg)Max. Frequency (Hz)Bench SizeVT300102000Φ300VT400162000Φ400VT500251500Φ500VT600351000Φ600VT0303152000300×300VT0404221500400×400VT050530500500×500VT060658350600×600VT0808140350800×800VTl0101803501000×1000VT12122503501200 × 1200VT1212 (Round bench)220350Φ1200

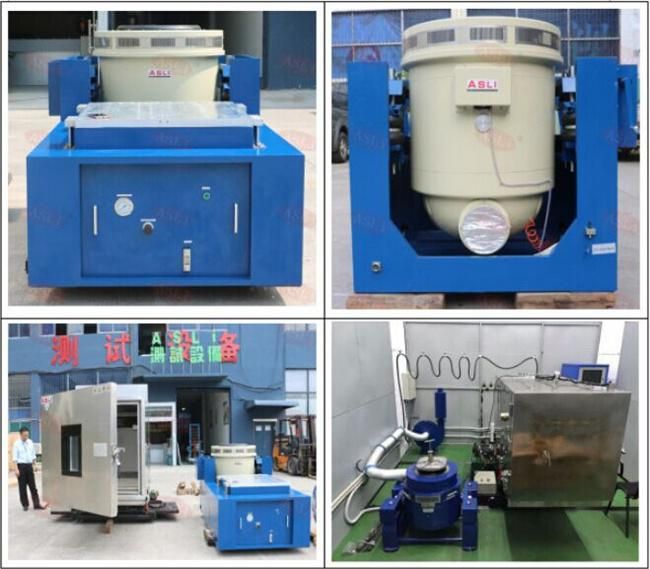

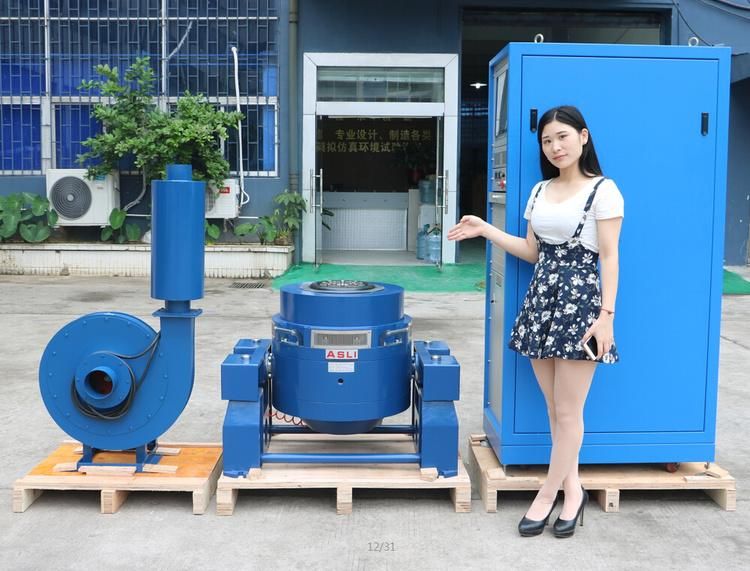

More pictures for reference:

Mil-Std-810g High Frequency Vibration Shaker System for Sinusoidal Vibration Test


For more information regarding MIL-STD-810G High Frequency Vibration Shaker System for Sinusoidal Vibration Test, Welcome to contact us!
