• Model NO.：YSA-3
• Loading Method：N,a
• Display：Digital
• Control：Controller
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：N,a
• Internal Size(W*H*D)：100*540*260mm, 3 Sets
• Temp.Range：Rt. +10c ~+98c
• Temp.Constancy：+,- 0.3c
• Temp.Resolution：+,- 0.1c
• Material：Stainless Steel
• Insulation：PU&Fiberglass Wool
• Heating：Chrome Steel Strip Wire Heater
• Controller：Digital Electronic Indicators Controller
• Warranty：12 Months
• Application：Aging Testing
• Transport Package：Strong Wood Carton
• Specification：Standard size
• Trademark：Yuanyao
• Origin：Dongguan, China(Mainland)
• HS Code：9032100000
• Production Capacity：50sets,Week Steam Aging Tseter

ModelYSA-3YSA-4Test basket.W×H×D(mm)100×540×260,3Sets100×540×260,4SetsExternal Dim.W×H×D(mm)610×540×340760×540×340PerformanceTemp.RangeR.T+10°C ~ +98°CTemp.Constancy±0.3°CTemp.Resolution±0.1°CHeat-up(min)45MaterialExteriorSUS#304 stainless steel piateInteriorSUS#304 stainless steel piateInsulationPU & Fiberglass woolSystemsHeatingChrome Steel Strip Wire HeaterControllerDigital electronic indicators controller+S.S.R.With P.I.D & timer max 9,990minsSafety DevicesOverheating prevention pretector,
Water shortage protector, steam outlet hole, no fuse breakerPower Source(K.W.)AC 1Ψ 220V 60/50Hz1.12.5
Customers visit

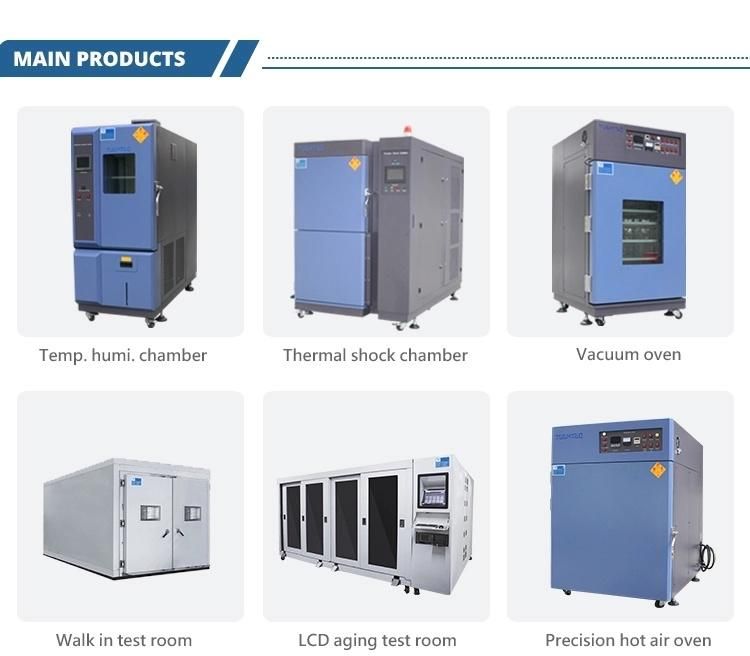

If Except Stainless steel made 3 baskets type Vapor aging oven, Dongguan Yuanyao Electronics Technology Co., Ltd also can supply:

Precision Oven Tester, Triple Type Temp. & Humidity Chamber, Temp. & Humidity Control Host, Air

Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test

Room, Temp. Humidity &Vibration Combined Test Chamber, Aging Oven Tester, Rain/Spray Test

Chamber, Burn-in test equipment, Dust Tester, Vibration Tester, Tensile Tester, Drop Tester and so on

Welcome to inquire!
