Climatic Simulation Temperature Humidity Walk-in Humidity Chamber Manufacturer
Ai Si Li (China) Test Equipment Co., Limited- After-sales Service：Lifelong Technical Service Support
- Power Supply：AC 380V, 3 Phase 5 Lines
- Certification：CE, TUV, ISO
- Warranty：1 Year
- Internal Dimension：W2000*H2000*D2000mm
- Humidity Range(Optional)：20%~98%R.H.
Base Info
- Model NO.：THR-8000-E
- Temperature Range：-70~+150 Degree C
- Temp. Rising Speed：0.1~3.0degree C,Min
- Temp.Falling Speed：0.1~1.5degree C,Min
- Analytic Accuracy：0.1degree C; 0.1% R.H
- Uniformity：+,-2.5degree C; +,-3.5% R.H.
- Control Accuracy：+,-0.5degree C; +,-2.5% R.H.
- Cooling System：Water Cooling
- Compressor：Germany Bizer Brand
- Transport Package：Wooden Case
- Specification：THR-8000-F
- Trademark：ASLi
- Origin：Guangdong, China
- HS Code：85141910
- Production Capacity：300 Sets,Month
Description
Walk in Temperature Humidity Chamber Technical Parameters Model THR-volume (low-temperature options : A ~ F) Inner Dimensions(cm) Customers designated space size and design Temperature Range Low Temperature(A:25degree C B:0degree C C:-20degree C D:-40degree C E:-60degree C F:-70degree C ) High Temperature 80degree C
(80degree C ~150degree C is optional) Humidity Range 20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is a special optional condition, need dehumidifier) Indication Resolution/
Distribution Uniformity of
Temperature & Humidity 0.1degree C ; 0.1% R.H/±2.5degree C ; ±3.5% R.H. Control Accuracy of
Temperature and Humidity ±0.5degree C ; ±2.5% R.H. Temperature Rising/
Falling Velocity Temperature rising approx. 0.1~3.0°C/min;
temperature falling approx. 0.1~1.0°C/min;
( The Falling Velocity Min.1.0°C /min is a optional) Cooling System Water cooled Protection Devices Fuse-free switch, overloading protection switch for compressor,high and
low voltage coolant protection switch, over-humidity & over-temperature protection
switch, fuses, fault warning system, water short storage warning protection Optional Accessories Slope for cart , Recorder, Water Purifier, Dehumidifier Compressor French Tecumseh Brand, Germany Bizer Brand Power AC 380 V(±10%),50/60HZ ,3 phase 5 Lines

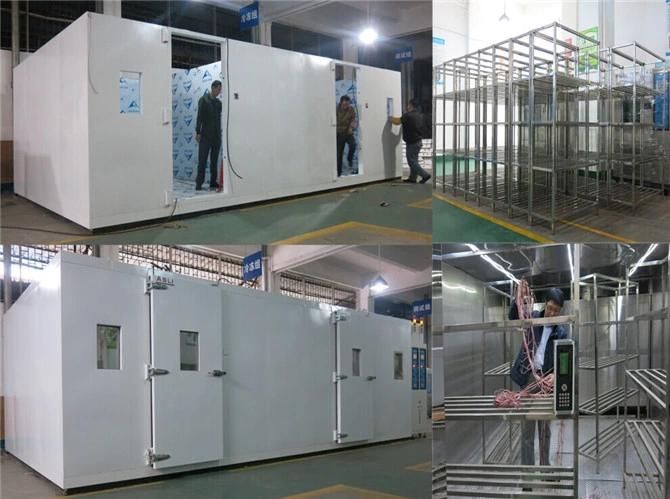

Climatic Temperature Humidity Test Room Pictures:
(80degree C ~150degree C is optional)
Distribution Uniformity of
Temperature & Humidity
Temperature and Humidity
Falling Velocity
temperature falling approx. 0.1~1.0°C/min;
( The Falling Velocity Min.1.0°C /min is a optional)
low voltage coolant protection switch, over-humidity & over-temperature protection
switch, fuses, fault warning system, water short storage warning protection

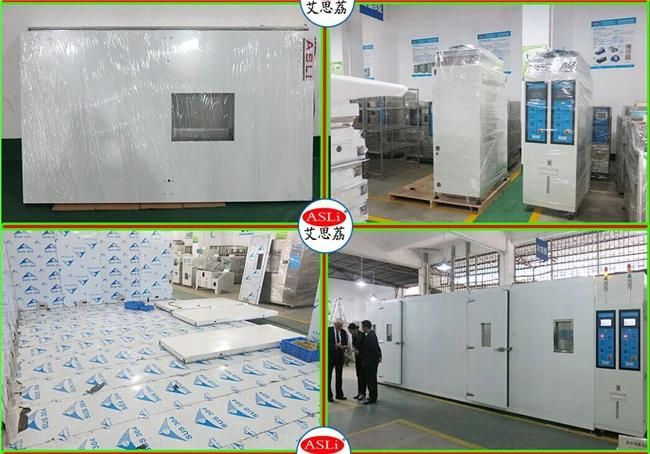

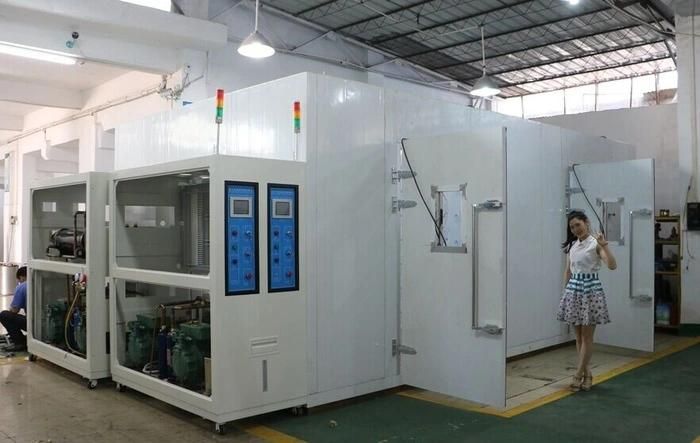

Climatic Temperature Humidity Test Room Pictures:

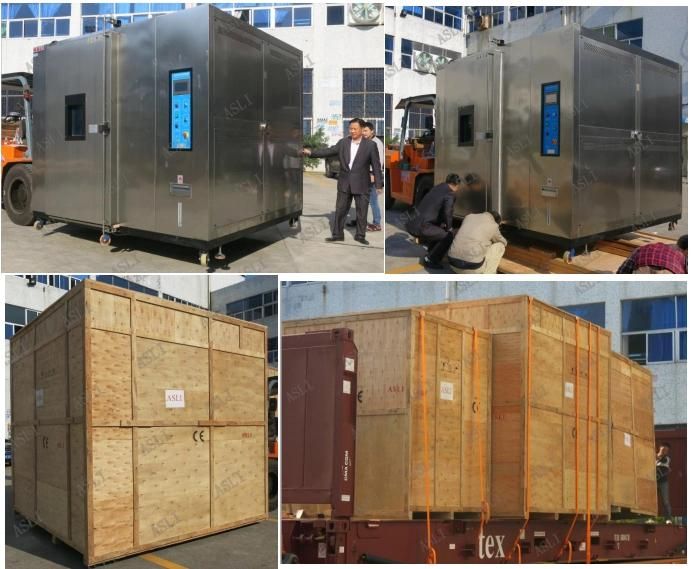

Package: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.
Short introduction about ASLi factory:
We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine. Climatic Simulation Temperature Humidity Walk In Test House Manufacturer is our star products , and we had obtained the CE certification for this machine .
Exhibition:
