• Model NO.：TTR-I
• Test Object：Transformer, CT, PT
• Reference Standards：IEC76-1 and IEC60044
• Ratio Measurement Range：1-10000
• Group Measurement：1-12
• Test Voltage：0-80V
• Length of Test Cable：8 Meters
• Communication Port：USB
• Data Outtput Method：Micro Printer Printing
• Dimension：40cm*35cm*20cm
• Weight：7kg
• Power Supply：220V, 50Hz or as Request
• Transport Package：Turns Ratio Meter Packed in Veneer Case
• Specification：400mm*350mm*200 mm, 7kg
• Trademark：Delta
• Origin：China Mainland
• HS Code：9031809090
• Production Capacity：1000 Sets , Month

Basic Info.

Model NO. TTR-I Test Object Transformer, CT, PT Reference Standards IEC76-1 and IEC60044 Ratio Measurement Range 1-10000 Group Measurement 1-12 Test Voltage 0-80V Length of Test Cable 8 Meters Communication Port USB Data Outtput Method Micro Printer Printing Dimension 40cm*35cm*20cm Weight 7kg Power Supply 220V, 50Hz or as Request Transport Package Turns Ratio Meter Packed in Veneer Case Specification 400mm*350mm*200 mm, 7kg Trademark Delta Origin China Mainland HS Code 9031809090 Production Capacity 1000 Sets / Month

Product Description

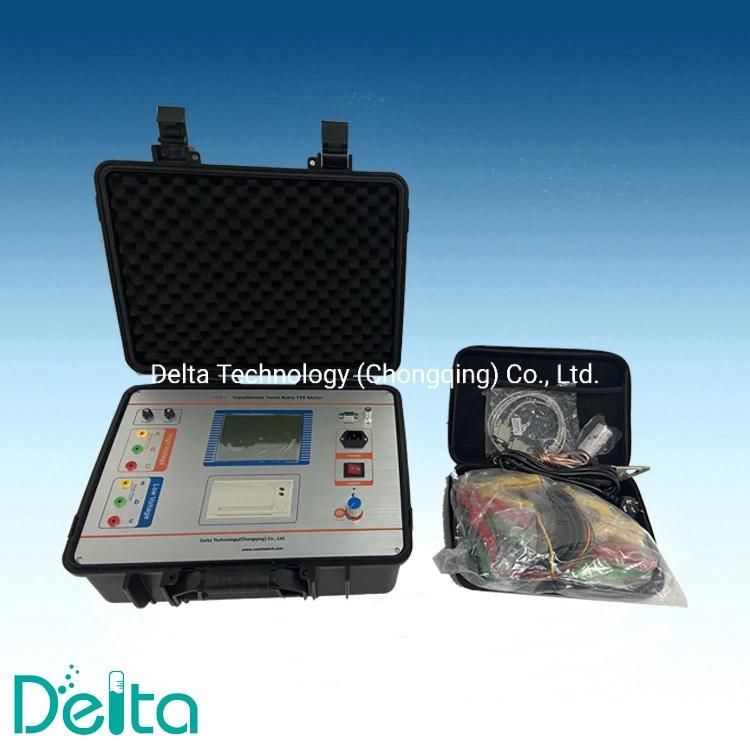

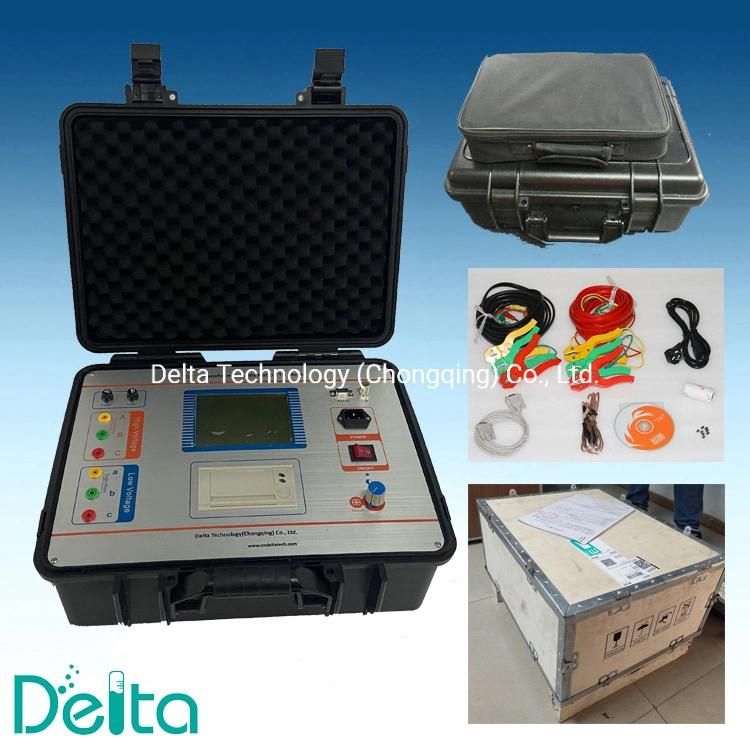

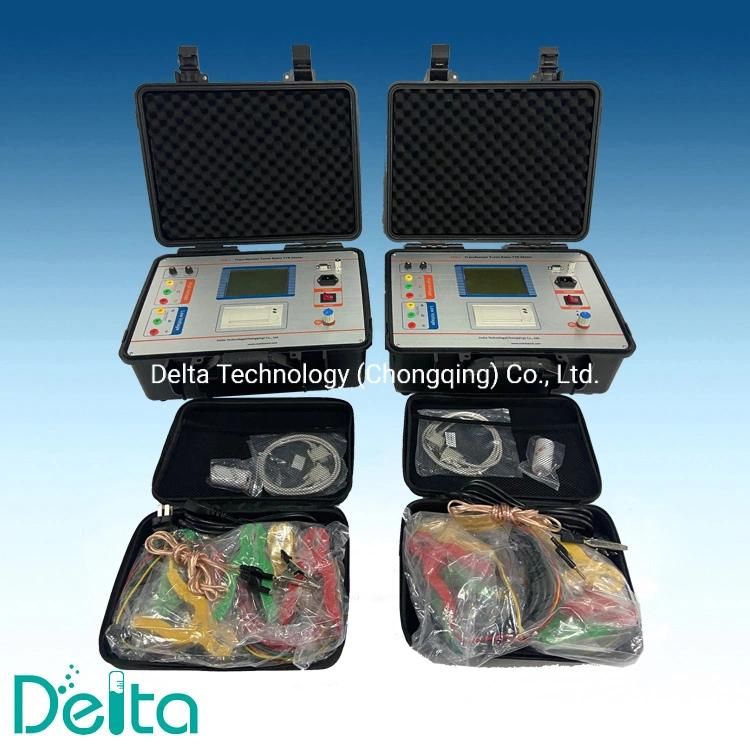

TTR-I IEC Standard Fully Automatic Transformer Turns Ratio Meter

Introduction:
1. TTR-I IEC Standard Automatic Transformer Turns Ratio Meter is designed according to IEC76-1 and IEC60044.
2. TTR-I IEC Standard Automatic Transformer Turns Ratio Meter can be applied to test the turns ratio and group vector of single or three phase transformer.
3. The connection group of three phase transformer also can be calculated with the ratio.
4. All parameters can be measured in one test for three phase transformer.

Main functions:
1. The voltage ratio measurement of three or singe phase transformer.2. The group vector measurement of three phase transformer.3. The polarity measurement of single phase transformer or CT/PT.4. Voltage ratio error calculation. 5. Voltage ratio range calculation of three phase transformer.6. Current transformer ratio measurement.7. Excitation current measurement in ratio testing.8. Reproduce AC test voltage from power source to reduce effects of bad power source. 9. Save the test results in the memory internal the tester.10. Print the test results by micro printer.11. Reverse connection detect unit to prevent the high voltage injected to the operate. 12. Over current protection in test voltage.13. Upload the test results to make word report by RS232 interface.

Main Parameters:

No.	Item Name	TTR-I IEC Standard Automatic Transformer Turns Ratio Meter
1	Ratio measurement range	1-10000
2	Group measurement	1-12
3	Phase measurement error	1 degree
4	Ratio measurement error	1-2000 ± 0.2%RDG   2000-10000  ± 0.5%RDG
5	Test voltage	AC 0~80V continuously, frequency 50Hz
6	Power supply	AC220V ± 10%, 50Hz/60Hz
7	Working environment	0-50°C, ≤85%RH
9	Size	400mm*350mm*200 mm
10	Weight	7kg
11	Length of test cables	8 meters
