• Model NO.：HT-KZZL550
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Top
• Material：Stainless Steel
• Transport Package：Standard Wooden Package
• Specification：710*450*1200mm
• Trademark：Honest
• Origin：Henan, China
• Production Capacity：300sets ,Month

Basic Info.

Model NO. HT-KZZL550 Loading Method Dynamic Load Display Digital Control Computer Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Top Material Stainless Steel Transport Package Standard Wooden Package Specification 710*450*1200mm Trademark Honest Origin Henan, China Production Capacity 300sets /Month

Product Description

Mask Breathing Resistance Tester Machine Product Description:
The large-screen liquid crystal display mask breathing resistance tester is used to measure the inhalation resistance and exhalation resistance of respirator and mask protective equipment under specified conditions. It is suitable for relevant inspection and inspection of quality masks, colleges, scientific research units, and mask manufacturers on ordinary masks, dust masks, medical masks, and smog masks.
1. The instrument is composed of a gas source with adjustable flow rate, a human head model specified by the standard, two inspiratory and expiratory tube systems, and a respiratory resistance measurement system.
2. The flow sensor has high sensitivity and a very small initial flow.
3. The flow sensor chip uses a thermal mass flow meter, without temperature and pressure compensation, ensuring high-precision measurement of the sensor.
The flowmeter range is 0 L / min ~ 100L / min, and the accuracy is ± 2%.
4. Multiple sensors are integrated on a single flow sensor chip, which greatly improves the range ratio of the sensor.
5. The flow sensor has high zero-point stability, full-range high stability, full-range high accuracy and excellent repeatability, and features low power consumption, low pressure loss and fast response speed.
6. The data recorder adopts graphic dot matrix LCD with a resolution of 128 × 64, full Chinese interface, and easy operation.
7. There is 4M memory in the data logger for measurement value recording.
8. The micromanometer sensor adopts two-wire system, with high precision and good stability; it is safe and reliable to use explosion-proof design.
9. The range of the micro-pressure gauge sensor is continuously adjustable outside the zero point, the damping is adjustable, there is no mechanical movable part, and the maintenance workload is small.
The micro-pressure measuring range is -1000Pa ~ 1000Pa, and the accuracy is 1Pa.10. The whole instrument adopts special pneumatic circuit conversion elements, which ensures the convenient and fast conversion of exhalation and inhalation system.11.Apply the latest national standard requirements, compatible with labor protection masks and daily protection masks standards.
Technical Parameter:

Model	HT-KZZL550
Flow parameters	85mL/min
Pressure	+-1500Pa 0.1Pa
Power Supply	AC220V,50Hz
Accuracy	±2%
Micro-pressure measuring range	-1000Pa~1000Pa
Accuracy	1Pa
Use air source	2~6Kg
Dimension	710*450*1200mm
Weight	50kg

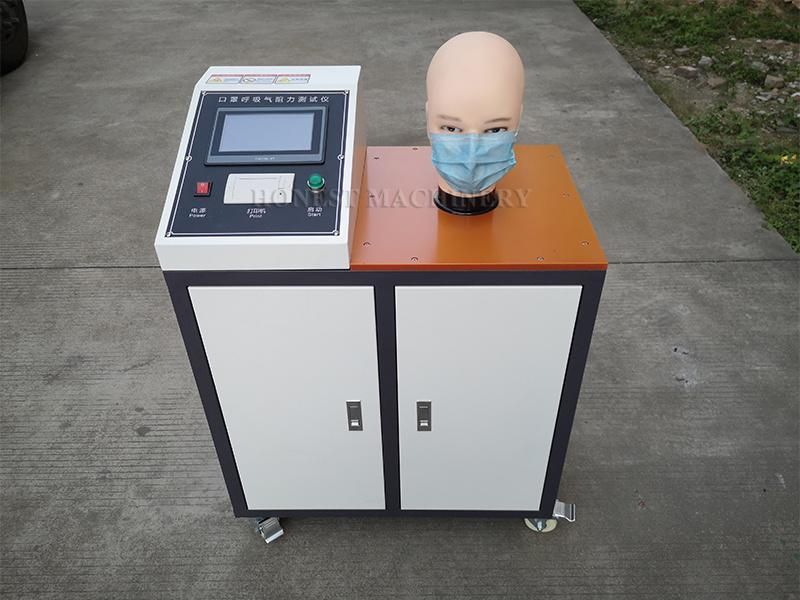

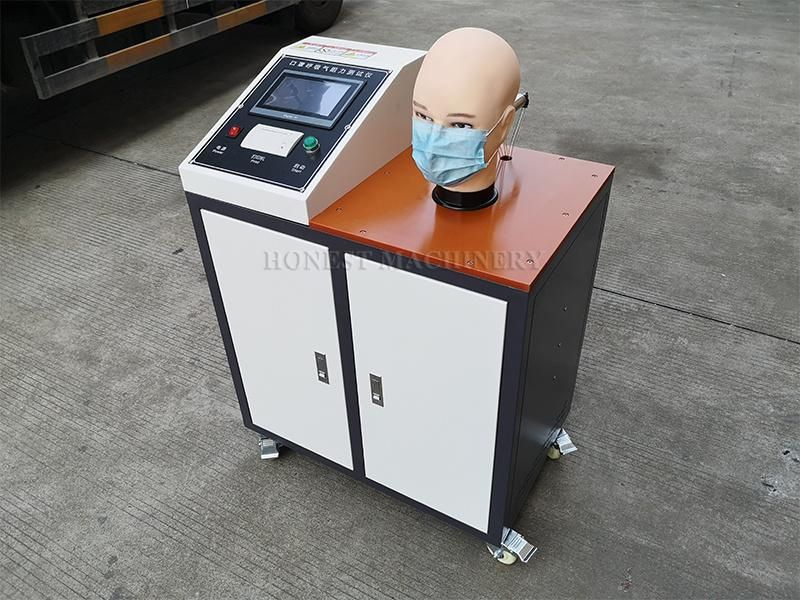

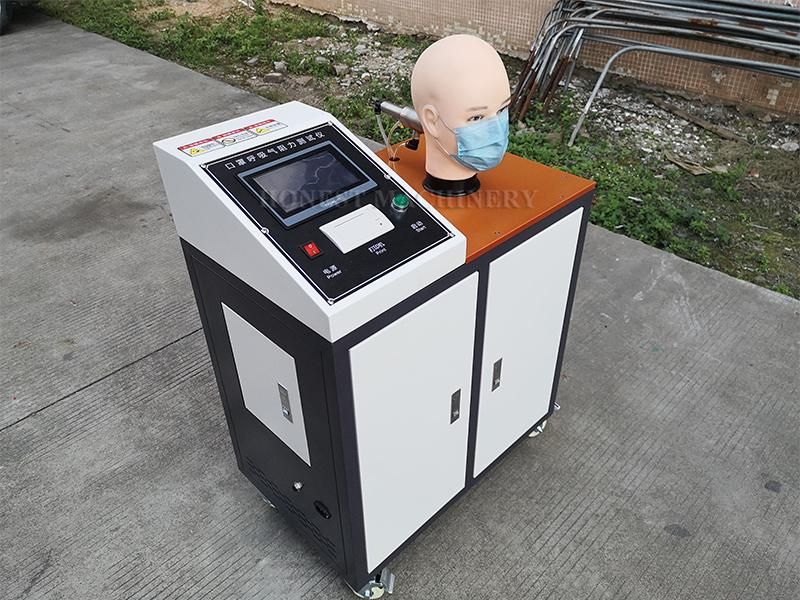

Product Pictures:



Company Certificate:

Our Customer:

Contact us:
