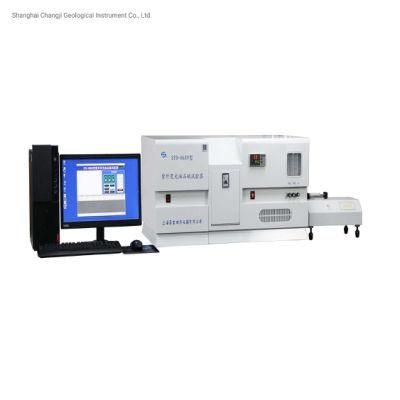

ASTM D5453 Ultraviolet Fluorescence Sulfur-in-Oil Analyzer
Shanghai Changji Geological Instrument Co., Ltd.- Power supply：220V AC
- power consumption：less than 1500W
- Measure range：(0.2-8000)mg,L
- Host Dimension：310mmx460mmx;400mm
- Temp controller：550mmx460mmx400mm
- Standard：ASTM D5453
Base Info
- Model NO.：SYD-0689
- Application：oil
- Transport Package：by Carton or by Wooden Case
- Specification：310mmx460mmx400mm
- Trademark：SHANGYI
- Origin：China
- HS Code：9021809000
- Production Capacity：1000 Sets,Month
Description
I.Product Description
1.SummaryThis instrument is used to determine the total sulfur content by ultraviolet fluorescence method.It Improves the ability of anti-jamming and avoids the complicated operation of titration pool and factors of instability which used Coulometry. So the sensitivity of the instrument is greatly improved. The key components of the system adopt imported components to protect the detector light leakage and steam leakage and makes the machine has a reliable guarantee. Standards:SH/T 0689-2000, ASTM D 5453 -2006.
2. Main technical features
2.1.It adopts computer control technology, automatically finish data acquisition, processing, storage and printing. The linear range of the test is wide, the anti-interference ability is strong, the operation is simple, and the result is stable and reliable.
2.2.It adopts imported fluorescence excitation source, film dryer, filter and metal package photomultiplier tube, which has high sensitivity, fast speed, stability, high precision and good consistency.
2.3.The advanced temperature control system is adopted, which has two-stage heating and inner winding tubular electric furnace. The heating is fast and stable, and the instrument has long service life. The temperature control accuracy in the full temperature control range can reach ± 5 ºC, which meets the requirements of the test.
2.4.It can be used not only to test the sulfur of solid and liquid samples, but also the sulfur of gas samples.
2.5.Adopting the integrated desk structure design, the heating furnace and controller form a complete whole, novel and beautiful.There are few test samples and the test time is fast. The test time of each sample is about 2 minutes.
3. Main technical specifications
3.1. Power supply:AC(220±10%)V,50Hz;
3.2. Total power consumption:≤1500W;
3.3. Sample injection quantity:Solid:(1~20)mg; Liquid:(5~20)μL; Gas:(1~5)mL;
3.4. Measure range:(0.2~8000)mg/L;
3.5. Temperature controlling range:room temperature~1050ºC;
3.6. Temperature controlling accuracy: ±3ºC;
4.Full Set list
| NO. | Name | Units | Q'ty | Remarks |
| 1 | Sulfur analyzer host | Set | 1 | |
| 2 | Temperature flow controller | Set | 1 | |
| 3 | Liquid sample injector | Set | 1 | |
| 4 | Sulfur standard sample | Box | 1 | +10 |
| 5 | Silicone rubber pad | pcs | 10 | |
| 6 | Silicone rubber tube | cm | 20 | |
| 7 | Rubber tube | m | 10 | |
| 8 | Thermocouple | pcs | 1 | |
| 9 | 25ul Micro injector | pcs | 4 | +6 |
| 10 | Communication line | pcs | 1 | |
| 11 | Quartz tube * | pcs | 1 | +1 |
| 12 | Instructions for use | pcs | 1 | |
| 13 | Product certification | pcs | 1 | |
| 14 | Lenovo Computer | set | 1 | |
| 15 | printers | set | 1 | |
| 16 | Membrane dryer | pcs | 1 | |
| 17 | UV lamp | pcs | 1 | |
| 18 | PMT | set | 1 | |
| 19 | Filter | set | 1 | |
| 20 | ||||
| 21 | ||||
| 22 |

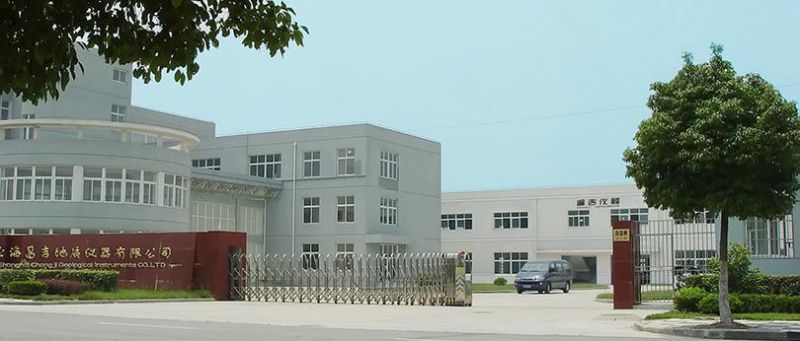

II.Ccompany Profile
Shanghai Changji Geological Instrument Co.,Ltd is established in 1998,the former is Shanghai Geological Instrument Factory under the Ministry of the National Geology and Mineral Resource.
Changji has four major series and more than 200 types products: more 140 types petroleum instruments,more 60 types highway instruments,each 10 types for laboratory instruments,Rotary viscosity instruments and geological instruments.Also we develop and produce more than 30 kinds of non-standard instruments according to the clients' special requirements each year.It depends on the complete category products,strong matching capacity and fast development ability,its products are not only widely used in China,but also sold and welcomed in 20 countries.
The highway instrument three major index:penetrometer,ductility tester and softening point tester.Changji's products are with the advanced technical features and fit the ISO, ASTM, IP, GB and other international standards.Recent years,we develop smart instruments with the communication port to realize the remote control, transmitting test parameters and networking management of Laboratory equipments. Changji pays more attentions to develop and invest in the technology innovation.So far,we have gotten the China National Invention Patent 1,the No. ZL 2005 1 0024291.9;Utility Model Patent 2,the No.ZL 2004 2 0023460.8 and ZL 2013 2 0365490.6.Other two national innovation patents and two ulility model patents are in the process of the official investigation.Changji's products become more and more stabilization and elegant after many years development and research.So selecting Changji,you choose the precipitation of time and satisfication.

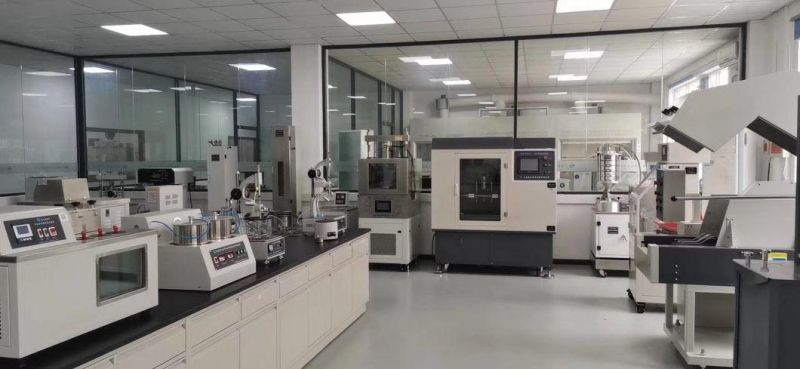

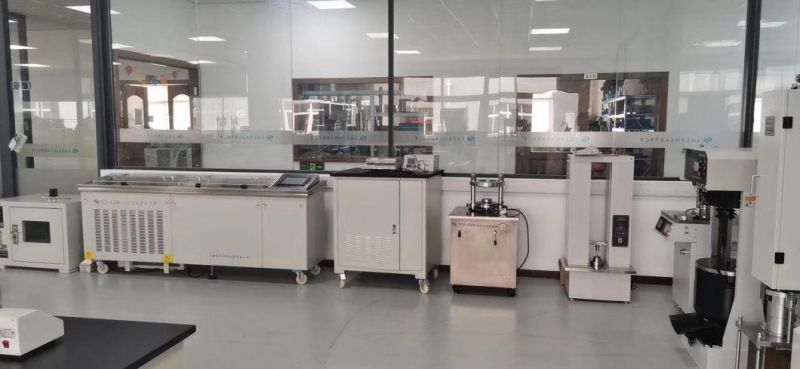

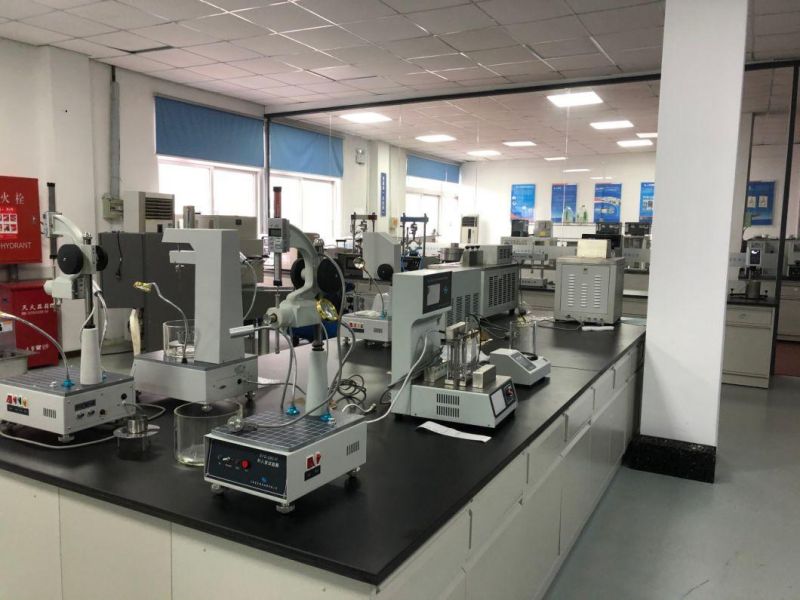

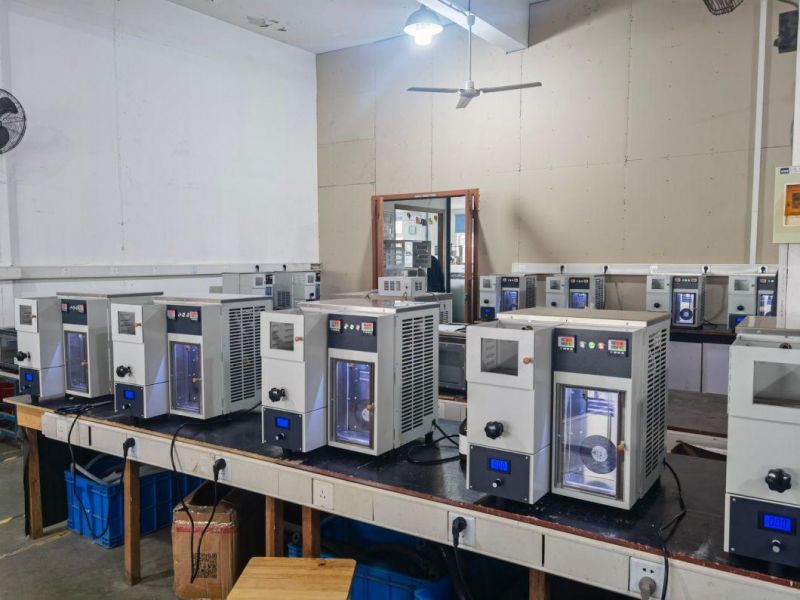

III. Show Room

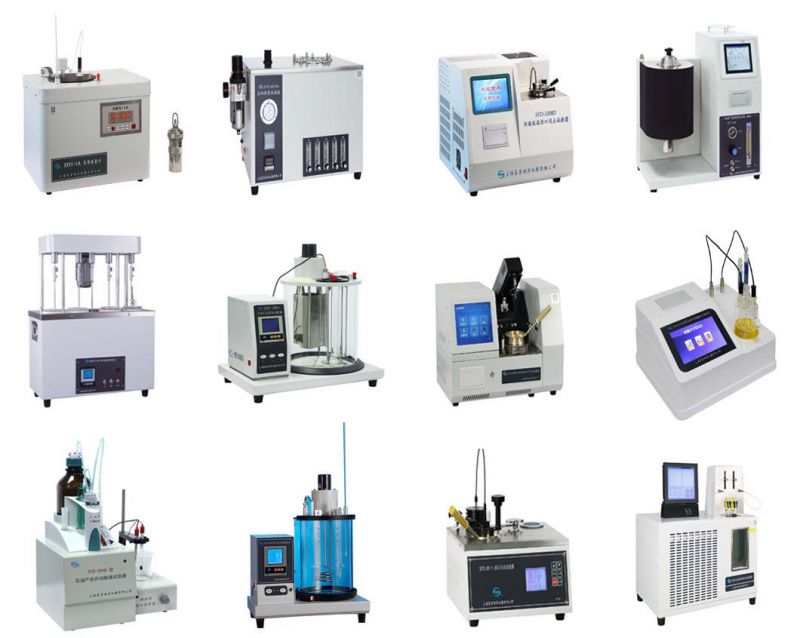

V. Hot Products
VI. FAQ
1. Are your products competitive?
Sure, we are leading manufacturers in China with more than 30 years' experience and professional team, we can guarantee high quality, provide training and good after-sales service.
2. How can I choose the right one for me?
You can contact us by email, online or other ways with detailed requirements, we will recommend right one accordingly.
3. What if I have difficulty in using the instrument?
Pls contact us any time when you have difficulty in using the instruments, we will provide equipment operation manual, operation video and so on. We can also provide training acoordingly.
4. When can I receive the goods?
Ordinary non customized models will be delivered within 7 working days. The transportation time is determined by the logistics company, and the general transportation time is 5-7 days.
5. How to deliver?
For domestic customers, we usually provide door-to-door service. For customers overseas, we usually deliver the instruments to the designated places.
6. How about the packing ?
Wooden cases or hard boxes are used to prevent possible damage during transportation of the instruments.
7.How about the warranty?
Usually warranty is 12 months.

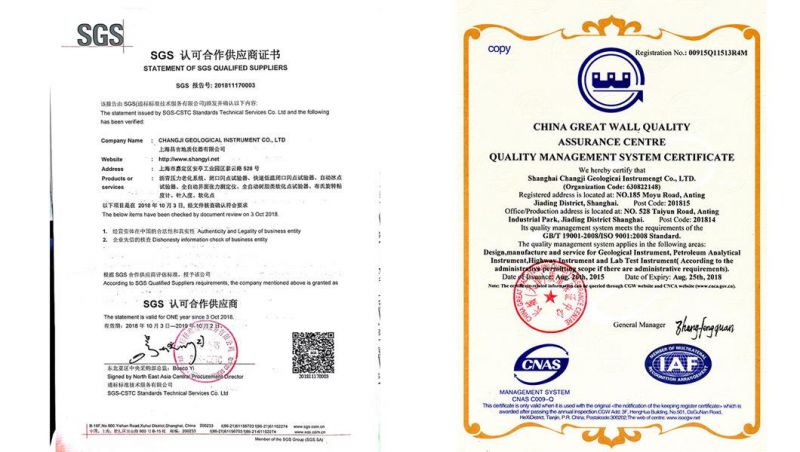

VII. Certificate
